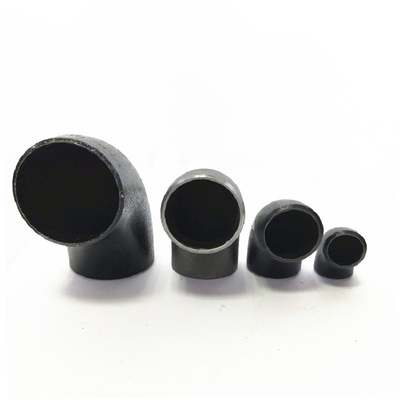

Carbon Steel A234wpb 45/60/90/180 Butt Welding Lr Sr Pipe Fitting Elbow
ASTM A234 WPB ELBOW is a common grade for 90 degree long radius elbow, which is one of the highly demanded. They available in a large size and thickness range. They have a good performance and suffices most industrial pipeline needs.
ASTM A234 WPB ELBOW is used to be installed between two lengths of pipe or tube allowing a change of 90 degree direction,usually these elbows distinguished by connection ends, The ends may be machined for butt welding , threaded , or socketed , so the elbows are consist of butt weld,thread elbow.socket elbow and other series.the material is selected according to the application use such as high temperature use,sanitary fitting,regular industrial use etc.
Dimensions for Carbon Steel A234wpb 45/60/90/180 Butt Welding Lr Sr Pipe Fitting Elbow
| NPS | O.D. D |
90° Long Rad Center to End A |
45° Long Rad Center to End B |
90° 3D Center to End A |
45° 3D Center to End B |
| 1/2 | 21.3 | 38 | 16 | / | / |
| 3/4 | 26.7 | 38 | 19 | 57 | 24 |
| 1 | 33.4 | 38 | 22 | 76 | 31 |
| 1.1/4 | 42.2 | 48 | 25 | 95 | 39 |
| 1.1/2 | 48.3 | 57 | 29 | 114 | 47 |
| 2 | 60.3 | 76 | 35 | 152 | 63 |
| 2.1/2 | 73 | 95 | 44 | 190 | 79 |
| 3 | 88.9 | 114 | 51 | 229 | 95 |
| 3.1/2 | 101.6 | 133 | 57 | 267 | 111 |
| 4 | 114.3 | 152 | 64 | 305 | 127 |
| 5 | 141.3 | 190 | 79 | 381 | 157 |
| 6 | 168.3 | 229 | 95 | 457 | 189 |
| 8 | 219.1 | 305 | 127 | 610 | 252 |
| 10 | 273 | 381 | 159 | 762 | 316 |
| 12 | 323.8 | 457 | 190 | 914 | 378 |
| 14 | 355.6 | 533 | 222 | 1067 | 441 |
| 16 | 406.4 | 610 | 254 | 1219 | 505 |
| 18 | 457 | 686 | 286 | 1372 | 568 |
| 20 | 508 | 762 | 318 | 1524 | 632 |
| 22 | 559 | 838 | 343 | 1676 | 694 |
| 24 | 610 | 914 | 381 | 1829 | 757 |
| 26 | 660 | 991 | 406 | 1981 | 821 |
| 28 | 711 | 1067 | 438 | 2134 | 883 |
| 30 | 762 | 1143 | 470 | 2286 | 946 |
| 32 | 813 | 1219 | 502 | 2438 | 1010 |
| 34 | 864 | 1295 | 533 | 2591 | 1073 |
| 36 | 914 | 1372 | 565 | 2743 | 1135 |
| 38 | 965 | 1448 | 600 | 2896 | 1200 |
| 40 | 1016 | 1524 | 632 | 3048 | 1264 |
| 42 | 1067 | 1600 | 660 | 3200 | 1326 |
| 44 | 1118 | 1676 | 695 | 3353 | 1389 |
| 46 | 1168 | 1753 | 727 | 3505 | 1453 |
| 48 | 1219 | 1829 | 759 | 3658 | 1516 |
Elbow Specifications
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimensions : ANSI/ASME B16.9, B16.28, MSS-SP-43.
Size : Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″)
Form : Pipe Elbow, 45 Deg Elbow, 90 Deg Elbow, 180 Deg Elbow, Long Radius Elbow, Short Radius Elbow, 1D Elbow, 3D Elbow, 5D Elbow, Seamless Elbow, Welded Elbow
Material:Stainless Steel: ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
Carbon Steel: ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
Alloy Steel: ASTM A234 / WP5/ WP9/ WP11/ WP22/ WP91
SIZE:
1/2″ N. B. TO 24″ N. B. Seamless Pipe Fittings(BW)
1/2″ N. B. TO 72″ N. B. Welded BW
Marking:Standard/ As per request
Packing: Wooden case(Fumigation free) Or as per request
Inspection: In house and third party
