Product Details:
|
| Surface: | Black Paint | Technique: | LSAW |
|---|---|---|---|
| Length: | As Request,2-12m Random Or Fixed | Standard: | ASTM, GB, API, DIN, JIS、API 5L |
| Diameter: | 219mm-3020mm | WT: | 4mm - 45mm, Etc |
| High Light: | SCH40 500mm Diameter Pipe,P110 500mm Diameter Pipe,SCH40 LSAW Steel Pipe |
||
Ss400/Q235/Q195/S235 /S265jr/L245/L265 Carbon Welded LSAW Steel Pipe
LSAW Pipe (Longitudinal Submerged Arc-Welding Pipe), also called SAWL pipe. It is taking the steel plate as raw material, mold it by the molding machine, then do double-sided submerged arc welding. Through this process the LSAW steel pipe will get excellent ductility, weld toughness, uniformity, plasticity and great sealing.
| Type | ERW/LSAW/SSAW/Seamless |
| Standard | API SPEC 5L GB/T9711.1 GB/T9711.2 |
| material | J55,K55,N80,L80,C90,C95,P110,etc |
| OD | 457.2mm-1422.4mm |
| WT |
SCH5,SCH10,SCH20,SCH40,SCH60,SCH80,SCH100,SCH120, SCH160,XXS,0.8-19mm |
| Usage |
carbon steel pipe applies to boiler,Structure Use, water transport, Building, Machinery, Traffic, Oil development and so on |
| Length | 2-12m Random,5.8M FIXED,6M FIXED,9M FIXED,11.8M |
| Surface | Black paint ,Galvanized as rusty protect, capped ends |
| Packing | According to your request. |
| Shipment |
In bundles, shipped in 20 or 40 feet containers, break bulk vessel acc to QTY and discharge port |
| Ends | 2"below plain ends,2" above beveled ends, threaded ends available |
| Method |
140mm below cold drawn,140mm above hot rolled, 273mm above hot expand |
Chemical of LSAW Steel Pipe
| C | Si | Mn | P | S | Cr | Ni | Mo | Cu | V |
| ≤0.30 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.08 |

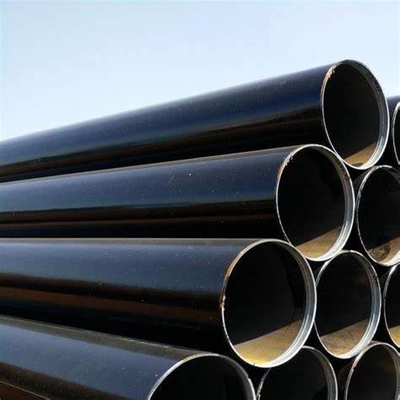

Products Show
