Product Details:
|
| Certification: | SGS,CE,ISO | Grade Group: | A53-A369 |
|---|---|---|---|
| Material: | Q195/Q215/Q235/Q345/S235JR/S275JR/S355JR | Surface: | Customers't Requirement |
| Application: | Oil Gas | Thickness: | 2 - 30 Mm |
| Alloy Or Not: | Non-alloy | Outer Diameter(round): | 21.3 - 1219.2 Mm |
| High Light: | En 10219 ERW Steel Pipe,ASTM A500 ERW Steel Pipe,2mm ERW Steel Pipe |
||
En 10219 ASTM A500 Welded ERW Steel Pipe
Product Description
| Outer diameter | ERW / HFW | LSAW / DSAW | SSAW / HSAW | RHS | SHS |
| 1/8 - 20 inch (10.3 - 508 mm) |
12 - 56 inch (323.8 - 1,420 mm) |
8 - 126 inch (219.1 - 3,200 mm) |
40 x 20 mm - 1,000 x 800 mm |
15 x 15 mm - 1,000 × 1,000 mm |
|
| Wall thickness | 0.4 - 16 mm | 6.0 - 40 mm | 6.0 - 26 mm | 1.0 - 30 mm | 0.6 - 30 mm |
| Length | 5.8 ~ 12.0 m or upon customers' requirements | ||||
| Standard | GB/T 3091, GB/T 13793, ASTM A252, ASTM A53, ASTM A500, EN 10210, EN 10219, API 5L, DIN 1626/1615, DIN 17120, etc. |
||||
| Grade | SS400, Q235, Q345, Q460, A572 Gr.50, A572 Gr.60, S235, S275, S355, Grade A/B, X42, X52, X60, X70, etc. |
||||
| Surface | Prime quality (bared, oiled, color paint, 3LPE, or other anti-corrosive treatment) | ||||
| Inspection | With Chemical Composition and Mechanical Properties Analysis; Dimensional and Visual Inspection, also with Nondestructive Inspection. |
||||
| Application | structure, electric power transmission tower projects, piling, water, oil & gas pipeline engineering, mechanical industry, municipal projects, roads and its auxiliary facilities, etc. | ||||
| Packing | Standard export, in bulk / bundles / nylon fabric bags with seaworthy packing; or according to customers' requestments. |
||||
| Delivery Time | 1. 20-45 days after received deposit or confirmed L/C 2. Depends on your oder quantity |
||||
| Payment Terms | 1. T/T: 30% T/T advance, 70% balance copy of B/L 2. L/C: at sight 3. T/T and L/C: 30% T/T advance, 70% L/C |
||||
| Port |
Tianjin |
||||
ERW steel pipe is widely used in various fields
ERW(electric resistance welded ) steel pipe is one of the most versatile tools in the industry. However, ERW pipes are only one of the numerous types of pipe available. It is important to know the differences between each type of pipe so that the right pipe can be chosen.
Rolled and welded pipe is made from sections of steel plate, rolled into cans. The seam of the can is welded and then individual cans are welded together to make the finished pipe. Rolled and welded pipe can be made in diameters of up to 16 feet and over 2.0 inches in thickness.
Spiralweld pipe, like ERW pipe, is also manufactured from steel coil. The difference is the coil is wound at an angle, so the weld runs around the outside of the pipe in the shape of a helix. This allows for a lot more variation in diameter and thickness than ERW pipe. Spiralweld pipe is most commonly used for pipe diameters between 24 in. and 120 in. and for thicknesses of 1.0 in. or less.
In contrast, an ERW pipe is made by rolling metal and then heating the two edges with electricity so they form a weld down its length. This forms a “seam,” differentiating it from a seamless pipe.
Advantages of ERW steel pipe
There are no fusion metals used during the manufacturing process. This means that the pipe is extremely strong and durable.
The weld seam cannot be seen or felt. This is a major difference when looking at the double submerged arc welding process, which creates an obvious welded bead that might need to be eliminated.
With the advances in high-frequency electric currents for welding, the process is far easier and safer.

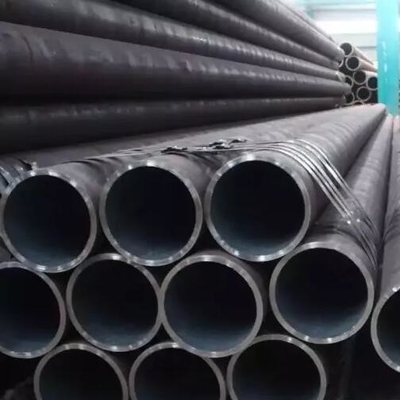

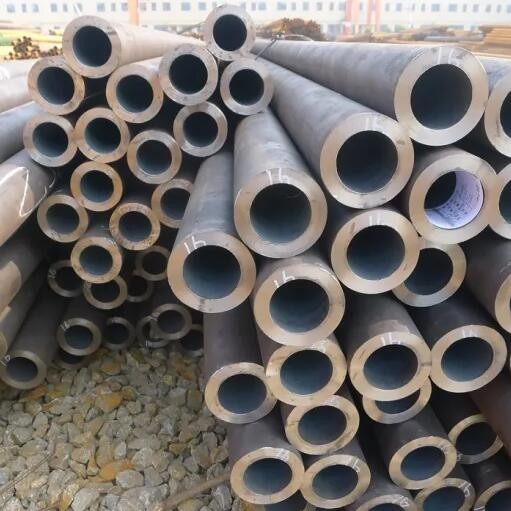

Detailed photos
