Product Details:
|
| Material: | Carbon Steel | Shape: | Reducing |
|---|---|---|---|
| Connection: | Weld | Technics: | Forged |
| Type: | Tee | Size: | 1/2''-48" |
| Surface Treatment: | Painting | Color: | Black |
| High Light: | SGS reducing tee pipe fitting,ansi b16.9 reducing tee fitting |
||
ANSI B16.9 Seamless Butt Weld Reducing Forged Carbon Steel Pipe Fittings Tee
|
Size
|
12", 14", 16", 18", 20", 22", 24", 26", 30", 36", 40", 42", 48", Other (Please describe in Notes) |
|---|---|
|
Wall Thickness
|
0.375", 0.500", 0.625", 0.688", 0.750", 1.000", 1.125", 1.250", Other (Please describe in Notes) |
|
Branch Pipe Size
|
12", 14", 16", 18", 20", 22", 24", 26", 30", 36", 40", 42", Other (Please describe in Notes) |
|
Branch Pipe Wall Thickness
|
0.375", 0.500", 0.625", 0.688", 0.750", 1.000", Other (Please describe in Notes) |
|
Material
|
WPB, Y42, Y52, Y60, Y65, Y70, WPL6, Other (Please describe in Notes) |
In diameters ranging from 12″ to 48″ and in various thicknesses up to 2″, Steel Forgings creates industry leading quality butt weld tees from materials that meet a multitude of requirements. Our high-quality tees connect three pipe sections, with one connector perpendicular to the other two. With smooth internal and external surfaces and minimal impediments thanks to a skillful buttweld, pipe flow is unimpeded.
Butt Weld Reducing Tee Dimensions
| Nominal Pipe Size | Outside diameter at bevel |
Center-to-End | |||
|---|---|---|---|---|---|
| Run | Outlet | Run | Outlet | Run (C) | Outlet (M) |
| 1/2″ | 1/4″ 3/8″ |
21.3 | 13.7 17.3 |
25 | 25 |
| 3/4″ | 3/8″ 1/2″ |
26.7 | 17.3 21.3 |
29 | 29 |
| 1″ | 1/2″ 3/4″ |
33.4 | 21.3 26.7 |
38 | 38 |
| 1 1/4″ | 1/2″ 3/4″ 1″ |
42.2 | 21.3 26.7 33.4 |
48 | 48 |
| 1 1/2″ | 1/2″ 3/4″ 1″ 1 1/4″ |
48.3 | 21.3 26.7 33.4 42.2 |
57 | 57 |
| 2″ | 3/4″ 1″ 1 1/4″ 1 1/2″ |
60.3 | 26.7 33.4 42.2 48.3 |
64 | 44 51 57 60 |
| 2 1/2″ | 1″ 1 1/4″ 1 1/2″ 2″ |
73.0 | 33.4 42.2 48.3 60.3 |
76 | 57 64 67 70 |
| 3″ | 1 1/4″ 1 1/2″ 2″ 2 1/2″ |
88.9 | 42.2 48.3 60.3 73.0 |
86 | 70 73 76 83 |
| 3 1/2″ | 1 1/2″ 2″ 2 1/2″ 3″ |
101.6 | 48.3 60.3 73.0 88.9 |
95 | 79 83 89 92 |
| 4″ | 1 1/2″ 2″ 2 1/2″ 3″ 3 1/2″ |
114.3 | 48.3 60.3 73.0 88.9 101.6 |
105 | 86 89 95 98 102 |
| 5″ | 2″ 2 1/2″ 3″ 3 1/2″ 4″ |
141.3 | 60.3 73.0 88.9 101.6 114.3 |
124 | 105 108 111 114 117 |
| 6″ | 2 1/2″ 3″ 3 1/2″ 4″ 5 |
168.3 | 73.0 88.9 101.6 114.3 141.3 |
143 | 121 124 127 130 137 |
| 8″ | 3 1/2″ 4″ 5″ 6″ |
219.1 | 101.6 114.3 141.3 168.3 |
178 | 152 156 162 168 |
| 10″ | 4″ 5″ 6″ 8″ |
273.0 | 114.3 141.3 168.3 219.1 |
216 | 184 191 194 203 |
| 12″ | 5″ 6″ 8″ 10″ |
323.8 | 141.3 168.3 219.1 273.0 |
254 | 216 219 229 241 |
| 14″ | 6″ 8″ 10″ 12″ |
355.6 | 168.3 219.1 273.0 323.8 |
279 | 238 248 257 270 |
| 16″ | 6″ 8″ 10″ 12″ 14″ |
406.4 | 168.3 219.1 273.0 323.8 355.6 |
305 | 264 273 283 295 305 |
| 18″ | 8″ 10″ 12″ 14″ 16″ |
457.0 | 219.1 273.0 323.8 355.6 406.4 |
343 | 298 308 321 330 330 |
| 20″ | 8″ 10″ 12″ 14″ 16″ 18″ |
508.0 | 219.1 273.0 323.8 355.6 406.4 457.0 |
381 | 324 333 346 356 356 368 |
| 22″ | 10″ 12″ 14″ 16″ 18″ 20″ |
559.0 | 273.0 323.8 355.6 406.4 457.0 508.0 |
419 | 359 371 381 381 394 406 |
| 24″ | 10″ 12″ 14″ 16″ 18″ 20″ 22″ |
610.0 | 273.0 323.8 355.6 406.4 457.0 508.0 559.0 |
432 | 384 397 406 406 419 432 432 |

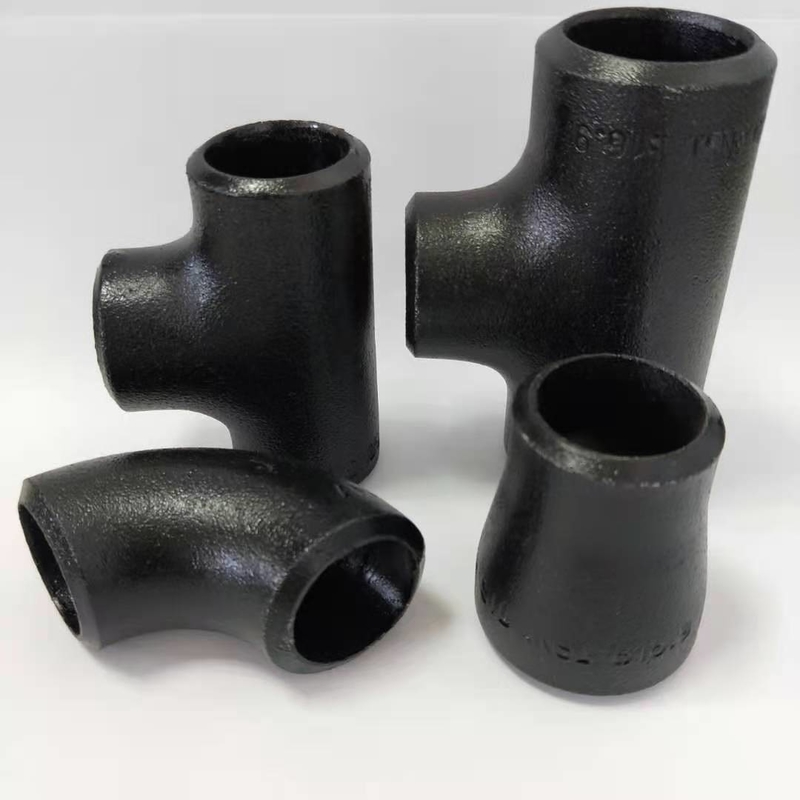

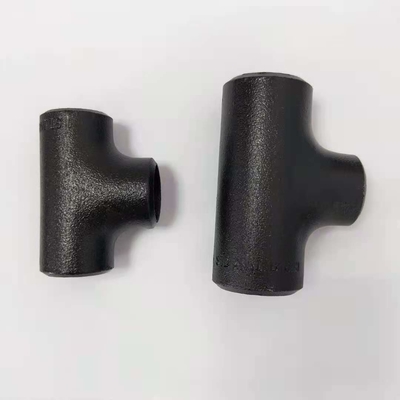

Product Show
