Product Details:
|
| Port: | China | Type: | Seamless |
|---|---|---|---|
| Usage: | Water Supply | Joint Type: | Welded |
| Section Shape: | Round | Customized: | Non-Customized |
| Surface: | Bare, Black, Lightly Oiled, Hot DIP Galvanized, | Specification: | 1/8" TO 24" |
| High Light: | ERW mild steel seamless pipe,ERW black mild steel pipe,1/8" Mild Steel Seamless Pipe |
||

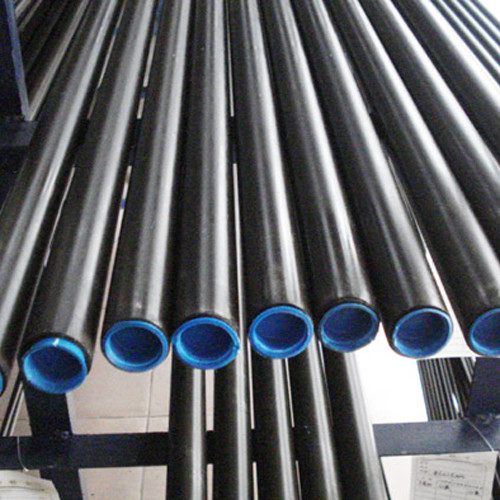

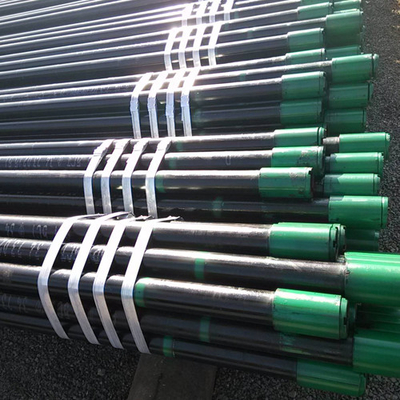

Cold Rolled Black ERW Weld Mild Carbon Steel Seamless Pipe
HIGH QUALITY SEAMLESS PSL1 AND PSL2 STEEL PIPES
Standard: API 5L/ ASME B36.1M
Steel Grade:A53 Gr/A106 GR.A GR.B
Size and OD: 1/8"-24"(10.3mm-610mm)
Wall Thickness: SCH10... STD,SCH40,SCH80...SCH160,XS,XXS.
| Standard | Steel Grade | Chemical Components | Machanical Property | ||||||||
| C | Mn | Cr | Mo | P | S | Ni | Cu | Tensile Strength (Mpa) | Yield Strength(Mpa) | ||
| API Spec 5L PLS1 | B | ≤0.28 | ≤1.20 | ≤0.50 | ≤0.15 | ≤0.030 | ≤0.030 | ≤0.50 | ≤0.50 | ≥415 | ≥245 |
| X42 | ≤0.28 | ≤1.30 | ≤0.50 | ≤0.15 | ≤0.030 | ≤0.030 | ≤0.50 | ≤0.50 | ≥415 | ≥290 | |
| X46 | ≤0.28 | ≤1.40 | ≤0.50 | ≤0.15 | ≤0.030 | ≤0.030 | ≤0.50 | ≤0.50 | ≥435 | ≥320 | |
| X52 | ≤0.28 | ≤1.40 | ≤0.50 | ≤0.15 | ≤0.030 | ≤0.030 | ≤0.50 | ≤0.50 | ≥460 | ≥360 | |
| X56 | ≤0.28 | ≤1.40 | ≤0.50 | ≤0.15 | ≤0.030 | ≤0.030 | ≤0.50 | ≤0.50 | ≥490 | ≥390 | |
| X60 | ≤0.28 | ≤1.40 | ≤0.50 | ≤0.15 | ≤0.030 | ≤0.030 | ≤0.50 | ≤0.50 | ≥520 | ≥415 | |
| X65 | ≤0.28 | ≤1.40 | ≤0.50 | ≤0.15 | ≤0.030 | ≤0.030 | ≤0.50 | ≤0.50 | ≥535 | ≥450 | |
| X70 | ≤0.28 | ≤1.40 | ≤0.50 | ≤0.15 | ≤0.030 | ≤0.030 | ≤0.50 | ≤0.50 | ≥570 | ≥485 | |
| Standard | Steel Grade | Chemical Components | Machanical Property | ||||||||
| C | Mn | Cr | Mo | P | S | Ni | Cu | Tensile Strength (Mpa) | Yield Strength(Mpa) | ||
| API Spec 5L PLS2 | BN | ≤0.24 | ≤1.20 | ≤0.30 | ≤0.15 | 0.025 | 0.015 | ≤0.30 | ≤0.50 | 415-655 | 245-450 |
| X42N | ≤0.24 | ≤1.20 | ≤0.30 | ≤0.15 | 0.025 | 0.015 | ≤0.30 | ≤0.50 | 415-655 | 290-495 | |
| X46N | ≤0.24 | ≤1.40 | ≤0.30 | ≤0.15 | 0.025 | 0.015 | ≤0.30 | ≤0.50 | 435-655 | 320-525 | |
| X52N | ≤0.24 | ≤1.40 | ≤0.30 | ≤0.15 | 0.025 | 0.015 | ≤0.30 | ≤0.50 | 460-760 | 360-530 | |
| X56N | ≤0.24 | ≤1.40 | ≤0.30 | ≤0.15 | 0.025 | 0.015 | ≤0.30 | ≤0.50 | 490-760 | 390-545 | |
| X60N | ≤0.24 | ≤1.40 | ≤0.50 | ≤0.50 | 0.025 | 0.015 | ≤0.50 | ≤0.50 | 520-760 | 415-565 | |
| X65Q | ≤0.18 | ≤1.70 | ≤0.50 | ≤0.50 | 0.025 | 0.015 | ≤0.50 | ≤0.50 | 535-760 | 450-600 | |
| X70Q | ≤0.18 | ≤1.80 | ≤0.50 | ≤0.50 | 0.025 | 0.015 | ≤0.50 | ≤0.50 | 570-760 | 485-635 | |
| ASTM A53 /A106 Chemical Components and Machanical Property | |||||||||||||
| Standard | Steel Grade | Chemical Components | Machanical Property | ||||||||||
| C | Mn | P | S | Cu | Ni | Cr | Mo | V | Tensile Strength (Mpa) | Yield Strength(Mpa) | Elongation (Mpa) | ||
| ASTM A53 | A | ≤0.25 | ≤0.95 | ≤0.05 | ≤0.045 | ≤0.40 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.08 | ≥330 | ≥205 | ≥29.5 |
| B | ≤0.30 | ≤1.20 | ≤0.05 | ≤0.045 | ≤0.40 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.08 | ≥415 | ≥240 | ≥29.5 | |
| Standard | Steel Grade | Chemical Components | Machanical Property | ||||||||||
| C | Si | Mn | P | S | Cu ,Ni | Cr | Mo | V | Tensile Strength (Mpa) | Yield Strength(Mpa) | Elongation (Mpa) | ||
| ASTM A106 | B | ≤0.30 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.08 | ≥415 | ≥240 | ≥30 |
| C | ≤0.35 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.08 | ≥485 | ≥275 | ≥30 | |
FAQ:
Q: What is the Raw material ?
A: 100% virgin raw material.
Q: What is your MOQ?
A: As customers' requests.
Q: why choose us?
A: We are a professional manufacturer with competitive price, good quality and fast delivery time.
Q: How to buy the product?
A: Send email to me, we will reply to you within one day.
Q: Can you make special Design and logo on product?
A: Yes, very easy.
