Product Details:
|
| Radius: | 5D | HS Code: | 730793 |
|---|---|---|---|
| Wall Thickness: | Sch40 | Material: | Carbon Steel |
| Product Name: | WPHY 65 45 Degree 5D Carbon Steel U Pipe Fitting Bend | Certification: | ASTM |
| Size: | 1/2" | Technics: | Pushing |
| High Light: | ASTM u 45 Degree Pipe Bend,5d 45 Degree Pipe Bend,5d pipe bend 45 degree |
||
WPHY 65 45 Degree 5D Carbon Steel U Pipe Fitting Bend
According to the specifications of the pipe, select the good response ring, and make the hydraulic system in a state of preparation;Put the pipe in place, measure the bending point, clamp the clamp, start the water supply valve, and check the cooling water jet;
After confirming that the above items are normal, the induction power is applied.When the pipe is heated to a proper bending temperature by induction heating, open the feed oil circuit of the hydraulic cylinder for pushing bending
Observe and check the bending condition, stop the hydraulic cylinder immediately after completing the bending degree, and stop the induction power on at the same time. Turn off the cooling water, loosen the fastening fixture, or repeat the above steps for continuous bending, or remove the pipe fitting bend.
Product Detailes
| O.D. | Seamless: From 1/2" up to 24" DN15-DN600 Welded: From 26" up to 80" DN650-DN2000 |
| W.T. | Sch10, Sch20, Sch30, Sch40, STD, Sch80, XS, Sch120, Sch160, XXS |
| Bending Radius (R) | R=3D 4D 5D 6D 7D 8D 9D 10D. |
| Bending angle (θ ) | 15o 30o 45o 60o 90o 135o180o, and also could manufacture according to the angles given by the clients. |
| Straight Length (L) | The length between two ends general from 300mm-1500mm, and also can produce according to the clients' requirement to product. |
| Material | A234-WPB, A420-WPl6, A234-WP11, A234-WP5, A403-WP304, A403-WP304L, A403-WP316, A403-WP316L, SS304, SS304L, SS316, SS316L |
| Application Standard | ASTM B16.9, ASTM B16.11, ASTM B16.28, JIS B2311/2220, DIN2617/2616/2615/2391 |
| Forming | Hot formed, cold drawn |
| Type | Seamless and Welded, LR & SR |
| End | Bevel, plain, thread, socket |
| Surface Treatment | 1) Sandblasting 2) Paint black lacquer or transparent oil on surface to prevent corrosion |
| Application | Petroleum industry, refinery company, fertilizer industry, power station, shipbuilding, onshore platform. |
| Packing | 1) Seaworthy wooden box for fittings with size from 1/2" ~ 14" 2) Seaworthy wooden pallet for fittings with size above 14" 3) According to the packing requirement of clients |
| Weight | Weight (kg)=[0.0433(d-t)trθ ]/100000+l(the weight of two ends straight bend) |
| MOQ | 10 piece |
| Delivery Term | FOB(30% down payment in advance, the balance before shipment) CIF or C&F(30% in advance , the balance against with the copy of B/L) |
| Delivery time | 15~30 days after receipt of advanced payment |
Carbon Steel Pipe Fitting Bend Chemical Composition
| Grade | Mn | P | S | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| WPHY 42 | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.04 |

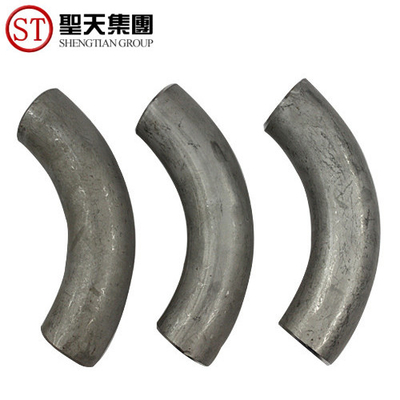

Product Picture
