18mm Thickness Weld Spiral SSAW Steel Pipe

18mm Thickness Weld Spiral SSAW Steel Pipe
18mm Thickness Weld Spiral SSAW Steel Pipe 18mm Thickness Weld Spiral SSAW Steel Pipe

Large Image :  18mm Thickness Weld Spiral SSAW Steel Pipe

Product Details:
Place of Origin: Mengcun,China
Brand Name: ST
Certification: TUV/SGS
Model Number: SSAW steel pipe 012
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton
Price: 1 Ton US $380/ Ton;>5 Tons US $374/ Ton
Packaging Details: Standard Seaworthy Packing or as Per Your Request
Delivery Time: 7-14 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40000 Tons Per Year

18mm Thickness Weld Spiral SSAW Steel Pipe

Description
Specification: 219-2020mm Certificate: ISO, API, SGS, TUV, BV
Surface Treatment: Painted,Galvanized,Black Oil,3 PE, Fbe Wall Thickness: 5-18mm
Transport Package: Standard Seaworthy Packing Or As Per Your Request Ends: Plain, Beveled, As Per Required
Grade Group: 16mn, A53-A369, Q195-Q345, St35-St52 Standard: API, ASTM, BS, JIS
High Light:

Spiral SSAW Steel Pipe

,

Weld SSAW Steel Pipe

,

18mm Thickness SSAW Steel Pipe

API 5L X52-X80 P5 P9 P11 P12 T11 T12 T91 Weld Spiral SSAW Steel Pipe



Product Description



Size 1) OD: 406mm-1560mm
2)Wall Thickness: 7mm-40mm
3) SCH20,SCH40,STD,XS,SCH80,SCH160,XXS
Length Up to 75m
Usage Piling, marine construction, offshore platform, low-pressure liquid delivery, such as water, gas, and oil.
Standard API 5L PSL1/ PSL2 , ASTM A252, EN10219, AWWA C200, ASTM A53, BS, JIS, etc...
ASTM A 53 Gr. A, Gr B, Gr C, Gr.D
API 5L A, B, X42, X46, X52, X56, X60, X65 X70
GB/T9711 L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555
ASTM A252 Gr.1 Gr.2 Gr.3
EN 10219 S235JR, S275JR, S355JR, S355JOH, S355J2, S420...
Ends: 1) Bared
2) Black Painted (varnish coating)
3) galvanized
4) Oiled
5) PE,3PE, FBE, corrosion resistant coating, Anti corrosion coating.
Technique:
  1. Single Submerged Arc Welded (LSAW)
  2. Double Submerged Arc Welded (DSAW)
  3. T-JOINT
Inspection: With Hydraulic Testing, Eddy Current, inspection by 3rd party.
Delivery: Container, Bulk Vessel.



Product Parameters



ASTM A53 /A106 Chemical Components and Machanical Property
Standard Steel Grade Chemical Components Machanical Property
C Mn P S Cu Ni Cr Mo V Tensile Strength (Mpa) Yield Strength(Mpa) Elongation (Mpa)
ASTM A53 A ≤0.25 ≤0.95 ≤0.05 ≤0.045 ≤0.40 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥330 ≥205 ≥29.5
B ≤0.30 ≤1.20 ≤0.05 ≤0.045 ≤0.40 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥415 ≥240 ≥29.5
Standard Steel Grade Chemical Components Machanical Property
C Si Mn P S Cu ,Ni Cr Mo V Tensile Strength (Mpa) Yield Strength(Mpa) Elongation (Mpa)
ASTM A106 B ≤0.30 ≥0.10 0.29-1.06 ≤0.035 ≤0.035 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥415 ≥240 ≥30
C ≤0.35 ≥0.10 0.29-1.06 ≤0.035 ≤0.035 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥485 ≥275 ≥30




Advantages of SSAW Steel Pipes



SSAW steel pipe can be produced in longer length (maximum length up to 50 meters) compared to LSAW steel pipes

Due to its spiral seam SSAW pipe has an accurate diameter accuracy and strength

The sizes are adjustable & can be tailored to end-users requirement.



Detailed photos

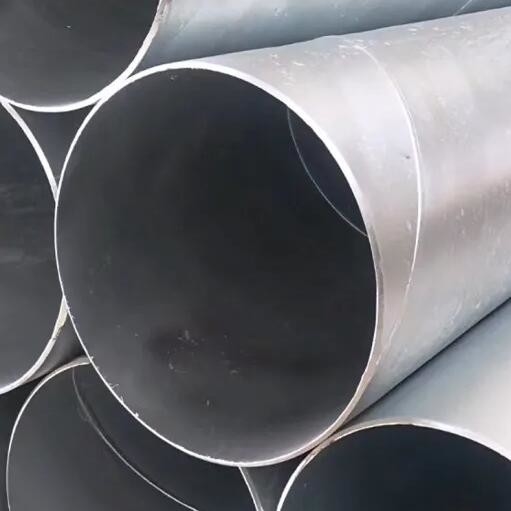

18mm Thickness Weld Spiral SSAW Steel Pipe 0

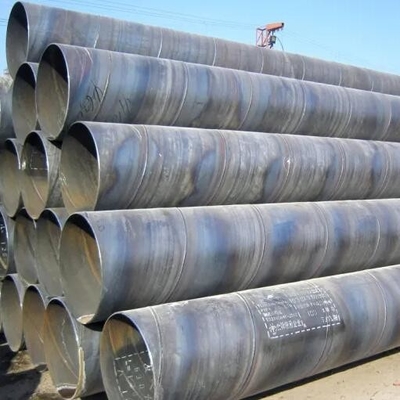

18mm Thickness Weld Spiral SSAW Steel Pipe 1
