Carbon Steel DN5000 ASME B16.47  Threaded Pipe Flange

Carbon Steel DN5000 ASME B16.47  Threaded Pipe Flange
Carbon Steel DN5000 ASME B16.47  Threaded Pipe Flange Carbon Steel DN5000 ASME B16.47  Threaded Pipe Flange Carbon Steel DN5000 ASME B16.47  Threaded Pipe Flange

Large Image :  Carbon Steel DN5000 ASME B16.47  Threaded Pipe Flange

Product Details:
Place of Origin: China
Brand Name: Shengtian
Certification: ISO9000/EN10204 3.1B
Model Number: Threaded Flange001
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 1-50 Pieces US $15/ Piece;>50 Pieces US $12/ Piece
Packaging Details: in Wooden Cases or Customers Requirements
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500ton/Year

Carbon Steel DN5000 ASME B16.47  Threaded Pipe Flange

Description
Manufacturing Way: Forging Types Of Threaded Flange: Forged / Threaded / Screwed / Plate
Material: Carbon Steel Standard: ANSI, DIN, GB, JIS, GOST
Size: 1/2"-24"
High Light:

DN5000 B16.47 Threaded Pipe Flange

,

DN5000 Threaded Pipe Flange

,

DN5000 B16.47 Flange With Thread

ANSI B16.47/ASME B16.47 Series A A105 CS 150#-2500# Threaded Flange



  Also referred to as a screwed flange by any Threaded Flange Manufacturer, these flanges have a thread inside the flange bore. These threads aid the flange to be fitted onto a pipe, which in turn will have a set of matching male threads. Generally, a threaded flange is designed with the intention of being used in those areas that do not permit welding to be performed in the pipe area. For instance, if welding were to be carried out in highly flammable areas, the result would lead to explosions and potential health hazards. Hence, 1/2 threaded flange is used in nuclear power or heavy oil refineries. Apart from proving to be an easy and speedy connection device, it is important to note that a Carbon steel threaded flange is not particularly suited to perform well in industries that have a high temperature and a high pressure setting.



Specifications of ANSI B16.47/ASME B16.47 Threaded flange



Threaded flange Standards

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1,

API7S-15, API7S-43, API605, EN1092

Threaded flange Size

1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000

Application Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding,onshore platform

Threaded flange Pressure

Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

Types Of Threaded flange

Forged / Threaded / Screwed / Plate

Special design

As per your drawing

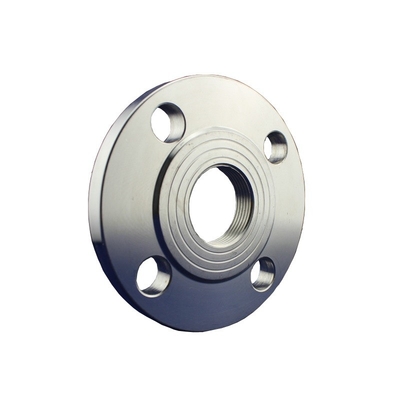

ANSI B16.47/ASME B16.47 Threaded flange Picture

Carbon Steel DN5000 ASME B16.47  Threaded Pipe Flange 0

Dimensions Of ANSI B16.47/ASME B16.47 Threaded flange



Carbon Steel DN5000 ASME B16.47  Threaded Pipe Flange 1



Pipe Size Outside Diameter of Flange Diameter of Raised Face Thickness of Flange Diameter of Hub at Base Length of Hub Minimum Thread Length Number of Bolt Holes Approx. Weight
(NPS) A B C J L N (Lbs.)
1/2 3 1/2 1 3/8 7/16 1 3/16 5/8 5/8 4 2
3/4 3 7/8 1 11/16 1/2 1 1/2 5/8 5/8 4 2
1 4 1/4 2 9/16 1 15/16 11/16 11/16 4 2
1 1/4 4 5/8 2 1/2 5/8 2 5/16 13/16 13/16 4 3
1 1/2 5 2 7/8 11/16 2 9/16 7/8 7/8 4 3
2 6 3 5/8 3/4 3 7/16 1 1 4 5
2 1/2 7 4 1/8 7/8 3 9/16 1 1/8 1 1/8 4 7
3 7 1/2 5 15/16 4 1/4 1 3/16 1 3/16 4 8
3 1/2 8 1/2 5 1/2 15/16 4 13/16 1 1/4 1 1/4 8 11
4 9 6 3/16 15/16 5 5/16 1 5/16 1 5/16 8 13
5 10 7 5/16 15/16 6 7/16 1 7/16 1 7/16 8 15
6 11 8 1/2 1 7 9/16 1 9/16 1 9/16 8 19
8 13 1/2 10 5/8 1 1/8 9 11/16 1 3/4 1 3/4 8 30
10 16 12 3/4 1 3/16 12 1 15/16 1 15/16 12 43
12 19 15 1 1/4 14 3/8 2 3/16 2 3/16 12 64
14 21 16 1/4 1 3/8 15 3/4 2 1/4 2 1/4 12 85
16 23 1/2 18 1/2 1 7/16 18 2 1/2 2 1/2 16 93
18 25 21 1 9/16 19 7/8 2 11/16 2 11/16 16 120
20 27 1/2 23 1 11/16 22 2 7/8 2 7/8 20 155
22 29 1/2 25 1/4 1 13/16 24 3 1/8 3 1/8 20 159
24 32 27 1/4 1 7/8 26 1/8 3 1/4 3 1/4 20 210
