Product Details:
|
| Type: | Welded | Section Shape: | Round |
|---|---|---|---|
| Material: | Carbon Steel | Specification: | 12*12mm-500*500mm |
| Surface Treatment: | Black | Trademark: | ST |
| Transport Package: | In Bundles, Wooden Box | Origin: | China |
| High Light: | 0.6mm Carbon Steel Round Pipe,Hot Rolled Carbon Steel Round Pipe,12x12mm Carbon Steel Pipe |
||

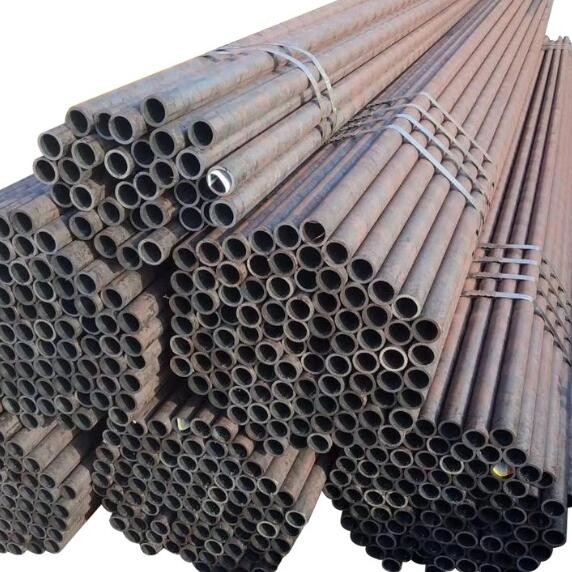

Factory Hot Rolled Steel Pipe Carbon Steel Round Pipe Manufacturer with High Quality Raw Materials for Construction
| Size | OD | 20*20-500*500MM |
| Wall Thickness | 0.6 mm-15mm | |
| Length | 1-12M | |
| Standard | ASTM A 500 Specification for Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes | |
| BS EN 10219-2 :2006 Cold formed welded structural hollow sections finegrain steels | ||
| Steel Grade | S235, S235JR, S235 G2H, S275, S275JR, S355JRH ,S355J2H | |
| St33, St37, St44, ST52 | ||
| JIS G3444 STK290,STK400,STK500,STK490,STK540 | ||
| Steel material | Q195 → SS330,ST37,ST42 | |
| Q235 → SS400,S235JR | ||
| Q345 → S355JR,SS500,ST52 | ||
| Zinc Weight | 40g,60g,80g,100g,120g,270g,400g,500g,550g | |
| 7μm ,8μm, 15μm ,20μm ,40μm ,60μm,70μm,80μm | ||
| Usage | 1)Low Pressure Liquid, Water, Gas, Oil, Line Pipe | |
| 2)Construction , Structure | ||
| 3)Agriculture fence post , door pipe | ||
Standard |
API A106 GR.B A53 Gr.B seamless steel pipe / ASTM A106 Gr.B A53 Gr.B steel tube AP175-79, DIN2I5L , ASTM A106 Gr.B, ASTM A53 Gr.B, ASTM A179/A192/A213/A210 /370 WP91, WP11,WP22 DIN17440, DIN2448,JISG3452-54 |
Material |
API5L,Gr.A&B, X42, X46, X52, X56, X60, X65, X70, X80, ASTM A53Gr.A&B,ASTM A106 Gr.A&B, ASTM A135, ASTM A252, ASTM A500, DIN1626, ISO559, ISO3183.1/2, KS4602, GB/T911.1/2,SY/T5037, SY/T5040 |
| Thickness | 1.65mm-59mm |
| Surface Treatment | black paint, varnish, oil, galvanized, anti-corrosion coated. |
| Pipe Length | SRL:3M-5.8M DRL:10-11.8M or As clients requested length |
| Application | liquid delivery,Structure pipe,construction, petroleum cracking,oil pipe,gas pipe |
Advantages |
1.Reasonable price with excellent quality2.Abundant stock and prompt delivery 3.Rich supply and export experience, sincere service 4.Reliable forwarder, 2-hour away from port. |
Packaging |
Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; wooden cases; waterproof woven bag. |
|
Steel pipe size
|
A
|
DN15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
|
B
|
1/2''
|
3/4"
|
1''
|
1.1/4''
|
1.1/2''
|
2''
|
2.1/2''
|
3''
|
|
|
outer diameter
|
ASME
|
21.3
|
26.7
|
33.4
|
42.2
|
48.3
|
60.3
|
73
|
88.9
|
|
wall thickness
|
SCH10
|
2.11
|
2.11
|
2.77
|
2.77
|
2.77
|
2.77
|
3.05
|
3.05
|
|
SCH30
|
2.41
|
2.41
|
2.9
|
2.97
|
3.18
|
3.18
|
4.78
|
4.78
|
|
|
STD
|
2.77
|
2.87
|
3.38
|
3.56
|
3.68
|
3.91
|
5.16
|
5.49
|
|
|
SCH40
|
2.77
|
2.87
|
3.38
|
3.56
|
3.68
|
3.91
|
5.16
|
5.49
|
|
|
XS
|
3.73
|
3.91
|
4.55
|
4.85
|
5.08
|
5.54
|
7.01
|
7.62
|
|
|
SCH80
|
3.73
|
3.91
|
4.55
|
4.85
|
5.08
|
5.54
|
7.01
|
7.62
|
|
|
SCH160
|
4.87
|
5.56
|
6.35
|
6.35
|
7.14
|
8.74
|
9.53
|
11.13
|
|
|
XXS
|
7.47
|
7.82
|
9.09
|
9.7
|
10.15
|
11.07
|
14.02
|
15.25
|
Company introduction
Established in 1989, Hebei Shengtian Pipe-Fitting Group Co., Ltd. located in Mengcun County Hebei Province China, covering a land area of 100,000 square meters, with a workshop of 25,000 square meters and registered capital of 110 million RMB. Our company has a strong staff team. There are over 360 employees, including over 30 professionals and technicians.
We are capable of manufacturing various pipe fittings. Our main products scope: steel elbow, tees, bends, reducers, caps, forged flanges and sockets. We have been in this line for over 20 years. Our products are exported to many countries and regions, such as Southeast Asia, the Middle East, Europe and America etc. Our pipes and pipe fittings enjoy a good reputation in domestic and foreign markets. Every year, hundreds of foreign visitors and innumerable domestic visitors come to our company for business cooperation.
We have first-class inspection devices, perfect detecting means and well-trained specialists. And we stick to ISO9000:2000 quality system and efficiently control procedure in production. We have confidence that we can supply the best quality products. We would like to take responsibility for any quality uncertainty. Even so, our price is competitive. Besides, we can provide the best service to you.
In order to avoid the policy of the anti-dumping duties imposed on pipe & fittings from the Europe, United States and other countries, We can re-export through other countries like Malaysia, etc, to circumvent the anti-dumping duties, which could make you to win more competitive price.
Product Display
Quality Control
Packing and Shipping
Shipping--- by container (Apply to a few or common quantity) or in bulk ( Apply to huge quantity)
Container sizes:
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)
For 20feet container load 25tons-28tons pipes whose max. length is 5.8m.
For40feet container load 25tons-26tons pipes whose max. length is 12m.
