Product Details:
|
| Application: | Petroleum, Chemical, Machinery, Boiler | Connection: | Pipe Fitting |
|---|---|---|---|
| Material: | Carbon Steel | Shape: | Round |
| Size: | SCH 40 | Standard: | ASME B16.9 |
| Surface Treatment: | Black | Technics: | Forged |
| High Light: | sch 40 elbow a234,90 degree elbow a234,std carbon steel 90 degree elbow |
||

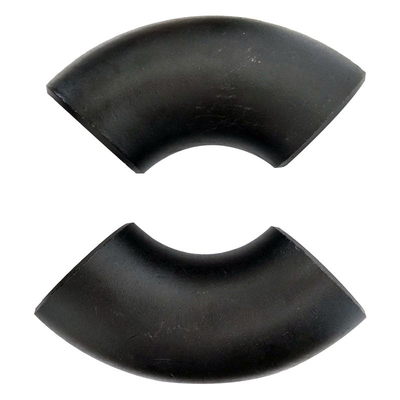

ASME B16.9 A234 SCH 40 STD 90 Degree Long Radius Butt Welded Carbon Steel Pipe Fittings LR Seamless Elbows
A carbon steel pipe fitting elbow is a type of pipe fitting that is used to change the direction of a pipeline. It is typically made of carbon steel, which is a strong and durable material that is able to withstand high pressure and high temperature conditions.
The elbow fitting is designed with a curve or bend in the pipe, which can be either a 90-degree angle or a less severe angle, such as 45 degrees. The angle of the elbow determines the direction in which the pipeline will change, allowing the flow of the fluid to be redirected as needed.
Carbon steel pipe fitting elbows are commonly used in industries such as oil and gas, chemical processing, and power generation. They are available in a variety of sizes and can be threaded or welded onto the pipeline. Proper installation and maintenance of these fittings are essential to ensure the safe and efficient operation of the pipeline.
Product Details
| Diameter Range | 1/2"-48" |
| Type | Long Radius, Short Radius, Reducing Butt Weld Steel Elbow |
| Standard | B16.9,MSS-SP-43,B16.11, MSS-SP-97,DIN2605-2617 |
|
|
Carbon Steel: ASTM A234 WPB,WPC, ASTM,ASME A860 WPHY 42,WPHY 46, WPHY 52, WPH 60, WPHY 65, WPHY 70 |
| Low Temperature: A420 LF1,LF3, LF6, WPL3, WPL6, WPL9 | |
| Alloy Steel: ASTM A234 WP1,WP2,WP5,WP9,WP11,WP12,WP22,WP91,WP92 | |
| Stainless Steel: ASTM A403 WP304,WP304L,WP304H,WP310S,WP316,WP316L,WP321,WP321H,WP904L. | |
| Duplex Steel: A815,S31803,S32750,S32760,S31254,S34565,S31500,S32304 | |
| Non Ferrous Alloy: ASTM B366 | |
| Surface | Zinc-plated, Hot dipped galvanized, Painting, Oiled lightly and etc |
| Usage | The products are widely applied in such fields as petrochemical industry, fertilizer, nuclear power, boiler,ship,environmental protection, aviation, pulp and paper, food, medicine and etc |
| Equipment and Inspection | Portable Spectrometer, Brinell's Machine, Ultrasonic Flaw Detector, Portable Sclerometer |
| We have gotten the approval of Takreer, Borouge, NPCC, FERTIL, NAKHEEL, ADNOC - UAE and Aramco - KSA. | |
| We can provide MTC as per EN10204 3.1, and also can do EN10204 3.2 certificate as per your requirement. | |
