Product Details:
|
Bending Radius: | 3D, 4D, 5D, 6D, 7D, 8d, 9d, 10d | Port: | Tianjin |
---|---|---|---|
Bend Angle: | 30 ; 45 ; 60 ; 90 ; 120; 180 ; Ect | Transport Package: | Standard Sea-Worthy Package |
Wall Thickness: | 1.5 Mm / 2.0 Mm / 3.0 Mm | Standards: | ASME/DIN/EN/ASME B16.9 |
Highlight: | 3.0 mm Pipe Fitting Bend,ASTM 3.0 mm Pipe Fitting Bend,3.0 mm Carbon Steel Pipe Fitting Bend |

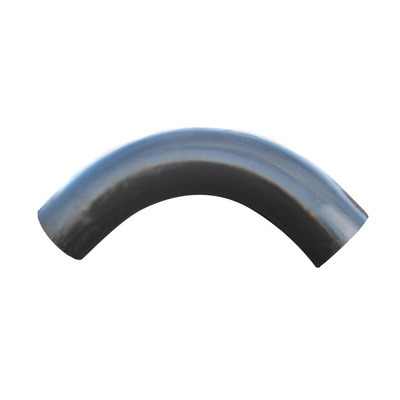

ASTM A234 Wpb Butt Welded Carbon Steel Pipe Fitting Bend
Are you finding Carbon Steel A234 WPB Seamless Pipe Bends manufacturers in China? Hebei shengtian pipe-fitting group Co., ltd is serving to this industry for 30 years and providing a vast array of Carbon Steel ASTM A234 WPB Pipe Bends including A234 WPB Carbon Steel Seamless Pipe Bend, Carbon Steel WPB Piggable Bend, A234 WPB Hot Induction Bend, WPB Carbon Steel J Pipe Bend, A234 WPB Mitered Pipe Bend, Carbon Steel WPB U Pipe Bend, Carbon Steel WPB 3D Pipe Bend, Bend A 234 and right ASME B16.9 A234 WPB Welded Pipe Bend so that developed a strong reputation in this industry.
These ASTM A234 WPB Pipe Bend are used in the industrial plants and produced through the hot mandrel bending from raw material of straight steel pipe. Hebei shengtian pipe-fitting group Co., ltd is a leading manufacturer of A234 WPB Bend & have a wide stock of Carbon Steel A234 WPB Pigabble Bends, ASTM A234 WPB Sch 40 Long Radius Bend, CS A234 WPB Return Bend in China. We export these CS A234 WPB Return Bend, CS ASTM A234 Exhaust Pipe Bend, Carbon Steel A234 WPB 45 Degree Bend, A234 Grade WPB schedule 40 Bend, ASTM A234 Carbon Steel WPB Mitered Pipe Bend to all around the world.
ASTM A234 Wpb Butt Welded Carbon Steel Pipe Fitting Bend Specification
Pipe Fitting Bend Size |
Seamless Pipe Bend: 1/2" - 10" WPB Welded Pipe Bend: 1/2" - 48" |
Pipe Fitting Bend Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
Pipe Fitting Bend
Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160 |
Pipe Fitting Bend Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom WPB Carbon Steel Bends |
Pipe Fitting Bend Angle |
22.5 deg, 30deg, 45 deg, 90 deg, 180 deg |
Pipe Fitting Bend
Standard |
ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
Pipe Fitting Bend Process |
Push, Press, Forge, Cast, etc. |
ASTM A234 Wpb Butt Welded Carbon Steel Pipe Fitting Bend Size
Size(in.) | PressureRating | T(in.) | Short Radius | Long Radius | ||||
(psi) | A(in.) | R(in.) | Weight(lbs.) | B(in.) | R(in.) | Weight(lbs.) | ||
4 | 250 | 0.52 | 6.5 | 4.5 | 40 | 9 | 7 | 50 |
6 | 250 | 0.55 | 8 | 6 | 65 | 11.5 | 9.5 | 80 |
8 | 250 | 0.6 | 9 | 7 | 105 | 14 | 12 | 140 |
10 | 250 | 0.68 | 11 | 9 | 165 | 16.5 | 14.5 | 215 |
12 | 250 | 0.75 | 12 | 10 | 240 | 19 | 17 | 325 |
14 | 250 | 0.66 | 14 | 11.5 | 290 | 21.5 | 19 | 385 |
16 | 250 | 0.7 | 15 | 12.5 | 370 | 24 | 21.5 | 505 |
18 | 250 | 0.75 | 16.5 | 14 | 450 | 26.5 | 24 | 630 |
20 | 250 | 0.8 | 18 | 15.5 | 575 | 29 | 26.5 | 810 |
24 | 250 | 0.89 | 22 | 18.5 | 900 | 34 | 30.5 | 1240 |
30 | 250 | 1.03 | 25 | 21.5 | 1430 | 41.5 | 38 | 2105 |
36 | 250 | 1.15 | 28 | 24.5 | 2135 | 49 | 45.5 | 3285 |
42 | 250 | 1.28 | 31 | 27.5 | 3055 | 56.5 | 53 | 4865 |
48 | 250 | 1.42 | 34 | 30.5 | 4090 | 64 | 60.5 | 6790 |
54 | 250 | 0.9 | 39 | 34.3 | 3740 | - | - | - |
60 | 250 | 0.94 | 43 | 36.5 | 4965 | - | - | - |
64 | 250 | 0.99 | 48 | 38.8 | 6745 | - | - | - |
Product pictures
Chemical Composition ASTM A234 WPB Pipe Fitting Bend
Grade | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Nb |
WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
WPC | 0.35 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
WP11 CL1 | 0.05-0.15 | 0.30-0.60 | 0.03 | 0.03 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - | - | - | - |
WP11 CL2/3 | 0.05-0.20 | 0.30-0.80 | 0.04 | 0.04 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - | - | - | - |
What is ASTM A234 WPB Bend?
Carbon Steel A234 WPB Pipe Fitting Bends is most common type of carbon steel fitting & play a very important role for changing direction in piping system such as in pipelines for fuel, industrial fluids, construction and a variety of other uses. Carbon Steel ASTM A234 WPB Pipe Fitting Bends mainly have a minimum bending radius of 1.5 times pipe radius (R). The main difference between Elbow & A234 WPB Bend is the radius, less than 1.5R bending radius is called A234 WPB Elbow. 1.5, 3 and 4.5 R are the most common bending radii in the steel industry.
All Bends such as ASTM A234 Carbon Steel WPB Hot Induction Bend, ASTM A234 Carbon Steel WPB Seamless Pipe Fitting Bend, ASTM A234 Carbon Steel WPB Welded Pipe Fitting Bend & ASTM A234 Carbon Steel WPB Piggable Bend have lower in price compare to WPB Elbow.
