Product Details:
|
Material: | Carbon Steel | Specification: | 1/2"-24" |
---|---|---|---|
Type: | Equal Tee | Thickness: | Sch10-sch40 |
Surface: | Black Painting | ||
High Light: | SCH20S Pipe Fitting Tee,306 SCH20S Pipe Fitting Tee,SCH20S 306 Stainless Steel Tee |

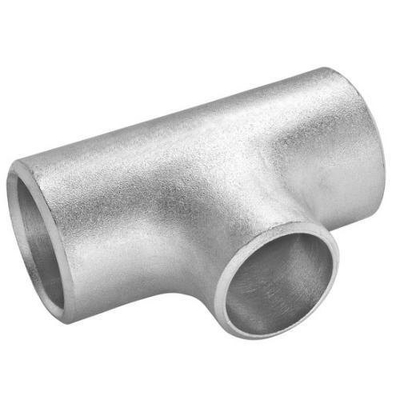

Sch10s Sch20s Sch30s Sch40s 30 45 60 90 Stainless Steel 304 306 Pipe Fittings Tee
Material | Stainless Steel: SS304, SS316, SS304L, SS316L, SS321, SS310 |
Type | Elbow, Tee, Reducer, Cap, Stud-Ends, Cross |
Schedule | SCH5S, SCH10S, SCH20S, SCH40S, SCH80S, etc |
Standard | Design: ASME B16.9, MSS-SP-43 |
Size | 1/2" to 48" |
Connection | Butt Weld End as per ASME B16.9 |
Application | For Water, Oil and Gas Industrial |
Certificate |
CE / ISO / SGS |
Dimension of Pipe Fittings Tee
NPS | O.D. | Center to End | Center to End |
D | C | M | |
1/2 | 21.3 | 25 | 25 |
3/4 | 26.7 | 29 | 29 |
1 | 33.4 | 38 | 38 |
1¼ | 42.2 | 48 | 48 |
1½ | 48.3 | 57 | 57 |
2 | 60.3 | 64 | 64 |
2½ | 73 | 76 | 76 |
3 | 88.9 | 86 | 86 |
3½ | 101.6 | 95 | 95 |
4 | 114.3 | 105 | 105 |
5 | 141.3 | 124 | 124 |
6 | 168.3 | 143 | 143 |
8 | 219.1 | 178 | 178 |
10 | 273 | 216 | 216 |
12 | 323.8 | 254 | 254 |
14 | 355.6 | 279 | 279 |
16 | 406.4 | 305 | 305 |
18 | 457 | 343 | 343 |
20 | 508 | 381 | 381 |
22 | 559 | 419 | 419 |
24 | 610 | 432 | 432 |
26 | 660 | 495 | 495 |
28 | 711 | 521 | 521 |
30 | 762 | 559 | 559 |
32 | 813 | 597 | 597 |
34 | 864 | 635 | 635 |
36 | 914 | 673 | 673 |
38 | 965 | 711 | 711 |
40 | 1016 | 749 | 749 |
42 | 1067 | 762 | 711 |
44 | 1118 | 813 | 762 |
46 | 1168 | 851 | 800 |
48 | 1219 | 889 | 838 |
