Product Details:
|
| Bend Angle: | 30 ; 45 ; 60 ; 90 ; 120; 180 ; Ect | Port: | Tianjin |
|---|---|---|---|
| Bending Radius: | 3D, 4D, 5D, 6D, 7D, 8d, 9d, 10d | Transport Package: | Standard Sea-Worthy Package |
| Wall Thickness: | 1.5 Mm | Standards: | ASME/DIN/EN/ASME B16.9 |
| High Light: | 12D Pipe Fitting Bend,ASME B16.9 Pipe Fitting Bend,12D Stainless Steel Pipe Bends |
||

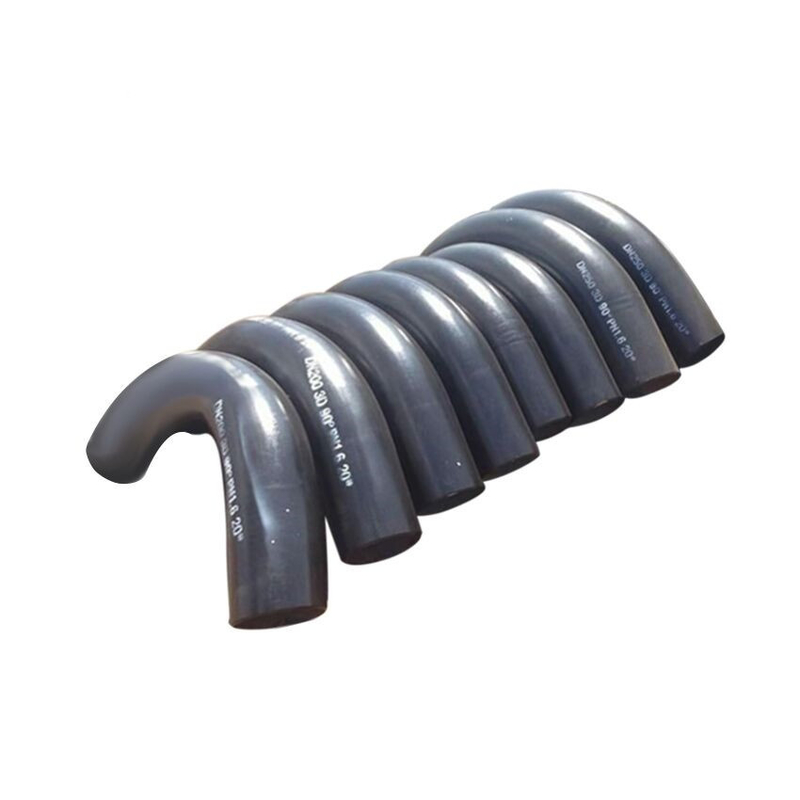

ASME B16.9 3D 5D 12D Stainless Steel Carbon Steel Pipe Fitting Bend Specification
|
Pipe Fitting Bend Size |
Seamless Pipe Bend: 1/2" - 10" WPB Welded Pipe Bend: 1/2" - 48" |
|
Pipe Fitting Bend Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Pipe Fitting Bend
Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160 |
| Pipe Fitting Bend Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom WPB Carbon Steel Bends |
| Pipe Fitting Bend Angle |
22.5 deg, 30deg, 45 deg, 90 deg, 180 deg |
| Pipe Fitting Bend
Standard |
ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Pipe Fitting Bend
Transport Package |
Bundle, Wooden Case |
Dimensions of ASME B16.9 3D 5D 12D Stainless Steel Carbon Steel Pipe Fitting Bend
|
Dimensions |
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
|
Radius Available 3D Bend 5D Bend 6D Bend 8D Bend 10D Bend 20D Bend Customized radius |
