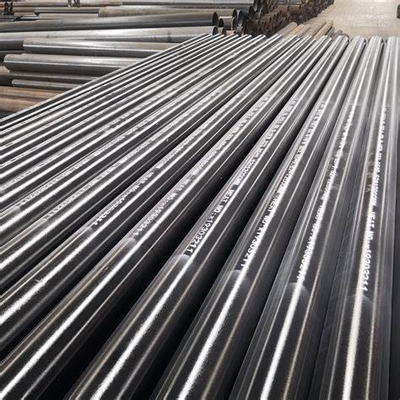

SCH 120 ERW Steel Pipe

SCH 120 ERW Steel Pipe
SCH 120 ERW Steel Pipe SCH 120 ERW Steel Pipe

Large Image :  SCH 120 ERW Steel Pipe

Product Details:
Place of Origin: China
Brand Name: Shengtian
Certification: BV, SGS, TUV，ISO
Model Number: ERW steel pipe003
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton
Price: 1 Ton US $645/ Ton；>5 Tons US $582/ Ton
Packaging Details: Suitable packing according to the size of the pipes
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2 Million Ton/Year
Contact Now

SCH 120 ERW Steel Pipe

Description
WT: 3.0--22mm O. D.: 20-610
Coating Standard: DIN30670, ISO21809 Surface: Black Or Oilded To Prevent The Rust
Material: Gr.B, X42,X46,X52,X60,X65,X70 Technique: Cold Rolled
Highlight:

SCH 120 ERW Steel Pipe

,

DIN30670 ERW Steel Pipe

,

SCH 120 Electric Resistance Welded Pipe

ASTM A53 A106 B Xs Sch 120 Carbon Steel Seamless ERW Steel Pipe



Outer Diameter 20~610mm
Wall Thickness 0.8~18mm
Length 3-12M according to client requirement
Standard EN10255, EN10219, EN10210, EN39, BS1387,
ASTM A53, ASTM A500, ASTM A36, API 5L, ISO 65
JIS G3444,DIN 3444, ANSI C80.1, AS 1074,
GB/T 3091
Material Gr.A, Gr.B, Gr.C,
S235, S275, S355,
A36, SS400,
Q195, Q235, Q345
Certificate ISO 9001:2008,SGS, BV, CCIC etc
Finish of pipe Pre galvannized with zinc 30-150g/m2;
Hot dipped galvanized with zinc 220~500g/m2;
Painted with black/varnish lacquer;
Oil on the surface to prevent rust;
Bare pipe without painting:
Epoxy painting/FBE coating/3PE coating
Pipe End Plain end/ Bevel end;
Grooved end;
Threaded on two ends, one end with coupling, one end with plastic cap
Packing OD>=273mm: Loose packing,piece by piece.
OD<273mm: In hexagonal seaworthy bundles packed by steel strips.
small sizes nested into big sizes.
Applications Construction / building materials steel pipe
Scaffolding pipe
Fence post steel pipe
Fire protection steel pipe
Greenhouse steel pipe
Low pressure liquid, water, gas, oil, line pipe
Irrigation pipe
Handrail pipe
Techinical ERW (high - frequency welded)
Trade Term FOB, CFR, CIF, EXW, FCA
Payment Term T/T, LC
Delivery Time 15-45 days (based on quantity) after receiving advanced payment by T/T or LC .
Main Market Southeast Asia, South Asia, Middle East, Europe,
Middle&South America, Africa and Oceania



Size of ERW Steel Pipe



ERW steel pipe
Outside Diameter Wall Thickness
DN Inch mm mm
15 1/2" 20~21.3 0.95~2.77
20 3/4" 25~26.9 1.1~2.87
25 1" 32~33.7 1.1~4.0
32 1 1/4" 40~42.4 1.1~4.0
40 1 1/2" 47~48.3 1.5~7.0
50 2" 58~60.3 1.8~7.0
65 2 1/2" 73~76.1 2.0~7.0
80 3" 87~88.9 2.2~8.0
90 3 1/2" 101.6~102.1 2.2~9.0
100 4" 113~114.3 2.2~9.0
125 5" 140~141.3 2.5~10.0
150 6" 165~168.3 2.5~10.0
200 8" 216~219.1 3~12.0
250 10" 272.8~273.2 5.0~14
300 12" 323.8~325 5.5~14
350 14" 355.6~356 5.5~14
400 16" 406~406.4 6.5~14
450 18" 457~457.2 6.5~18
500 20" 507.9~508.1 6.5~20
600 24" 609~610



6.5~20




Diamitions for ERW Steel Pipe



Nominal size OD Wall Thickness Length
inch DN mm mm m
8" 200 219.1 6~8 5.8~12.2
10" 250 273 6~8 5.8~12.2
12" 300 323.8 6~12 5.8~12.2
14" 350 355.6 6~12 5.8~12.2
16" 400 406.4 6~12 5.8~12.2
18" 450 457 6~12 5.8~12.2
20" 500 508 6~12 5.8~12.2
24" 600 610 6~22 5.8~12.2
28" 700 711 6~22 5.8~12.2
30" 750 762 6~22 5.8~12.2
32" 800 813 6~22 5.8~12.2
36" 900 914 6~22 5.8~12.2
40" 1000 1016 6~22 5.8~12.2
42" 1050 1067 6~22 5.8~12.2
44" 1100 1118 6~22 5.8~12.2
46" 1150 1168 6~22 5.8~12.2
48" 1200 1219 6~22 5.8~12.2
52" 1300 1321 6~22 5.8~12.2
56" 1400 1422 6~22 5.8~12.2
60" 1500 1524 7~24 5.8~12.2
64" 1600 1626 7~24 5.8~12.2
68" 1700 1727 11~24 5.8~12.2
72" 1800 1829 11~24 5.8~12.2
76" 1900 1930 11~24 5.8~12.2
80" 2000 2032 11~24 5.8~12.2



Products Show

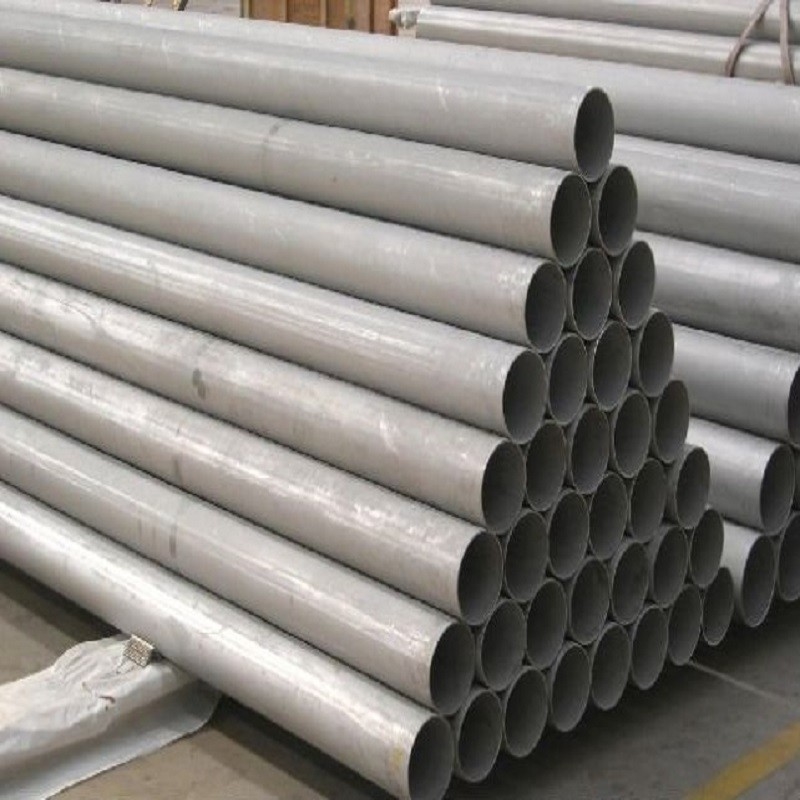

SCH 120 ERW Steel Pipe 0



SCH 120 ERW Steel Pipe 1



Tag:

A53 Electric Welded Pipe,

10.3mm ERW Steel Pipe,

0.049 Inch ERW Steel Pipe
