X70 Carbon SSAW Steel Pipe

X70 Carbon SSAW Steel Pipe
X70 Carbon SSAW Steel Pipe X70 Carbon SSAW Steel Pipe

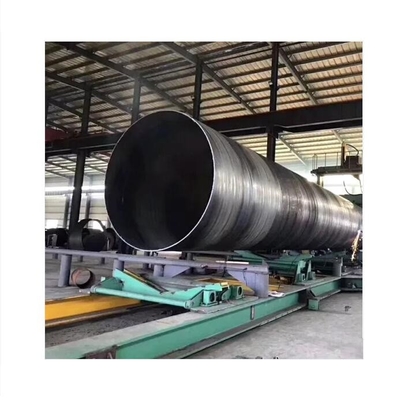

Large Image :  X70 Carbon SSAW Steel Pipe

Product Details:
Place of Origin: China
Brand Name: Shengtian
Certification: ISO, API, SGS, TUV, BV
Model Number: SSAW steel pipe001
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton
Price: 1-5 Tons US $702/ Ton;>5 Tons US $583/ Ton
Packaging Details: Suitable packing according to the size of the pipes
Delivery Time: 15-25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200000 Tons/year

X70 Carbon SSAW Steel Pipe

Standard: API, ASTM, BS, JIS Wall Thickness: 5-18mm
Application: Fluid Pipe, Drill Pipe Specification: 219-2020mm
Surface Treatment: According To Clients Requirement Package: Bundle;Bulk;Plastic Bags ,etc
High Light:

X70 SSAW Steel Pipe


API 5L SSAW Steel Pipe


2020mm Spiral Welded Steel Pipe

API 5L Gr. B X42 X46 X52 X70 Sch 40 Carbon SSAW Steel Pipe Manufacturing Process


  SSAW steel pipe , also called HSAW pipe , welding line shape like a helix. SSAW steel pipe is using the same welding technology of Submerged Arc-Welding with LSAW pipe. Differently SSAW pipe is spiral welded where the LSAW is longitudinally welded. Manufacturing process is rolling the steel strip, to make the rolling direction have an angle with the direction of the pipe center, forming and welding, so the welding seam is in a spiral line.


X70 Carbon SSAW Steel Pipe 0


SSAW Steel Pipe Size Range and Features


  The SSAW steel pipe diameter range is from 20 inch to 100 inch, 406 mm to 2540 mm.The advantage part is we can get the different diameter of SSAW steel pipes with the same size of the steel strip, there is a wide application for the raw material steel strip, and welding seam should avoid the primary stress, good performances to bear the stress.

  The disadvantage is the bad physical dimension, welding seam length is longer than the pipe length, easy to cause the defects of cracks, air hole, cinder inclusion, partial welding, welding force in pulling status.


X70 Carbon SSAW Steel Pipe 1


Applications of SSAW steel pipe


  For oil and gas pipeline systems, but in petroleum design specification, the SSAW steel pipe / HSAW pipe could only be applied in oil and gas. Construction structure, water transport and sewage treatment, thermal industry, buildings etc.


Chemical Composition Of SSAW steel pipe


Elements Material Chemical Composition% Mechanical Property
  C% Mn% S% P% Si% Yield Point (Mpa) Tensile Strength(Mpa) Elongation (%)
Q195 0.06-0.12 0.25-0.50 <0.050 <0.045 <0.30 >195 315-430 32-33
Q215 0.09-0.15 0.25-0.55 <0.05 <0.045 <0.30 >215 335-450 26-31
Q235 0.12-0.20 0.30-0.70 <0.045 <0.045 <0.30 >235 375-500 24-26
Q345 <0.20 1.0-1.6 <0.040 <0.040 <0.55 >345 470-630 21-22



X70 Carbon SSAW Steel Pipe 2
