Silver Color B16.5 ASTM A403 Long Radius Elbow

Silver Color B16.5 ASTM A403 Long Radius Elbow
Silver Color B16.5 ASTM A403 Long Radius Elbow Silver Color B16.5 ASTM A403 Long Radius Elbow Silver Color B16.5 ASTM A403 Long Radius Elbow

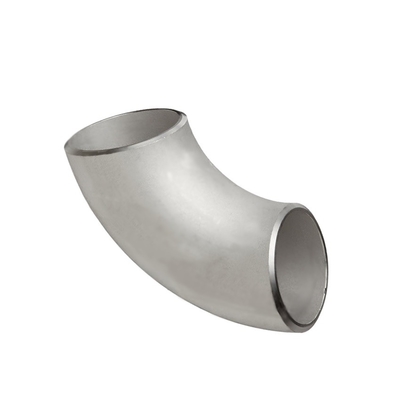

Large Image :  Silver Color B16.5 ASTM A403 Long Radius Elbow

Product Details:
Place of Origin: China
Brand Name: Shengtian
Certification: TUV/SGS/ISO/BV
Model Number: Elbow
Payment & Shipping Terms:
Minimum Order Quantity: 10 piece
Price: 1-10 pieces $6.00/ Piece;>10 pieces $4.00/ Piece
Packaging Details: wooden case, pallet
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000/PC per month

Silver Color B16.5 ASTM A403 Long Radius Elbow

Description
Technics: Forged Color: Silver
Standards: ASME B16.5 Degree: 30/45/90/180
Surface Treatment: Transparent Oil, Rust-proof Black Oil Or Hot Galvanized Material: Stainless Steel
High Light:

A403 Long Radius Elbow

,

B16.5 Long Radius Elbow

,

A403 135 Degree Elbow

ASTM A403 Butt Welded Sr/Lr 304/316 Long Radius Seamless Stainless Steel Pipe Fitting Elbow



  ASTM A403 Stainless Steel Pipe Fittings refers to the material of forged and rolled austenitic stainless fittings for pressure pipes. Common grades are WP304/L, WP316/L. They can be used into many fields as engineering industry, energy conversion plants etc.



Product Description


Type Pipe Fitting Elbow
Size Seamless Elbow:1/2"~24" DN15~DN600
Welded Elbow: 1/2"~100" DN15~DN2500
Wall thickness sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s
Standards ANSI B16.9, ASME,DIN2506, JIS, BS,GOST
Material Carbon steel: ASTM/ASME A234 WPB,WPC, ST37-2,ST54
Alloy steel: ASTM/ASME A234 WP9-WP12-WP11-WP22-WP5-WP91
Stainless steel: ASTM/ASME A403 WP 304-304L, WP 316-316L,WP 321,201
Surface treatment Transparent oil, rust-proof black oil or hot galvanized
Packing wooden case, pallet or as customers' requirement
Applications Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
Min order 10 piece
Delivery time 7 after receipt of advanced payment
Certification ASME, ISO9001:2000
Delivery Term FOB(30% down payment in advance, the balance before shipment)
CIF or C&F(30% in advance , the balance against with the copy of B/L)



ASTM A403 Pipe Fitting Elbow Standard Scope



  The standard includes several grades of austenitic stainless steel alloys, and uses the WP or CR prefix to mark the grade of steel, depending on the applicable ASTM or MSS size and rated pressure standards.

  ASTM A403 is designed for forged steel pipe fittings, Cast pipe fittings are not suitable. (Austenitic stainless steel castings are included in these standard, A351/A351M, A743/A743M and A744/A744M.)

  Material under this standard named as WP Grade, and for each WP grade stainless steel, several categories of pipe fittings are included, to indicate that a seamless or welded structure is used. Class designations are also used to indicate non-destructive testing methods and the extent of non-destructive testing (NDE).

  This standard and applicable material standards are described in both inch-pound units and SI units. However, unless the "M" standard number is specified in the order, the material is supplied in inch-pound units.

  Values expressed in either inches-pounds or SI units should be considered standard values. In the text, SI units are shown in brackets. Since the values in the two unit systems are unlikely to be exactly equal, it is necessary to independently adopt two unit systems. If mixed, it will lead to inconsistency with this standard.



Product picture



Silver Color B16.5 ASTM A403 Long Radius Elbow 0



Silver Color B16.5 ASTM A403 Long Radius Elbow 1



ASTM A403 Butt Welded Sr/Lr 304/316 Long Radius Seamless Stainless Steel Pipe Fitting Elbow Features



  Specification: ASTM A403

  Grades: WP304, WP304L, WP310S, WP316, WP316L etc.

  Types: seamless or welded

  Dimension Range: 1/2" NB to 48" NB

  Wall Thickness Range: Schedule 10s, Schedule 40s, Schedule 80s
