Product Details:
|
| Bending Radius: | 5D | Port: | Tianjin |
|---|---|---|---|
| Bend Angle: | 30 ; 45 ; 60 ; 90 ; 120; 180 ; Ect | Transport Package: | Standard Sea-Worthy Package |
| Wall Thickness: | Sch40 Sch80 Sch160 | Standards: | ASME/DIN/EN/ASME B16.9 |
| High Light: | 5D Stainless Pipe Bends,A53 Stainless Pipe Bends,5D 90 Bend Pipe Fitting |
||

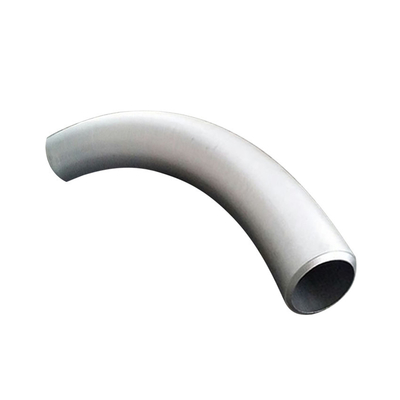

10", 90 DEG, CARBON STEEL SEAMLESS ELBOW TO ASTM A53 GR .B ,RADIUS OF ELBOW 5D Pipe Fitting Bend
A234 WPB Bend 4” SCH 40, ANSI B16.9
Seamless bend
Welded bend
90 bend
7D bend
| Model NO. | 1/2"-24" Sch10-Sch160 | ||
| Certification | ASME, ANSI, JIS, GB, API | ||
| Color | Black | ||
| Certificate | ISO9001 | ||
| Trademark | ST | ||
| Package | Pallet, Wooden Case | ||
| Specification | API, ISO | ||
| Origin | Cangzhou, China | ||
| name | A234 WPB Bend 4” SCH 40, ANSI B16.9 | ||
| Size | 1/2" - 24" | ||
| Wall thickness | Sch5-Sch160 XXS | ||
| Standard |
ANSI, ASME API5L, OCT, DIN and JIS, etc. we can also produce according to drawing and standards provided by customers. |
||
| Material |
Carbon steel, alloy steel and stainless steel. We can produce according to materials appointed by consumers. |
||
| Packaging | Wooden Cases, wooden pallet plastic bag or as customers requirement | ||
| Surface Treatment | Shot blasted, rust-proof black oil | ||
| Delivery Time | 10-30 days | ||
| Quality | First grade | ||
| Others |
1.Special design available according to your drawing. 2.anti-corrosion and high-temperature resistant with black painting 3. All the production process are made under the ISO9001:2000 strictly. 4. A conformity rate of ex-factory inspection of products. |
||
ASTM A234 Wpb Butt Welded Carbon Steel Pipe Fitting Bend Size
| Size(in.) | PressureRating | T(in.) | Short Radius | Long Radius | ||||
| (psi) | A(in.) | R(in.) | Weight(lbs.) | B(in.) | R(in.) | Weight(lbs.) | ||
| 4 | 250 | 0.52 | 6.5 | 4.5 | 40 | 9 | 7 | 50 |
| 6 | 250 | 0.55 | 8 | 6 | 65 | 11.5 | 9.5 | 80 |
| 8 | 250 | 0.6 | 9 | 7 | 105 | 14 | 12 | 140 |
| 10 | 250 | 0.68 | 11 | 9 | 165 | 16.5 | 14.5 | 215 |
| 12 | 250 | 0.75 | 12 | 10 | 240 | 19 | 17 | 325 |
| 14 | 250 | 0.66 | 14 | 11.5 | 290 | 21.5 | 19 | 385 |
| 16 | 250 | 0.7 | 15 | 12.5 | 370 | 24 | 21.5 | 505 |
| 18 | 250 | 0.75 | 16.5 | 14 | 450 | 26.5 | 24 | 630 |
| 20 | 250 | 0.8 | 18 | 15.5 | 575 | 29 | 26.5 | 810 |
| 24 | 250 | 0.89 | 22 | 18.5 | 900 | 34 | 30.5 | 1240 |
| 30 | 250 | 1.03 | 25 | 21.5 | 1430 | 41.5 | 38 | 2105 |
| 36 | 250 | 1.15 | 28 | 24.5 | 2135 | 49 | 45.5 | 3285 |
| 42 | 250 | 1.28 | 31 | 27.5 | 3055 | 56.5 | 53 | 4865 |
| 48 | 250 | 1.42 | 34 | 30.5 | 4090 | 64 | 60.5 | 6790 |
| 54 | 250 | 0.9 | 39 | 34.3 | 3740 | - | - | - |
| 60 | 250 | 0.94 | 43 | 36.5 | 4965 | - | - | - |
| 64 | 250 | 0.99 | 48 | 38.8 | 6745 | - | - | - |
Product pictures
Chemical Composition ASTM A234 WPB Pipe Fitting Bend
| Grade | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Nb |
| WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
| WPC | 0.35 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
| WP11 CL1 | 0.05-0.15 | 0.30-0.60 | 0.03 | 0.03 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - | - | - | - |
| WP11 CL2/3 | 0.05-0.20 | 0.30-0.80 | 0.04 | 0.04 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - | - | - | - |
Hebei Shengtian Pipe-Fittings Group Co., Ltd. was established in 1989. We are located in Mengcun County in Hebei Province, covering an area of 100,000 square meters, with a workshop of 25,000 square meters and registered capital of $7,500,000. Our company has a strong staff team. There are over 380 employees, including over 90 professionals and technicians.
