Product Details:
|
| Standard: | ANSI B16.11 | Type: | Square Plug |
|---|---|---|---|
| Pressure: | 3000#, 6000#,9000# | Materials: | A105 |
| Size: | 1/2" | Connection: | Forged |
| High Light: | B16.11 Square Head Plug,A105 Square Head Plug,B16.11 Square Pipe Plug |
||
1/2" Male Threaded Square Pipe Plug Forged A105 3000# Stainless Steel Forged Fittings Plug ASME B16.11
| Production Name | A105 Plug 3000# |
| Size Range | From ½" up to 4 " |
| Schedule | SCH STD, XS, XXS, SCH 10 ~ SCH 160 |
| STANDARDS | ANSI, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC. |
| CE and certification: | ISO9001:2000 , API , BV , SGS, LOIYD |
| Applications range: | Petroleum, chemical, power, gas, metallurgy, shipbuilding.construction,water and nuclear power etc. |
| Packaging: | seaworthy package,Plywood Cases or pallet or as per customers requirement |
| Quality | high lever |
| The third party inspection: | BV,SGS,LOIYD,TUV,and other party alloyed by clients. |
| Delivery Time: | At the earliest ,within the period required by customer. |
| Remark: | Also can supply IBR fittings and Specialized NACE & HIC Fittings. |
Hex head pipe plug Speciafication:
| SIZE | N | L | S | |||
| mm | in | mm | in | mm | in | |
| 1/8" | 6 | 0.24 | 7 | 0.28 | 7.2 | 0.28 |
| 1/4" | 6 | 0.24 | 9.5 | 0.37 | 8 | 0.31 |
| 3/8" | 7 | 0.28 | 10 | 0.39 | 10 | 0.39 |
| 1/2" | 8 | 0.31 | 12.5 | 0.49 | 13 | 0.51 |
| 3/4" | 9 | 0.35 | 14 | 0.55 | 16 | 0.63 |
| 1" | 12 | 0.47 | 15.5 | 0.61 | 19 | 0.75 |
| 1-1/4" | 12.5 | 0.49 | 18.5 | 0.73 | 22 | 0.87 |
| 1-1/2" | 13.5 | 0.53 | 18.5 | 0.73 | 25 | 0.98 |
| 2" | 14.5 | 0.57 | 23 | 0.91 | 29 | 1.14 |
| 2-1/2" | 17 | 0.67 | 25.5 | 1 | 39 | 1.54 |
| 3" | 17 | 0.67 | 28.5 | 1.12 | 44 | 1.73 |
| 4" | 21 | 0.83 | 34.5 | 1.36 | 58 | 2.28 |
Tolerance: +0.5mm(1/8"~2")
+0.8mm(2-1/2"~4")

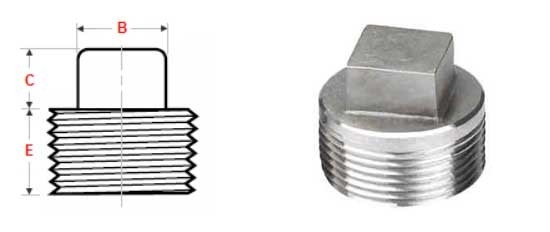

Square head pipe Plug Picture:
Company profile:
Hebei Shengtian Pipe-Fittings Group Co., Ltd. was established in 1989. We are located in Mengcun County in Hebei Province, covering an area of 100,000 square meters, with a workshop of 25,000 square meters and registered capital of $7,500,000. Our company has a strong staff team. There are over 380 employees, including over 90 professionals and technicians.
