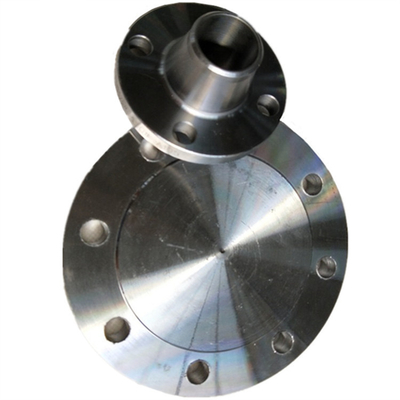

Oil Field 1500 LBS EN 1092-1 PN16 Blank Flange

Oil Field 1500 LBS EN 1092-1 PN16 Blank Flange
Oil Field 1500 LBS EN 1092-1 PN16 Blank Flange Oil Field 1500 LBS EN 1092-1 PN16 Blank Flange

Large Image :  Oil Field 1500 LBS EN 1092-1 PN16 Blank Flange

Product Details:
Place of Origin: Cangzhou,Hebei,China
Brand Name: Shengtian
Certification: ISO9000
Model Number: Flange007
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: 10-100 Pieces $5.21/piece;>50Pieces $4.10/piece
Packaging Details: Wooden Cases or Pallets
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000T/Year
Contact Now

Oil Field 1500 LBS EN 1092-1 PN16 Blank Flange

Description
Pressure: Class 150 Material: Carbon Steel
Color: Black Connection: Welding
Size: Dn 150 Flange Surface: FF
Highlight:

1500 LBS EN 1092-1 PN16 Blank Flange

,

1500 LBS PN16 Blank Flange

,

1500 LBS EN 1092-1 Blank Flange

DIN En 1092-1 Type 11 P265gh F5 F9 F11 F22 C22.8 Carbon Steel Blind Flange



　　We Recognize as a Trusted Manufacturers, Suppliers, & Exporters of EN 1092-1 Blind Flange, EN 1092-1 Raised Face Blind Flange, EN 1092-1 PN6/PN10/PN16/PN25/PN40 Blind Flange, Flat Faced EN 1092-1 Blind Flange, ASME B16.47/ANSI B16.5 EN 1092-1 Blind Flange, EN 1092-1 Plate Blind Flange, Series A & B EN 1092-1 Blind Flange, EN 1092-1 Forged Blind Flange, MSS SP-44 EN 1092-1 Blind Flange, DIN86029 PN10 EN 1092-1 Blind Flange, Class 150, 300, 600, 900, 1500 EN 1092-1 Blind Flange Dimensions.



Type New Flange Type according to DIN EN 1092 Old DIN Nominal Pressure
Blind Flange Type 11 2631 2,5
Blind Flange Type 11 2631 6
Blind Flange Type 11 2632 10
Blind Flange Type 11 2633 16
Blind Flange Type 11 2634 25
Blind Flange Type 11 2635 40
Blind Flange Type 11 2636 63
Blind Flange Type 11 2637 100
Blind Flange Type 11 2638 160
Blind Flange Type 11 2628 250
Blind Flange Type 11 2629 320
Blind Flange Type 11 2627 400
Blind Flange Type 11 2633 16
mit verstärkten S-Maßen
Blind Flange Type 11 2634 25
mit verstärkten S-Maßen
Blind Flange Type 11 2635 40
mit verstärkten S-Maßen



Standard Specifications of EN 1092-1 Blind Flange



　　Type: EN 1092-1 Flange

　　Size: ½” (15 NB) to 48″ (1200NB)

　　Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

　　DIN: DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

　　BS: BS4504 , BS4504, BS1560, BS10

　　Specialize: As per drawing

　　Standard: ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820

　　Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized

　　Connection Type: Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large, Tongue & Groove, Small Tongue & Groove

　　Flange Face Type: Flat Face (FF), Raise Face (RF), Ring Joint (RJT)

　　Dimensions: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

　　Packing: Plywood/Wood Pallet or Case

　　Usage/Applications: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.



Blind flange dimensions



FLANGE
NPS		 Outside
Diameter		 Bolt Circle (BC) Raised Face (R) Raised Face (RF) Raised Face
Thickness (T)		 Flat Face
Thickness (T2)		 Bolt Hole (B) No. of
Bolt Holes
1/2″ 3.50″ 2.38″ 1.38″ .063″ .44″ .38″ .62″ 4
3/4″ 3.88″ 2.75″ 1.69″ .063″ .50″ .44″ .62″ 4
1″ 4.25″ 3.12″ 2.00″ .063″ .56″ .50″ .62″ 4
1-1/4″ 4.62″ 3.50″ 2.50″ .063″ .62″ .56″ .62″ 4
1-1/2″ 5.00″ 3.88″ 2.88″ .063″ .68″ .62″ .62″ 4
2″ 6.00″ 4.75″ 3.62″ .063″ .75″ .69″ .75″ 4
2-1/2″ 7.00″ 5.50″ 4.12″ .063″ .88″ .82″ .75″ 4
3″ 7.50″ 6.00″ 5.00″ .063″ .94″ .88″ .75″ 4
3-1/2″ 8.50″ 7.00″ 5.50″ .063″ .94″ .88″ .75″ 8
4″ 9.00″ 7.50″ 6.19″ .063″ .94″ .88″ .75″ 8
5″ 10.00″ 8.50″ 7.31″ .063″ .94″ .88″ .88″ 8
6″ 11.00″ 9.50″ 8.50″ .063″ 1.00″ .94″ .88″ 8
8″ 13.50″ 11.75″ 10.62″ .063″ 1.12″ 1.06″ .88″ 8
10″ 16.00″ 14.25″ 12.75″ .063″ 1.19″ 1.13″ 1.00″ 12
12″ 19.00″ 17.00″ 15.00″ .063″ 1.25″ 1.19″ 1.00″ 12
14″ 21.00″ 18.75″ 16.25″ .063″ 1.38″ 1.32″ 1.12″ 12
16″ 23.50″ 21.25″ 18.50″ .063″ 1.44″ 1.38″ 1.12″ 16
18″ 25.00″ 22.75″ 21.00″ .063″ 1.56″ 1.50″ 1.25″ 16
20″ 27.50″ 25.00″ 23.00″ .063″ 1.69″ 1.63″ 1.25″ 20
22″ 29.50″ 27.25″ 25.25″ .063″ 1.81″ 1.75″ 1.38″ 20
24″ 32.00″ 29.50″ 27.25″ .063″ 1.88″ 1.82″ 1.38″ 20

Product Show



Oil Field 1500 LBS EN 1092-1 PN16 Blank Flange 0

Tag:

B16.5 Carbon Steel Blind Flange,

B16.5 8 Inch Blind Flange,

8 Inch Carbon Steel Blind Flange
