Product Details:
|
| Usage: | Oil Pipe, Casing Tube, Line Pipe And Fluid | Grades: | St37. St52, SAE1020, SAE1518, Q345b, 45# |
|---|---|---|---|
| Technique: | LSAW | Surface: | Black Paint |
| Processing: | Galvanizing; Cutting; Making Thread Outside The Pipe; Machining | WT: | 1.5-100mm |
| High Light: | 50mm Large Diameter Metal Pipe,SAE1020 Large Diameter Metal Pipe,50mm LSAW Steel Pipe |
||

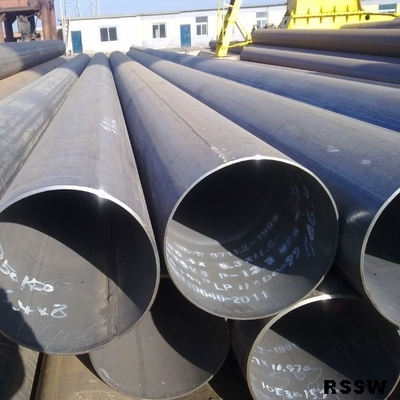

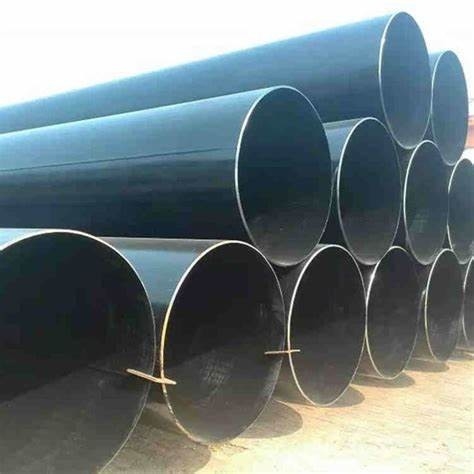

Cold Rolled API 5L Gr. B 3PE Large Diameter Welded Round Carbon LSAW Steel Pipe for Steel Structure
LSAW steel pipe manufacturing process is a new type of welded steel pipe forming technology that was developed in the 1990s. The main forming process of this technology is to mill the edge (or planing edge) of the steel plate before the steel plate width direction. Pre-bending, and then step-by-step molding in the order of J letter type → C letter type → O letter type, and multiple times of pressure stamping in the forming process, the three-point bending mold is used as the basic principle. Since the raw material steel plate of lsaw steel pipe is formed by multiple progressive die pressing, it is necessary to solve the following basic problems:
1. How to determine the shape of the die, the stroke of the upper die and the spacing of the lower die
2. How many punches are required to ensure the most suitable punching Bending radii and optimal open O-tube. These problems are different from the steel plate material, the specific mechanical properties of the steel plate production plant, and the steel pipe type (diameter and wall thickness). Whenever the production changes the new specifications or the new steel plate material, a certain number of samples are tested and the appropriate production and processing data are explored.
LSAW Steel Pipe Description
|
Usage |
Used for low pressure liquid delivery, such as water, gas, and oil. |
|
Process |
LSAW - UO(UOE),RB(RBE),JCO(JCOE) DSAW -Double Submerged arc welded |
|
Standard |
API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, GB/T3091, GB/T9711 |
|
Certificate |
API 5L PSL1 / PSL2 |
|
Out Diameter |
355.6mm- 1828.8mm |
|
Wall Thickness |
8 -50mm |
|
Length |
up to 12m |
|
Steel Grade |
|
|
API 5L PSL1 / PSL2 |
GR B, X42, X46, X52, X56, X60, X65, X70, X80 |
|
ASTM A53 |
GR A, GR B, GR C |
|
EN |
S275, S275JR, S355JRH, S355J2H |
|
GB |
Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555 |
|
Surface |
Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer's requirement |
|
Test |
Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test. |
|
Usage |
Used for low pressure liquid delivery, such as water, gas, and oil. |
|
Process |
LSAW - UO(UOE),RB(RBE),JCO(JCOE) DSAW -Double Submerged arc welded |
|
Standard |
API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, GB/T3091, GB/T9711 |
|
Certificate |
API 5L PSL1 / PSL2 |
|
Out Diameter |
355.6mm- 1828.8mm |
|
Wall Thickness |
8 -50mm |
|
Length |
up to 12m |
|
Steel Grade |
|
|
API 5L PSL1 / PSL2 |
GR B, X42, X46, X52, X56, X60, X65, X70, X80 |
|
ASTM A53 |
GR A, GR B, GR C |
|
EN |
S275, S275JR, S355JRH, S355J2H |
|
GB |
Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555 |
|
Surface |
Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer's requirement |
|
Test |
Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test. |
