Product Details:
|
| Length: | 4-14M | Surface Treatment: | Black Paint/Galvanized/PE Coated |
|---|---|---|---|
| Type: | Welded | WT: | 1.0mm-20mm |
| Transport Package: | Black Paint, Bevel Send, End Caps | Grades: | A53 Gr. A, Gr B, A106 GR.A GR.B A333 GR1 GR3 GR6 |
| High Light: | 3mm ERW Steel Pipe,Black Paint 3mm ERW Steel Pipe,3mm ERW Welded Pipe |
||

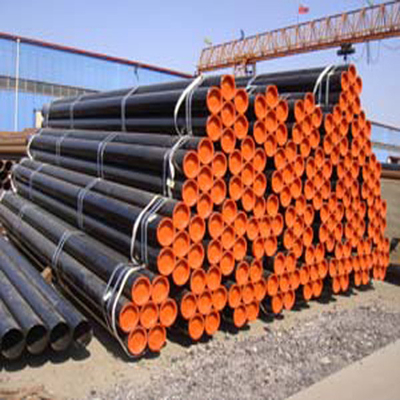

EN10219 EN10210 3mm Q235 Q195 Welded Black Round Carbon ERW Steel Pipe
Electrical resistance welding will be welders parts formed pressed between two electrodes, and subjected to current, the resistor thermal effects generated by the current flowing through contact with the workpiece surface and the neighboring regions to be heated to melt the plastic state, so thatmetal-binding method. Resistance welding methods are mainly four kinds, namely, spot welding, seam welding, projection welding, butt welding.
Chemical composition and physical properties of ERW Steel Pipe
| Grade of pipe | Chemical Composition,%,max | Physical Properties,Min. | ||||||
| C | Mn | P | S | Si | Yield Stressa Mpa | UTSb Mpa | Elongationc % | |
| A | 0.20 | 0.90 | 0.04 | 0.020 | 0.04% Max. or 0.135% to 0.35% | 207 | 331 | 9 266 divided by numerical value of actual UTS |
| B | 0.26 | 1.15 | 0.04 | 0.020 | 241 | 414 | ||
| C | 0.28 | 1.25 | 0.04 | 0.020 | 290 | 414 | ||
| a Applicable only to plate thicknesses not exceeding 18 mm. The yield stress for plate thicknesses above 18 mm shall be as agreed upon between the purchaser and the manufacturer. b UTS = Ultimate tensile strength c On a gauge length of 5,65√A ,where A is the original cross-sectional area |
||||||||
PRODUCTION DETAILS
| Outer Diameter | 20~610mm |
| Wall Thickness | 0.8~18mm |
| Length | 3-12M according to client requirement |
| Standard | EN10255, EN10219, EN10210, EN39, BS1387, ASTM A53, ASTM A500, ASTM A36, API 5L, ISO 65 JIS G3444,DIN 3444, ANSI C80.1, AS 1074, GB/T 3091 |
| Material | Gr.A, Gr.B, Gr.C, S235, S275, S355, A36, SS400, Q195, Q235, Q345 |
| Certificate | ISO 9001:2008,SGS, BV, CCIC etc |
| Finish of pipe | Pre galvannized with zinc 30-150g/m2; Hot dipped galvanized with zinc 220~500g/m2; Painted with black/varnish lacquer; Oil on the surface to prevent rust; Bare pipe without painting: Epoxy painting/FBE coating/3PE coating |
| Pipe End | Plain end/ Bevel end; Grooved end; Threaded on two ends, one end with coupling, one end with plastic cap |
| Marking | As per client requirement or mill standard |
| Packing | OD>=273mm: Loose packing,piece by piece. OD<273mm: In hexagonal seaworthy bundles packed by steel strips. small sizes nested into big sizes. |
| Applications | Construction / building materials steel pipe Scaffolding pipe Fence post steel pipe Fire protection steel pipe Greenhouse steel pipe Low pressure liquid, water, gas, oil, line pipe Irrigation pipe Handrail pipe |
| Techinical | ERW (high - frequency welded) |
| Trade Term | FOB, CFR, CIF, EXW, FCA |
| Payment Term | T/T, LC |
| Delivery Time | 15-45 days (based on quantity) after receiving advanced payment by T/T or LC . |
| Main Market | Southeast Asia, South Asia, Middle East, Europe, Middle&South America, Africa and Oceania |
