Product Details:
|
| Size: | 1/2"-24" | Manufacturing Way: | Forging |
|---|---|---|---|
| Type: | Forged | Material: | Stainless Steel |
| Sealing Surface: | RF | Standard: | ANSI, DIN, GB, JIS, GOST |
| High Light: | PN10 Threaded Pipe Flange,B16.5 Threaded Pipe Flange,PN10 Stainless Steel Threaded Flange |
||

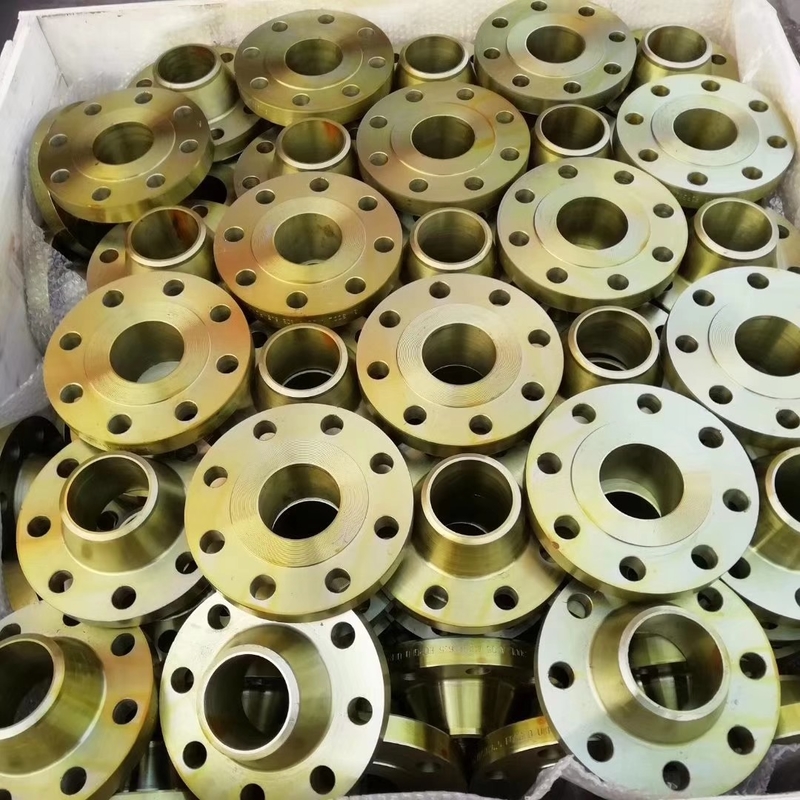

ANSI B16.5 Rtj FF 304 316 304L 316L Cl150 Pn10 Carbon Steel Stainless Steel Threaded Pipe Flange
When the gasket surface area is above the bolted line of the flange, the raised face flange is easily identified. It is compatible with a wide range of gaskets, from flat to semi-metallic and metallic types, either ring or full.
The main scope of a raised face flange design is to concentrate the pressure of the two mating flanges on a small surface and increase the strength of the seal.
The height of the raised face surface depends on the flange pressure level, for example, for pressure classes 150 and 300, the height is 1.6 mm or 1/12 inch, and for the 400 to 2500 level, the raised face height is about 6.4 mm, or 1/4 inch.
Threaded flanges are used where it is difficult to weld or cannot be welded, such as threaded flanges used to protect the galvanized layer of pipes. In addition, It should not be used on pipes with repeated temperature fluctuations or above 260 ℃ and below -45℃ as well.
Threaded Pipe Flange Description
| Flange Type | Weld Neck Flange, Socket Weld Flange, Slip On Flange, Blind Flange, Thread Flange, Lap Joint Flange, Plate Flange, Orifice Flange, Spectacle Flange, Figure 8 Flange, Paddle Blank, Paddle Spacer, Anchor Flange, Single Blind, Ring Spacer, Reducing Socket Weld flange, Reducing Weld Neck flange, Long Weld Neck Flange, SAE Flanges, Hydraulic Flanges, Customized Flanges with drawing. |
|
| Material | Carbon steel | A105, A105N, ST37.2, 20#, 35#, C40, Q235, A350 LF2 CL1/CL2, A350 LF3 CL1/CL2, A694 F42, F46, F50, F60, F65, F70, A516 Gr.60, Gr.65, Gr.70 |
| Alloy steel | A182 F11, A182 F22 | |
| Austenitic stainless steel | A182 F304/304L, F316L, A182 F316H, F310, F321, F321H, F347, F347H |
|
| Duplex stainless steel | A182 F51 | |
| Super Duplex stainless steel | A182 F53, A182 F55, A182 F60 | |
| Nickel alloy | Nickel 200, Nickel 201 | |
| Titanium alloy | Titan Gr.1, Titan Gr.2 | |
| Hastelloy | Hastelloy C-276, Hastelloy C-22, Hastelloy C-4 | |
| Inconel | Inconel 600, Inconel 625, Inconel 800, Inconel 800H |
|
| Monel | Monel 400, Monel K500 | |
| Size | DN15 - DN3000 | |
| Pressure | Class 150# - 2500#, PN 2.5- PN40, JIS 5K - 20K, 3000PSI, 6000PSI | |
| Connection Way | Flat Face (FF), Raised Face (RF), Ring Joint (RTJ), MFM, TG | |
| Standard | ASME, ANSI, DIN, EN, BS, JIS, GB, AWWA, API, SAE, GOST, MSS | |
| Technical | Forged | |
| Package | Plywood Case/ Wooden Case/ Customized Package | |
| Certificates | API, ISO, PED, EC, EU | |
