Product Details:
|
| ASME B16.5 Plate Flange Size: | 1/2" (15NB) To 48" (1200NB) DN10~DN5000 | Flanges Standards: | ASME B16.5 |
|---|---|---|---|
| Plate Flange Pressure Rating: | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS | Coating: | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold And Hot Dip Galvanized |
| Types Of Pipe Plate Flanges: | Forged | Test: | Direct-reading Spectrograph, Hydrostatic Testing Machine, X-ray Detector, UI Trasonic Flaw Detector, Magnetic Particle Detector |
| Export To: | Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, Etc | Equipment: | Press Machine, Bending Machine, Pushing Machine, Electric Bevelling Machine, Sand-blasting Machine Etc |
| High Light: | ASME B16.5 ss flange,A105 F52 ss flange,15NB ss flange |
||

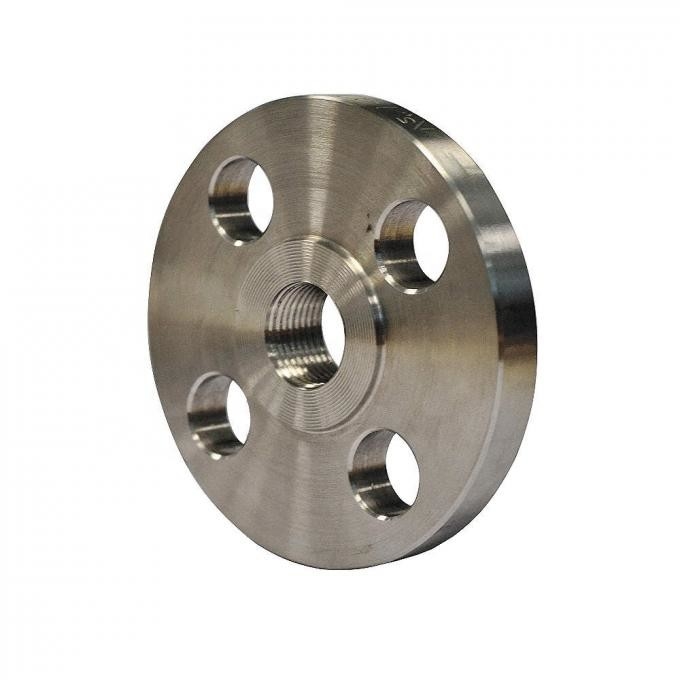

ASME B16.5 Forged RF A105 F52 Stainless Steel Pipe Plate Flange
The plate flange conforming to ASME B16.5 is a special slip on flange without hub. Plate flange can be viewed as a blind flange drilled with a bore at the center. The outside diameter, diameter of bore, flange thickness, bolting dimensions, and facing dimensions of a S/O plate flange are the same as that of a standard slip on flange of same size and class.
Although ASME B16.5 doesn’t endorse the plate flange, it doesn’t forbid the use of it either. Generally, the flange may be furnished with flat face or raised face available in Class 150.
When attaching to a pipe, the plate flange slips on the pipe till the pipe reaches a certain depth of the bore. Two circumferential fillet welds are applied to join the pipe with the plate flange, one external and one internal. The plate flanges are mainly used in utility services where short tie-ins are necessary or space limitations necessitate its use. The initial cost of a plate flange is even lower than the standard slip on flange of the same size and class.
Dimensions & Weights
| NPS | D | G | B | T |
|---|---|---|---|---|
| 1/2 | 90 | 34.9 | 22.2 | 9.6 |
| 3/4 | 100 | 42.9 | 27.7 | 11.2 |
| 1 | 110 | 50.8 | 34.5 | 12.7 |
| 1-1/4 | 115 | 63.5 | 43.2 | 14.3 |
| 1-1/2 | 125 | 73.0 | 49.5 | 15.9 |
| 2 | 150 | 92.1 | 61.9 | 17.5 |
| 2-1/2 | 180 | 104.8 | 74.6 | 20.7 |
| 3 | 190 | 127.0 | 90.7 | 22.3 |
| 4 | 230 | 157.2 | 116.1 | 22.3 |
| 5 | 255 | 185.7 | 143.8 | 22.3 |
| 6 | 280 | 215.9 | 170.7 | 23.9 |
| 8 | 345 | 269.9 | 221.5 | 27.0 |
| 10 | 405 | 323.8 | 276.2 | 28.6 |
| 12 | 485 | 381.0 | 327.0 | 30.2 |
| 14 | 535 | 412.8 | 359.2 | 33.4 |
| 16 | 595 | 469.9 | 410.5 | 35.0 |
| 18 | 635 | 533.4 | 461.8 | 38.1 |
| 20 | 700 | 584.2 | 513.1 | 41.3 |
| 24 | 815 | 692.2 | 616.0 | 46.1 |
| NPS | n | d | l | K | Mass |
|---|---|---|---|---|---|
| 1/2 | 4 | 5/8 | 1/2 | 60.3 | 0.39 |
| 3/4 | 4 | 5/8 | 1/2 | 69.9 | 0.56 |
| 1 | 4 | 5/8 | 1/2 | 79.4 | 0.75 |
| 1-1/4 | 4 | 5/8 | 1/2 | 88.9 | 0.96 |
| 1-1/2 | 4 | 5/8 | 1/2 | 98.4 | 1.27 |
| 2 | 4 | 3/4 | 5/8 | 120.7 | 1.98 |
| 2-1/2 | 4 | 3/4 | 5/8 | 139.7 | 3.20 |
| 3 | 4 | 3/4 | 5/8 | 152.4 | 3.74 |
| 4 | 8 | 3/4 | 5/8 | 190.5 | 5.04 |
| 5 | 8 | 7/8 | 3/4 | 215.9 | 5.62 |
| 6 | 8 | 7/8 | 3/4 | 241.3 | 6.73 |
| 8 | 8 | 7/8 | 3/4 | 298.5 | 10.90 |
| 10 | 12 | 1 | 7/8 | 362.0 | 14.57 |
| 12 | 12 | 1 | 7/8 | 431.8 | 22.37 |
| 14 | 12 | 1-1/8 | 1 | 476.3 | 30.44 |
| 16 | 16 | 1-1/8 | 1 | 539.8 | 38.28 |
| 18 | 16 | 1-1/4 | 1-1/8 | 577.9 | 41.42 |
| 20 | 20 | 1-1/4 | 1-1/8 | 635.0 | 53.00 |
| 24 | 20 | 1-3/8 | 1-1/4 | 749.3 | 74.15 |
Our advantage
Hebei shengtian pipe-fitting group Co., ltd. is well known Stainless Steel Plate Flange manufacturers in China. We deliver Hastelloy Plate Flange, API plate flange, PN16 plate flange & Alloy Steel Plate Flange at discounted rate . You can check our Plate Flange Pressure Ratings range and decide whether it is catering to your requirements.
We maintain extensive stock of Steel Plate Flanges.
Looking to purchase ANSI 150 plate flange at best price in China, ask price list of Backing Plate Flanges including ASME B16.47 Series a Plate Flanges, CL 600 Plate Flange and SS Plate Flanges.
