Product Details:
|
| Coating: | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold And Hot Dip Galvanized | ASME B16.5 Plate Flange Size: | 1/2" (15 NB) To 48" (1200NB) DN10~DN5000 |
|---|---|---|---|
| Flanges Standards: | DIN | Plate Flange Pressure Rating: | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Equipment: | Press Machine, Bending Machine, Pushing Machine, Electric Bevelling Machine, Sand-blasting Machine Etc | Types Of Pipe Plate Flanges: | Forged |
| Test: | Direct-reading Spectrograph, Hydrostatic Testing Machine, X-ray Detector, UI Trasonic Flaw Detector, Magnetic Particle Detector | Export To: | Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, Etc |
| High Light: | DIN 2573 stainless steel flange,Dn200 stainless steel flange,Pn6 stainless steel flange |
||

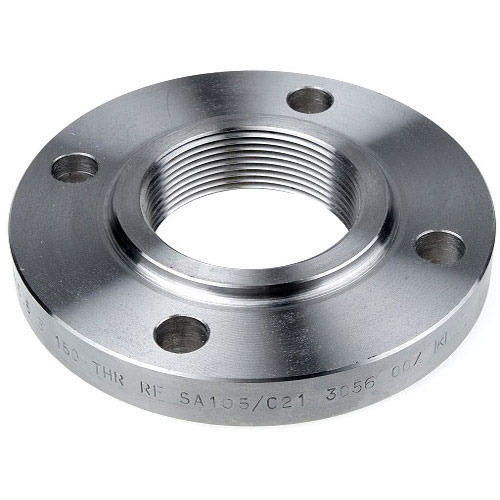

DIN 2573 Dn200 Pn6 Stainless Steel Pipe Plate Flange for Gas Industry
Usually, the DIN standard will accompany the Nominal pressure rating, which in the instance of DIN 2573 PN6 Flange is approx 6 bar. While flanges have many functions, the type of flanges used will determine its use in any application. Usually, a DIN 2573 PN6 Blind Flange is used to shut-off or seal off a valve in a piping system, thus effectively shutting off the flow of media across. This DIN standard covers pressure-temperature ratings, marking, materials, DIN 2573 Standard Flange Dimension, tolerances, testing, along with various methods of designated openings for pipe flanges as well as for flanged fittings.
What Is DIN 2573 PN6 Flange?
To manufacture DIN 2573 PN 6 dn 100 Flange, materials such as Inconel, Incoloy, Monel, Nickel, Hastalloy, Titanium, Stainless Steel, Carbon Steel, Duplex Steel as well as Alloy Steel are used by manufacturers make good quality flanges. However, the most commonly used alloys amongst them used for the production of DIN 2573 Flange is stainless steel and carbon steel, If required, buyers can choose from any one of the following surface treatments ie. Transparent/ Yellow/ Black Anti-rust Paint, Zinc, Anti-rust Oil, Hot dipped Galvanization to be used on the Stainless Steel 2573 PN6 Plate Flange.
DIN 2573 PN6 Flange Dimensions
| NPS | Flanges | Screws | Weight (7,85 Kg/dm3) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Diam. |
d1 | d5 | D | b | c | k | Holes | Thread | d2 | Kg | |
| ISO Series 1 | DIN Series 2 | ||||||||||
| 15 | - | 20 | 21 | 80 | 12 | 5 | 55 | 4 | M 10 | 11 | 0,41 |
| 21,3 | - | 22 | |||||||||
| 20 | - | 25 | 26 | 90 | 14 | 5 | 65 | 4 | M 10 | 11 | 0,60 |
| 26,9 | - | 27,6 | |||||||||
| 25 | - | 30 | 31 | 100 | 14 | 5 | 75 | 4 | M 10 | 11 | 0,74 |
| 33,7 | - | 34,4 | |||||||||
| 32 | - | 38 | 39 | 120 | 16 | 5 | 90 | 4 | M 12 | 14 | 1,19 |
| 42,4 | - | 43,1 | |||||||||
| 40 | - | 44,5 | 45,5 | 130 | 16 | 5 | 100 | 4 | M 12 | 14 | 1,39 |
| 48,3 | - | 49 | |||||||||
| 50 | - | 57 | 58,1 | 140 | 16 | 6 | 110 | 4 | M 12 | 14 | 1,53 |
| 60,3 | - | 61,1 | |||||||||
| 65 | 76,1 | - | 77,1 | 160 | 16 | 6 | 130 | 4 | M 12 | 14 | 1,89 |
| 80 | 88,9 | - | 90,3 | 190 | 18 | 7 | 150 | 4 | M 16 | 18 | 2,98 |
| 100 | - | 108 | 109,6 | 210 | 18 | 7 | 170 | 4 | M 16 | 18 | 3,46 |
| 114,3 | - | 115,9 | |||||||||
| 125 | - | 133 | 134,8 | 240 | 20 | 7 | 200 | 8 | M 16 | 18 | 4,60 |
| 139,7 | - | 141,6 | |||||||||
| 150 | - | 159 | 161,1 | 265 | 20 | 7 | 225 | 8 | M 16 | 18 | 5,22 |
| 168,3 | - | 170,5 | |||||||||
| 200 | 219,1 | - | 221,8 | 320 | 22 | 7 | 280 | 8 | M 16 | 18 | 7,15 |
| 250 | - | 267 | 270,2 | 375 | 24 | 7 | 335 | 12 | M 16 | 18 | 9,61 |
| 273 | - | 276,2 | |||||||||
| 300 | 323,9 | - | 327,6 | 440 | 24 | 7 | 395 | 12 | M 20 | 22 | 12,60 |
| 350 | 355,6 | - | 359,7 | 490 | 26 | 7 | 445 | 12 | M 20 | 22 | 15,60 |
| - | 368 | 372,2 | |||||||||
| 400 | 406,4 | - | 411 | 540 | 28 | 7 | 495 | 16 | M 20 | 22 | 18,40 |
| - | 419 | 423,7 | |||||||||
| (450)* | 457 | - | 462,5 | 595 | 30 | 7 | 550 | 16 | M 20 | 22 | 21,40 |
| 500 | 508 | - | 531,6 | 645 | 30 | 7 | 600 | 20 | M 20 | 22 | 24,60 |
| Temperature (in F°) | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| < 100 | 285 | 740 | 985 | 1480 | 2220 | 3705 | 6170 |
| 200 | 260 | 680 | 905 | 1360 | 2035 | 3395 | 5655 |
| 300 | 230 | 655 | 870 | 1310 | 1965 | 3270 | 5450 |
| 400 | 200 | 635 | 845 | 1265 | 1900 | 3170 | 5280 |
| 500 | 170 | 605 | 805 | 1205 | 1810 | 3015 | 5025 |
| 600 | 140 | 570 | 755 | 1135 | 1705 | 2840 | 4730 |
| 650 | 125 | 550 | 730 | 1100 | 1650 | 2745 | 4575 |
| 700 | 110 | 530 | 710 | 1060 | 1590 | 2655 | 4425 |
| 750 | 95 | 505 | 675 | 1015 | 1520 | 2535 | 4230 |
| 800 | 80 | 410 | 550 | 825 | 1235 | 2055 | 3430 |
| 850 | 65 | 320 | 425 | 640 | 955 | 1595 | 2655 |
| 900 | 50 | 230 | 305 | 460 | 690 | 1150 | 1915 |
| 950 | 35 | 135 | 185 | 275 | 410 | 685 | 1145 |
| 1000 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| Hydrostatic Test (psig) | 450 | 1125 | 1500 | 2225 | 3350 | 5575 | 9275 |
| NPS NPS (inch) |
|||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) |
No. of Bolts |
Diammeter of Bolts (inch) |
Diammeter of Bolt Holes (inch) |
Bolt Circle (inch) |
|
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
