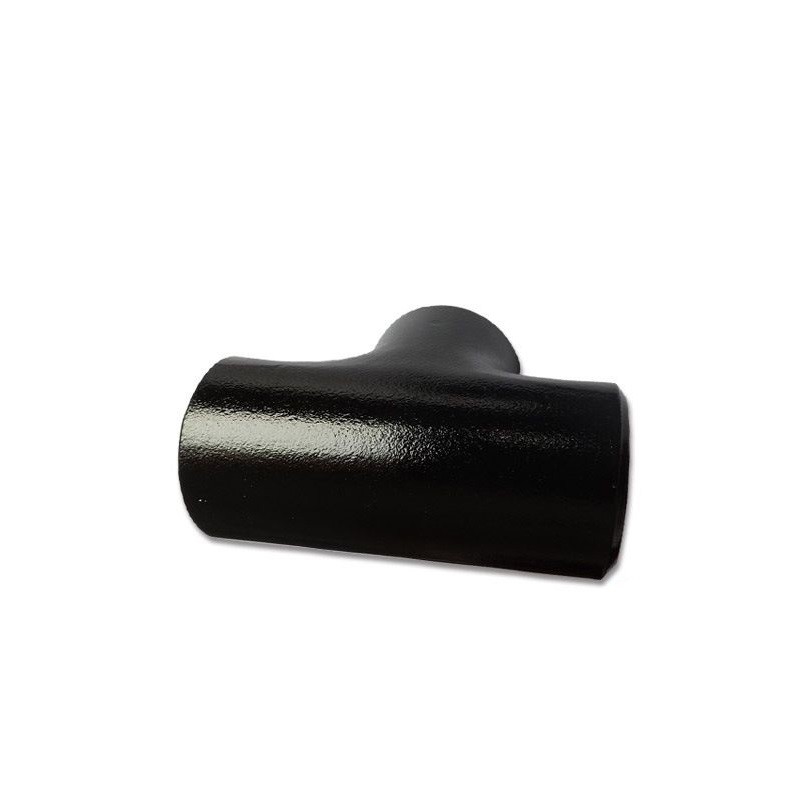

ASME B16.9 Butt Weld A234 Wpb Carbon Steel Pipe Fitting Tee

ASME B16.9 Butt Weld A234 Wpb Carbon Steel Pipe Fitting Tee
ASME B16.9 Butt Weld A234 Wpb Carbon Steel Pipe Fitting Tee ASME B16.9 Butt Weld A234 Wpb Carbon Steel Pipe Fitting Tee

Large Image :  ASME B16.9 Butt Weld A234 Wpb Carbon Steel Pipe Fitting Tee

Product Details:
Place of Origin: Mengcun County,China
Brand Name: Shengtian
Certification: SGS/ISO9000/EN10204 3.1B/TUV
Model Number: pipe fitting 021
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 1-9 Pieces US $2.51/piece; >10 Pieces US $2.34/piece
Packaging Details: Plywood Cases, Pallets,Wooden Catron
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600000 pieces/month

ASME B16.9 Butt Weld A234 Wpb Carbon Steel Pipe Fitting Tee

Description
Material: Carbon Steel Shape: Straight
Type: Tee Size: 1/2''-72'
Standard: ASME B16.9 Usage: Oil Gas Water Industrial,Convey Water
Color: Black Thickness: STD
High Light:

buttweld carbon steel pipe tee

,

A234 carbon steel pipe tee

,

ASME B16.9 carbon steel tee

      ASME B16.9 Butt Weld A234 Wpb Carbon Steel Pipe Fittings Tee



  Our butt weld pipe fitting tees are carefully crafted to avoid internal flattening or other distortions that could imperil pipeline joint strength. Smaller diameter tees may be made from seamless pipe. Our larger tees are rolled, welded, and NDE inspected on site. As a top butt weld pipe fitting tee manufacturer, we are confident that our butt weld pipe fitting tee that leaves our facility will meet the quality-control standards of any company in the world.



      Butt Weld A234 Wpb Carbon Steel Pipe Fittings Tee Specification



Type Butt weld (BW)
Butt weld (BW) Standard ASME / ANSI – B 16.9
ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’
API 590-605
ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings’
ASME B16.25 – ‘Buttwelding Ends’
ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’
MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Butt Weld Reducing Tee Dimension ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313
Butt Weld Reducing Tee Size 1/2” TO 36”, (Seamless Butt weld up to 24”), (Welded Butt weld 8” TO 36”)
Butt Weld Reducing Tee Thickness SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness.
Butt weld fittings Range Elbow, Tee, Reducer, Stubend, Cross, Pipe Cap, Pipe Bend
Stainless Steel Butt Weld Reducing Tee ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L
DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Duplex Steel Butt Weld Reducing Tee ASTM A815, ASME SA815 UNS No S31803, S32205
ASTM A815, ASME SA815 UNS No S32750, S32950
Carbon Steel Butt Weld Reducing Tee ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
ASTM A234 Gr WPB ST37.2, ST35
ASTM / ASME A/SA 234 / 420 WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Low Temperature Butt Weld Reducing Tee ASTM A420 WPL3, A420 WPL6
Alloy Steel Butt Weld Reducing Tee ASTM A 234 WP – P5, P9, P11, P12, P21, P22 & P91
ASTM A234 wp1 / wp5 / wp9 / wp11 / wp22 / wp91
Copper Alloys Butt Weld Reducing Tee ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500
ASTM / ASME SB 466 UNS NO. C 70600 (CU -NI- 90/10) , C 71500 (CU -NI- 70/30)
Copper Nickel
Cupro-Nickel 90/10
Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Nickel Alloy Butt Weld Reducing Tee ASTM / ASME SB 366, ASTM / ASME SB 564, Inconel 600 – UNS N06600, Inconel 601 – UNS N06601, Inconel 625 – UNS N06625, Incoloy 800 – UNS N08800, Incoloy 800H / HT – UNS N08810, Incoloy 825 – UNS N08825



      Butt Weld A234 Wpb Carbon Steel Pipe Fittings Tee Dimensions



Nom pipe size, in.
Sch*
Dimensions in mm
Weight
Run Outlet   D D1 t t1 C M kg/pce
3/4
1/2
10s
40s
80s
26.7
26.7
26.7
21.3
21.3
21.3
2.11
2.87
3.91
2.11
2.77
3.73
29
29
29
29
29
29
0.110
0.150
0.190
1
1/2
10s
40s
80s
33.4
33.4
33.4
21.3
21.3
21.3
2.77
3.38
4.55
2.11
2.77
3.73
38
38
38
38
38
38
0.190
0.220
0.281
1
3/4
10s
40s
80s
33.4
33.4
33.4
26.7
26.7
26.7
2.77
3.38
4.55
2.11
2.87
3.91
38
38
38
38
38
38
0.190
0.230
0.270
1/2
40s 42.2 21.3 3.56 2.77 47.6 47.6 0.367
3/4
10s
40s
42.2
42.2
26.7
26.7
2.77
3.56
2.11
2.87
47.6
47.6
47.6
47.6
0.440
0.530
1
10s
40s
80s
42.2
42.2
42.2
33.4
33.4
33.4
2.77
3.56
4.85
2.77
3.38
4.55
47.6
47.6
47.6
47.6
47.6
47.6
0.450
0.530
0.600
1/2
10s
40s
48.3
48.3
21.3
21.3
2.77
3.68
2.11
2.77
57
57
57
57
0.390
0.520
3/4
10s
40s
80s
48.3
48.3
48.3
26.7
26.7
26.7
2.77
3.68
5.08
2.11
2.87
3.91
57
57
57
57
57
57
0.390
0.520
0.690
1
10s
40s
80s
48.3
48.3
48.3
33.4
33.4
33.4
2.77
3.68
5.08
2.77
3.38
4.55
57
57
57
57
57
57
0.420
0.550
0.724
2
3/4
10s
40s
80s
60.3
60.3
60.3
26.7
26.7
26.7
2.77
3.91
5.54
2.11
2.87
3.91
64
64
64
44
44
44
0.510
0.710
0.990
2
1
10s
40s
80s
60.3
60.3
60.3
33.4
33.4
33.4
2.77
3.91
5.54
2.77
3.38
4.55
64
64
64
51
51
51
0.540
0.740
1.020
2
10s
40s
80s
60.3
60.3
60.3
42.2
42.2
42.2
2.77
3.91
5.54
2.77
3.56
4.85
64
64
64
57
57
57
0.571
0.804
1.07
2
10s
40s
60.3
60.3
48.3
48.3
2.77
3.91
2.77
3.68
64
64
60
60
0.590
0.830
10s 73.0 42.2 3.05 2.77 76 67 0.874





      Product Picture



ASME B16.9 Butt Weld A234 Wpb Carbon Steel Pipe Fitting Tee 0
