Product Details:
|
| Port: | Tianjin | Color: | Black |
|---|---|---|---|
| Type: | Elbow | Size: | Customized Size |
| Standard: | ANSI | Application: | Gas,Petroleum, Chemical, Power |
| Wall Thickness: | SCH10 | Advantage: | Reasonable Price With Excellent Quality |
| High Light: | asme 6 45 degree elbow,asme 6 inch 45 degree elbow,SCH80 6 inch 45 degree elbow |
||

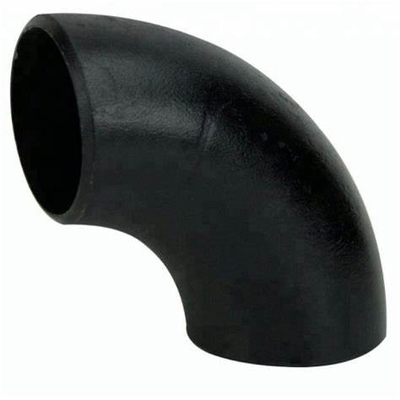

ASME 6In 45 Degree Long Radius Joint Carbon Steel Pipe Fitting Elbow
ASME Elbow is a standard specification for Piping Fittings of Carbon Steel .ASME Elbows are devided into two categories which define the distance over which they change direction; the center line of one end to the opposite face. This is called as the "center to face" distance and is equivalent to the radius through which the ASME Elbow is bent. ASME SCH 80 Elbow, ASME WPB Reducer Elbow, ASME Sr Elbow & Elbow 90 ASME WPB, which are manufactured from bar or plate may have 0.35 max carbon.
Extra Strong Pipe Fitting Elbow
| Nominal Pipe Size |
Outside Diameter |
Inside Diameter |
Wall Thickness |
Center To End |
Pipe Schedule |
Weight Pounds |
| 1/2 | 0.84 | 0.546 | 0.147 | 0.62 | 80 | 0.15 |
| 3/4 | 1.05 | 0.742 | 0.154 | 0.75 | 80 | 0.16 |
| 1 | 1.32 | 0.957 | 0.179 | 0.88 | 80 | 0.28 |
| 1 1/4 | 1.66 | 1.28 | 0.191 | 1 | 80 | 0.45 |
| 1 1/2 | 1.9 | 1.5 | 0.2 | 1.12 | 80 | 0.61 |
| 2 | 2.38 | 1.94 | 0.218 | 1.38 | 80 | 1.2 |
| 2 1/2 | 2.88 | 2.32 | 0.276 | 1.75 | 80 | 2 |
| 3 | 3.5 | 2.9 | 0.3 | 2 | 80 | 3.3 |
| 3 1/2 | 4 | 3.36 | 0.318 | 2.25 | 80 | 4.5 |
| 4 | 4.5 | 3.83 | 0.337 | 2.5 | 80 | 6.2 |
| 5 | 5.56 | 4.81 | 0.375 | 3.12 | 80 | 10.5 |
| 6 | 6.62 | 5.76 | 0.432 | 3.75 | 80 | 17 |
| 8 | 8.62 | 7.63 | 0.5 | 5 | 80 | 34.3 |
| 10 | 10.75 | 9.75 | 0.5 | 6.25 | 60 | 53.5 |
| 12 | 12.75 | 11.75 | 0.5 | 7.5 | * | 77.6 |
| 14 | 14 | 13 | 0.5 | 8.75 | * | 100 |
| 16 | 16 | 15 | 0.5 | 10 | 40 | 134 |
| 18 | 18 | 17 | 0.5 | 11.25 | * | 170 |
| 20 | 20 | 19 | 0.5 | 12.5 | 30 | 209 |
| 24 | 24 | 23 | 0.5 | 15 | * | 302 |
| 30 | 30 | 29 | 0.5 | 18.5 | 20 | 475.1 |
| 36 | 36 | 35 | 0.5 | 22.25 | 20 | 686.1 |
| 42 | 42 | 41 | 0.5 | 26 | * | 936.1 |
| 48 | 48 | 47 | 0.5 | 29.88 | * | 1250 |
| Nominal Pipe Size |
Outside Diameter |
Inside Diameter |
Wall Thickness |
Center To End |
Pipe Schedule |
Weight Pounds |
| 1/2 | 0.84 | 0.622 | 0.109 | 0.62 | 40 | 0.09 |
| 3/4 | 1.05 | 0.824 | 0.113 | 0.75 | 40 | 0.1 |
| 1 | 1.32 | 1.05 | 0.133 | 0.88 | 40 | 0.22 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 1 | 40 | 0.33 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 1.12 | 40 | 0.43 |
| 2 | 2.38 | 2.07 | 0.154 | 1.38 | 40 | 0.85 |
| 2 1/2 | 2.88 | 2.47 | 0.203 | 1.75 | 40 | 1.7 |
| 3 | 3.5 | 3.07 | 0.216 | 2 | 40 | 2.5 |
| 3 1/2 | 4 | 3.55 | 0.226 | 2.25 | 40 | 3.4 |
| 4 | 4.5 | 4.03 | 0.237 | 2.5 | 40 | 4.5 |
| 5 | 5.56 | 5.05 | 0.258 | 3.12 | 40 | 7.5 |
| 6 | 6.62 | 6.06 | 0.28 | 3.75 | 40 | 11.7 |
| 8 | 8.62 | 7.98 | 0.322 | 5 | 40 | 23.3 |
| 10 | 10.75 | 10.02 | 0.365 | 6.25 | 40 | 40.9 |
| 12 | 12.75 | 12 | 0.375 | 7.5 | * | 61.4 |
| 14 | 14 | 13.25 | 0.375 | 8.75 | 30 | 78.1 |
| 16 | 16 | 15.25 | 0.375 | 10 | 30 | 101 |
| 18 | 18 | 17.25 | 0.375 | 11.25 | * | 128 |
| 20 | 20 | 19.25 | 0.375 | 12.5 | 20 | 159 |
| 24 | 24 | 23.25 | 0.375 | 15 | 20 | 231 |
| 30 | 30 | 29.25 | 0.375 | 18.5 | * | 358 |
| 36 | 36 | 35.25 | 0.375 | 22.25 | * | 518 |
| 42 | 42 | 41.25 | 0.375 | 26 | * | 707 |
| 48 | 48 | 47.25 | 0.375 | 29.88 | * | 1,000 |
Packing
