A234 Wp11 16" Sch80 Cs Elbow Carbon Steel Pipe Fitting

Certification
China Hebei Shengtian Pipe Fittings Group Co., Ltd. certification
China Hebei Shengtian Pipe Fittings Group Co., Ltd. certification
Customer Reviews
A very pleasant purchase!

—— Chuthala

The elbow we bought there are no tolerance , thickness ok , ovality ok, Radius also no problem , we will have a long term cooperate ralationship.

—— Reza

The quality of pipe fittings is very good

—— Pierre fokom

We not only use pipe fittings ourselves, but also share them with my friends.

—— Mos, nutchapong

I'm Online Chat Now

A234 Wp11 16" Sch80 Cs Elbow Carbon Steel Pipe Fitting

A234 Wp11 16" Sch80 Cs Elbow Carbon Steel Pipe Fitting
A234 Wp11 16" Sch80 Cs Elbow Carbon Steel Pipe Fitting
A234 Wp11 16" Sch80 Cs Elbow Carbon Steel Pipe Fitting A234 Wp11 16" Sch80 Cs Elbow Carbon Steel Pipe Fitting A234 Wp11 16" Sch80 Cs Elbow Carbon Steel Pipe Fitting

Large Image :  A234 Wp11 16" Sch80 Cs Elbow Carbon Steel Pipe Fitting

Product Details:
Place of Origin: China
Brand Name: ST
Certification: ISO9000/EN10204 3.1B/BV/TUV/SGS
Model Number: elbow 026
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: 1-10 Pieces US $1.96/piece; >10 Pieces US $1.52/piece
Packaging Details: in Wooden Cases or Customers Requirements
Delivery Time: 7-14 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 pieces/month

A234 Wp11 16" Sch80 Cs Elbow Carbon Steel Pipe Fitting

Description
Material: Alloy Technics: Equal
Shape: Round Type: Elbow
Wall Thickness: 5s-Xxs Head Code: Round
Port: China Payment Terms: L/C, T/T
High Light:

a234 wp11 cs elbow

,

16" cs elbow

,

sch80 a234 elbow

A234 Wp11 16" Sch80 Carbon Steel Elbow Pipe Fitting



Product Description



Specifications ASTM A234 / ASME SA234
Form Tee, Cross, Reducer, Elbow, Bend, Cap, Nipples Stub end
Dimensions ASME B16.28, ASME/ANSI B16.9, MSS-SP-43
Thickness Sch 5s, Sch XXS, Sch 160s, Sch 10s, Sch 80s, Sch 40s
Type Welded / Seamless / Fabricated
Size 1/8" NB TO 48" NB.



Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elongation %
A234 WP11 ≥590 ≥415 ≥20



Grade C Mn Si S P Cr Mo
A234 WP11 0.08-0.12 0.3-0.6 0.2-0.5 ≤0.02 ≤0.015 8-9.5 0.85-1.05



S/O MATERIAL SIZE SHCEDULE SPECIFICATION ITEM
1 carbon steel Pipe Fitting 15 NB -
500 NB
sch 40 - sch XXS A234 WPB B/W
seamless
ANSI B16.9
Bend(Long&Short)
Elbow(180/90/45)
Tee(Equal& unequal)
Reducer(Con&Ecc)
Cap
Stubend(Long&Short)
Nipple
200 NB - 600 NB sch 10 - sch 80s A234 WPW B/W
welded
ANSI B16.9
2 low temperature carbon steel Pipe Fitting 15 NB -
300 NB
sch 40 - sch XXS A420 WPL6 B/W
seamless
ANSI B16.9
200 NB - 600 NB sch 10 - sch 80s A420 WPL6 B/W
weled
ANSI B16.9



pipe fitting
Standard
carbon steel pipe fittings elbow can be produced according to the standard
GB/T12459 GB/T13401 ASME B16.9 SH3408 SH3409 HG/T21635 HG/T21631 SY/T05010 ASME B16.9 ASME B16.28 ASME B16.11 DIN2605 DIN2617 DIN2516 JISB2311
pipe fitting
Matarial
carbon steel pipe fitting elbow of material as following :
20G,16Mn(Q345B,C,D)

A106B,A106C, SA210C,SA210A,12Cr1MoV(G)
13CrMo44(A335P12(K11562,STFA22,15CrMo,P11,1.25Cr0.5Mo,T11),
10CrMo910(A335P22,K21590,12Cr2Mo,STFA24,STPA24,STBA24),
A335P5(K41545,STFA25,STBA25,STPA25,Cr5Mo
A335P9(S50400,Cr9Mo,STPA26,STBA26,STFA26),
A335P91(K91560,T91,T91,SA213T91,10Cr9Mo1VNb)
WB36(15NiCuMoNB5),
Wall thickness Sch5-Sch160XXS
pipe fitting Size 1/2"~48"
pipe fitting Type Forged ( carbon steel pipe fitting elbow )
Packing Details Wooden Box,
Delivery time Within 20-30 days after received down payment. 5 days for stock items
Payment Terms L/C T/T
Shipment Terms FOB CFR CIF



Company introduction



 Established in 1989, Hebei Shengtian Pipe-Fitting Group Co., Ltd. located in Mengcun County Hebei Province China, covering a land area of 100,000 square meters, with a workshop of 25,000 square meters and registered capital of 110 million RMB. Our company has a strong staff team. There are over 360 employees, including over 30 professionals and technicians.

  We are capable of manufacturing various pipe fittings. Our main products scope: steel elbow, tees, bends, reducers, caps, forged flanges and sockets. We have been in this line for over 20 years. Our products are exported to many countries and regions, such as Southeast Asia, the Middle East, Europe and America etc. Our pipes and pipe fittings enjoy a good reputation in domestic and foreign markets. Every year, hundreds of foreign visitors and innumerable domestic visitors come to our company for business cooperation.

  We have first-class inspection devices, perfect detecting means and well-trained specialists. And we stick to ISO9000:2000 quality system and efficiently control procedure in production. We have confidence that we can supply the best quality products. We would like to take responsibility for any quality uncertainty. Even so, our price is competitive. Besides, we can provide the best service to you.

  In order to avoid the policy of the anti-dumping duties imposed on pipe & fittings from the Europe, United States and other countries, We can re-export through other countries like Malaysia, etc, to circumvent the anti-dumping duties, which could make you to win more competitive price.



Product Details



A234 Wp11 16" Sch80 Cs Elbow Carbon Steel Pipe Fitting 0

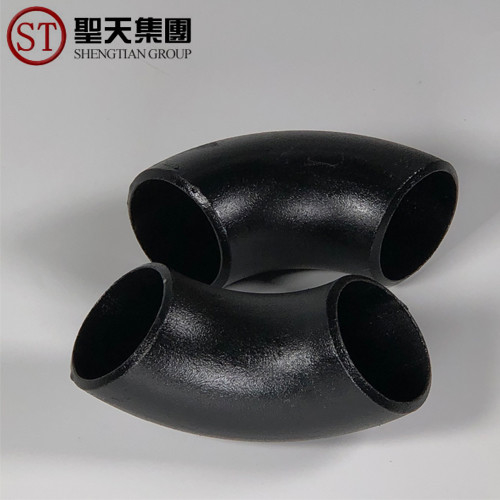

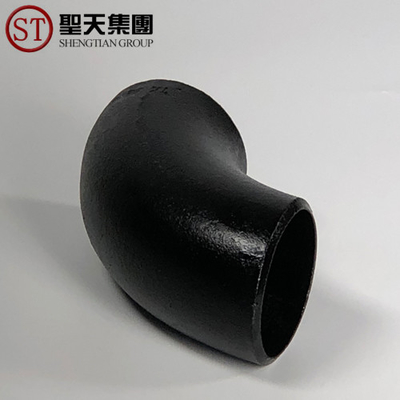

Carbon Steel Elbow pipe fitting PRODUCT SHOW



A234 Wp11 16" Sch80 Cs Elbow Carbon Steel Pipe Fitting 1



FAQ


Q: Are you trading company or manufacturer ?
A: We are directly pipe fitting factory founded in 2001, which has much longer history than other fellow suppliers. Our factory certified by ISO, EN
API, capable of producing various kind of steel pipe fittings.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: I haven't done business with you guys before,how can I trust your company?

A: Our company established in 2006, we do pipe&fitting exporting work more than 15 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, API, Alibaba onsite check certificate.
Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or
you just need one piece, we would be very likely to make the MOQ as 1 piece for you.
