Product Details:
|
| Technics: | Forged | Shape: | Round |
|---|---|---|---|
| Material: | Carbon Steel | Connection: | Welding |
| Color: | Black | Type: | Elbow |
| Size: | 1/2"~24" | Standard: | ASTM |
| High Light: | a106b pipe fitting elbow,sch std pipe fitting elbow,sch std carbon steel pipe elbow |
||
Seamless Carbon Steel A234 WPB Pipe Fittings SCH80 90 Degree Long Radius Elbow
The pipe fitting elbow radius mean curvature radius. If the radius is the same as pipe diameter, it called short radius pipe fitting elbow, also called SR pipe fitting elbow, normally for low pressure and low speed pipelines.
If the radius is larger than pipe diameter, R ≥ 1.5 Diameter, then we call it a long radius pipe fitting elbow (LR Elbow), applied for high pressure and high flow rate pipelines.
Product Description
| Seamless Carbon Steel A234 WPB Pipe Fittings SCH80 90 Degree Long Radius Elbow | |
| Standards | ASME/ANSI B16.9, ASME/ANSI B16.11, ASME/ANSI B16.28,JIS B2311, JIS B2312, DIN 2605, DIN 2615, DIN 2616, DIN 2617, BS 4504, GOST 17375, GOST 30753, GOST 17378 |
| Bending radius | Short Radius(SR), Long Radius(LR), 2D, 3D, 5D, multiple |
| Degree | 45 / 90 / 180, or customized degree |
| Size Range | Seamless type: ½" up to 28" |
| Welded type: 28"-to 72" | |
| WT Schedule | SCH STD,SCH10 to SCH160, XS, XXS, |
| Carbon Steel | A234 WPB, WPC; A106B, ASTM A420 WPL9, WPL3, WPL6, WPHY-42WPHY-46, WPHY-52, WPHY-60, WPHY-65, WPHY-70, |
| Alloy Steel | A234 WP1, WP11, WP12, WP22, WP5, WP9, WP91 |
| Special Alloy Steel | Inconel 600, Inconel 625, Inconel 718, Inconel X750, Incoloy 800, |
| Incoloy 800H, Incoloy 825, Hastelloy C276, Monel 400, Monel K500 | |
| WPS 31254 S32750, UNS S32760 | |
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L, WP321, WP347, WPS 31254 |
| Duplex stainless steel | ASTM A 815 UNS S31803, UNS S32750, UNS S32760 |
| Applications | Petroleum industry, chemical, power plant, gas piping, shipbuilding. construction, sewage disposal,and nuclear power etc. |
| Packaging material | plywood cases or pallets, or as per customer's requirements |
| Production Period | 2-3weeks for normal orders |

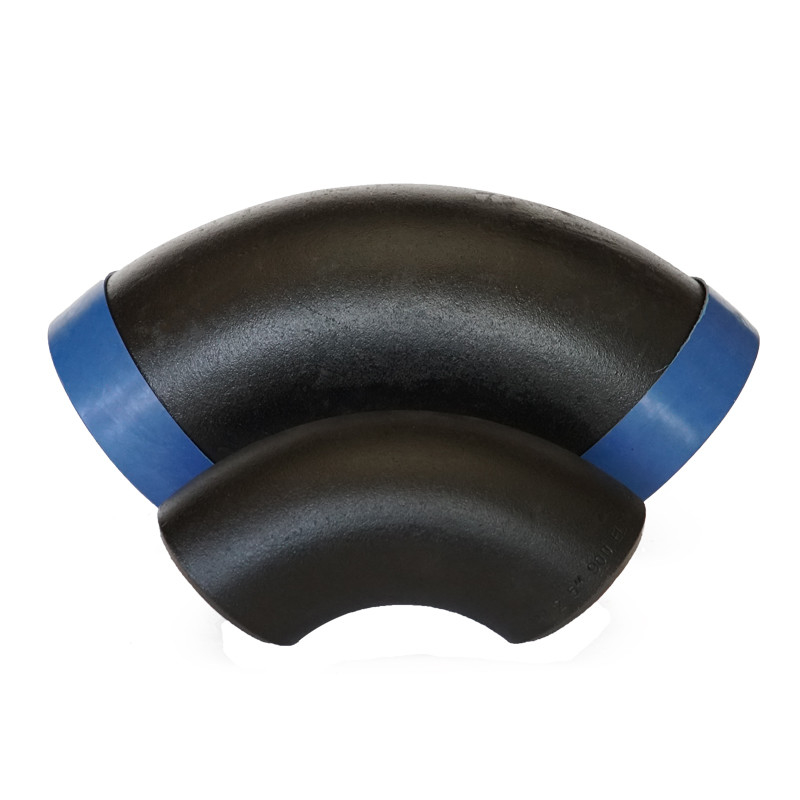

Product Picture
Certificate
Production equipment
