Product Details:
|
| Standard: | ANSI | Type: | Welding Flange |
|---|---|---|---|
| Size: | DN10-DN2000 | Shape: | Equal |
| Connection: | Welding | Inspection: | Factory In-House Self Check Or Third Party Inspect |
| Trademark: | ST | Origin: | China |
| High Light: | ansi socket weld pipe flanges,150# socket weld pipe flanges,ansi stainless steel socket weld flange |
||

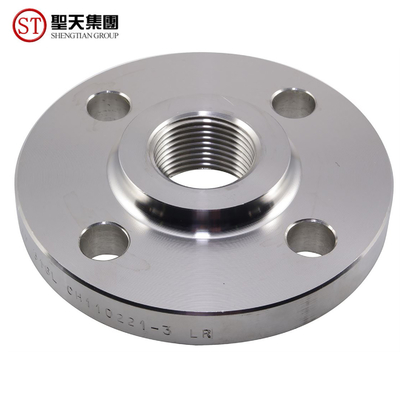

Factory Customized Wholesale Price Stainless Steel Forged Socket Weld Pipe Flange
Product Description
SW Flange (Socket Weld Flange) contain a shoulder on the inside of the flange that acts as a guide to set the depth at which the pipe is welded to the flange. They are fabricated by inserting the pipe end into the flange until it bottoms out against the shoulder, and then retracting the pipe 1/8 in before welding it in place. This practice was originally employed to reduce cracking due to thermal stresses in stainless steel superheaters, but over the years has become standard practice for the installation of all socket weld flanges (SW Flange).
Socket Weld Flanges are available in pressure from 150# and up and pipe schedule 40 to schedule 160. Specifying the pipe schedule ensures that ID of the SW Flange matches the ID of pipe for smooth fluid flow.
Mingda offers SW Flange in A105N, A105, SS316, SS304, A20, High Yield & Nickel Alloys.
A pipe flange connects piping and components in a piping system by use of bolted connections and gaskets.
Most commonly used flanges are weld neck flange, slip on flange, blind flange, socket weld flange, threaded flange and lap joint flange (RTJ Flange). This type of connection in a pipe flange allows for ease of disassembly and separation for repair and regular maintenance. Most common specification for carbon steel and stainless steel flange is ANSI B16.5 / ASME B16.5.
Metal flanges are commonly used for industrial, commercial, and institutional application. Steel pipe flanges are available in variety of styles and pressure classes. Metal flanges are classified from 150 to 2500 # rating. In addition to specifying pressure class, certain flanges such as weld neck flange & socket weld flange also require specifying the pipe schedule. This ensures the pipe bore will match the bore of the weld neck or socket weld flange.
Mingda offers wide variety of pipe flanges in carbon steel, stainless steel and nickel alloy. We can also provide special flanges such as long weld neck flange, special material request and high-yield pipe flanges.
| Porduct Name | Factory Customized Wholesale Price Stainless Steel Forged Socket Weld Pipe Flange |
| Size | 1/2"-110" |
| Pressure | 150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000 |
| Standard | BS4504,ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc. |
| Wall thickness | SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Material |
Stainless steel: A182F304/304L, A182 F316/316L, A182F321, A182F310S, A182F347H, A182F316Ti, 317/317L, 904L, 1.4301, 1.4307, 1.4401, 1.4571,1.4541, 254Mo and etc. |
|
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc. |
|
|
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,C22, C-276, Monel400, Alloy20 etc. |
|
| Application | Petrochemical industy;avation and aerospace industry;pharmaceutical industry;gas exhaust;power plant;ship buliding;water treament,etc. |
| Advantages | ready stock,faster delivery time;available in all sizes,customized;high quality |
| Flange Standard | |||||
| American Standard | ASME B16.5,ASME B16.47A,ASME B16.47B,ANSI B16.5,API605,AWWA C207 | ||||
| Japanese Standard | JISB2220 5K / 10K / 16K / 20K / 30K | ||||
| German Standard | DIN2527,2528,2561,2565,2566,2573,2576,2627-2638,2641,2642,2655,2656,2673,86029 | ||||
| British Standard | BS4504 PN16 / 25 / 40,BS10 TABLE E / TABLE D | ||||
| Italian Standard | UNI 2253,2254,2276,2278,2281,6084-6093 | ||||
| China Standard | GB/T 13402-92,GB/T9112-9124-2000,HG5010-5028 | ||||
| European Standard | EN1092-1 TYPE01/02/04/05/11/12/13/21 PN2.5-PN100 | ||||
Company Info.
Established in 1989, Hebei Shengtian Pipe-Fitting Group Co., Ltd. located in Mengcun County Hebei Province China, covering a land area of 100,000 square meters, with a workshop of 25,000 square meters and registered capital of 110 million RMB. Our company has a strong staff team. There are over 360 employees, including over 30 professionals and technicians.
We are capable of manufacturing various pipe fittings. Our main products scope: steel elbow, tees, bends, reducers, caps, forged flanges and sockets. We have been in this line for over 20 years. Our products are exported to many countries and regions, such as Southeast Asia, the Middle East, Europe and America etc. Our pipes and pipe fittings enjoy a good reputation in domestic and foreign markets. Every year, hundreds of foreign visitors and innumerable domestic visitors come to our company for business cooperation.
We have first-class inspection devices, perfect detecting means and well-trained specialists. And we stick to ISO9000:2000 quality system and efficiently control procedure in production. We have confidence that we can supply the best quality products. We would like to take responsibility for any quality uncertainty. Even so, our price is competitive. Besides, we can provide the best service to you.
In order to avoid the policy of the anti-dumping duties imposed on pipe & fittings from the Europe, United States and other countries, We can re-export through other countries like Malaysia, etc, to circumvent the anti-dumping duties, which could make you to win more competitive price.
FAQ
Q:What kind of work does your company do?
A:Our company is a professional manufacturer.
We mainly produces Nickel alloy &stainless steel & super alloy plate/pipe/coil/round bars/flange/fitting
Q:What are the advantages of your company?
A:
(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
Q:What about your price?
A:Our price is very competitive because we are a factory.
Pls feel free to contact us if you are interested in our products.
