En1092-1 Standard SCH5S Ss Plate Flange Forged Socket Weld Slip Fittings

En1092-1 Standard SCH5S Ss Plate Flange Forged Socket Weld Slip Fittings
En1092-1 Standard SCH5S Ss Plate Flange Forged Socket Weld Slip Fittings
En1092-1 Standard SCH5S Ss Plate Flange Forged Socket Weld Slip Fittings En1092-1 Standard SCH5S Ss Plate Flange Forged Socket Weld Slip Fittings

Large Image :  En1092-1 Standard SCH5S Ss Plate Flange Forged Socket Weld Slip Fittings

Product Details:
Place of Origin: China
Brand Name: ST
Certification: SGS/ISO9000/EN10204 3.1B/TUV
Model Number: pipe fitting 032
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: 1-100 pieces US $0.53/ Piece;>100 pieces US $0.41/ Piece
Packaging Details: in Wooden Cases or Customers Requirements
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000 pieces/month

En1092-1 Standard SCH5S Ss Plate Flange Forged Socket Weld Slip Fittings

Description
Connection: Welding Color: Customization
Shape: Equal Structure: Flanges
Material: Stainless Steel Specification: 1-1/4"
Port: China Trademark: ST
High Light:

en1092-1 standard ss plate flange

,

sch5s ss plate flange

,

socket weld stainless flanged fittings

En1092-1 Standard Forged Stainless Steel Socket Weld Slip Plate Pipe Flange



Product Description

Size 1/2"-110"
Pressure 150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000
Standard ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc.
Wall thickness SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
Material

Stainless steel: A182F304/304L, A182 F316/316L, A182F321, A182F310S, A182F347H, A182F316Ti, 317/317L, 904L, 1.4301, 1.4307, 1.4401, 1.4571,1.4541, 254Mo and etc.

Carbon steel: A105, A350LF2, S235Jr, S275Jr, St37, St45.8, A42CP, A48CP, E24 , A515 Gr60, A515 Gr 70 etc.

Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc.

Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.

Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,C22, C-276, Monel400, Alloy20 etc.

Cr-Mo alloy: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3,15Crmo, etc.

Application Petrochemical industy;avation and aerospace industry;pharmaceutical industry;gas exhaust;power plant;ship buliding;water treament,etc.
Advantages ready stock,faster delivery time;available in all sizes,customized;high quality



Item Description
Basic Information Material Grade WP304 , WP304L , WP304H , WP316 , WP316L , WP316Ti , WP309S , WP310S , WP321 , WP321H , WP347 , WP347H , F304 , F304L , F304H , F316 , F316L , F310S , F321 etc
Size 1/2" to 48" Sch 5S to XXS
Standard ASTM A403 etc .
Process Method Forged / Casting
Industry & Advantage Application a) Connect pipes
Advantage a) High technology ; good surface ; high quality etc
Terms & Conditions Price Item FOB , CFR , CIF or as negotiation
Payment T / T , LC or as negotiation
Delivery Time 30 working days after received your deposit ( Normally according to the order quantity )
Package Plywood case or as per customer's requirement
Quality Requirement Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable
Quality Test 100% PMI test ; Size test etc
Market Main Market Europe , Middle East , Southeast Asia , South America . Etc







NPS DN FLANGE OD FLANGE THICKNESS D SLIP ON FLANGE WEIGHT (KGS) WELD NECK FLANGE WEIGHT (KGS) BLIND FLANGE WEIGHT (KGS)
(Inches) (mm) A MM MM
1/2 15 88.9 11.2 0.4 0.5 0.4
3/4 20 98.6 12.7 0.6 0.7 0.6
1 25 108 14.2 0.8 1 0.9
1 1/ 4 32 117.3 15.7 1 1.3 1.2
1 1/ 2 40 127 17.5 1.3 1.7 1.5
2 50 152.4 19.1 2.1 2.6 2.4
2 1/ 2 65 177.8 22.4 3.3 4.1 3.9
3 80 190.5 23.9 3.9 4.9 4.9
3 1/ 2 90 215.9 23.9 4.8 6.1 6.2
4 100 228.6 23.9 5.3 6.8 7
5 125 254 23.9 6.1 8.6 8.6
6 150 279.4 25.4 7.5 10.6 11.3
8 200 342.9 28.4 12.1 17.6 19.6
10 250 406.4 30.2 16.5 24 28.6
12 300 482.6 31.8 26.2 36.5 43.2
14 350 533.4 35.1 34.6 48.4 58.1
16 400 596.9 36.6 44.8 60.6 76.1
18 450 635 39.6 48.9 68.3 93.7
20 500 698.5 42.9 61.9 84.5 122
24 600 812.8 47.8 86.9 115 185



Stainless Steel Plate Flanges Manufacturers In China



  Hebei shengtian pipe-fitting group Co., ltd is well known Stainless Steel Plate Flange manufacturers in China. We deliver Hastelloy Plate Flange, API plate flange, PN16 plate flange & Alloy Steel Plate Flange at discounted rate due to reasonable man hours in China and sufficient stock of high quality Carbon Steel Plate Flange at best price available in China. You can check our Plate Flange Pressure Ratings range and decide whether it is catering to your requirements. Check Plate Flange Dimensions In MM and Plate Flange Standard and Weight Chart.

  Hebei shengtian pipe-fitting group Co., ltd is most reliable manufacturer of DIN 2501 plate flange . We maintain extensive stock of Steel Plate Flanges. Our factory is distributor and stockist of ASME B16.5 Plate Flange, in various sizes.

  We can also provide free sample of Carbon Steel Plate Flange. Hebei shengtian pipe-fitting group Co., ltd is looking for more stockholders in Africa, Europe, Middle East, Far East Asia to sell our Class 150 Plate Flange. So mail to sale@stpipefitting.cn to become our authorised dealer & distributor of Stainless Steel Plate Flange in your country.

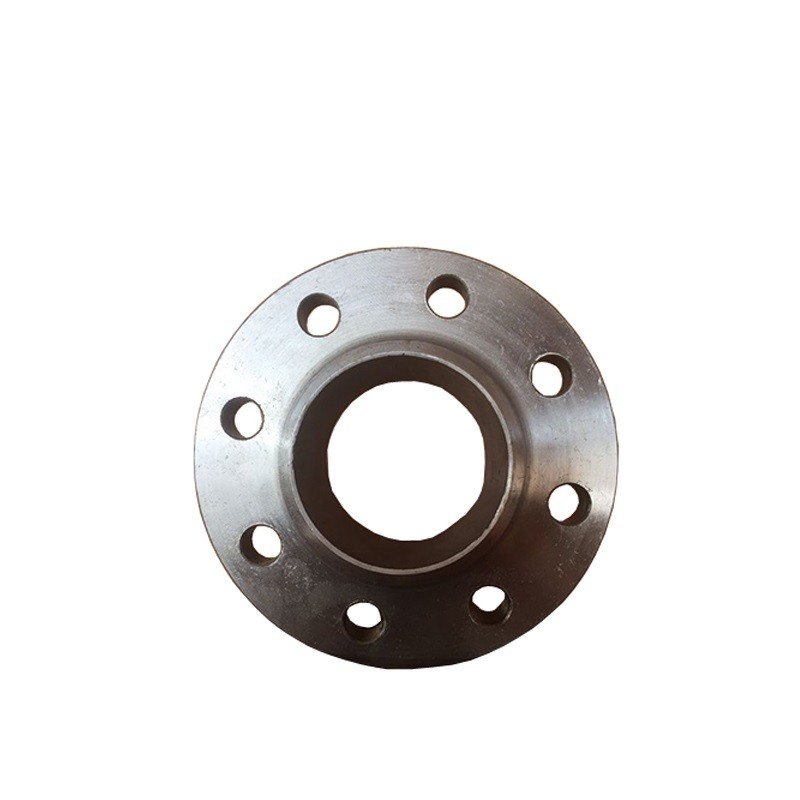

Stainless Steel Plate Flanges Picture



En1092-1 Standard SCH5S Ss Plate Flange Forged Socket Weld Slip Fittings 0




Packaging & Shipping

To protect the flange, for small size, we will pack them into plywood case. For large size, we will also pack them into plywood case and protect them very well. But if we deliver it in a container, we will load them ino pallet. It is also a protective method.
