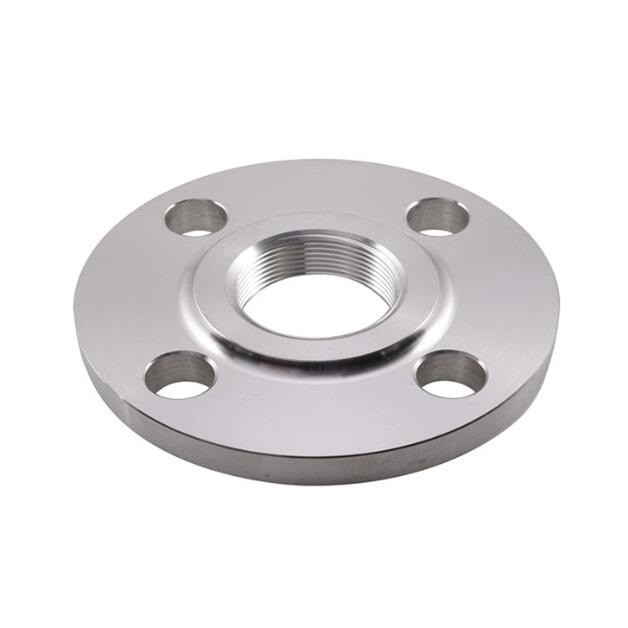

Din Pn16 Pn10 25 Threaded Pipe Flange 304 316l Raised Face Stainless Steel

Certification
China Hebei Shengtian Pipe Fittings Group Co., Ltd. certification
China Hebei Shengtian Pipe Fittings Group Co., Ltd. certification
Customer Reviews
A very pleasant purchase!

—— Chuthala

The elbow we bought there are no tolerance , thickness ok , ovality ok, Radius also no problem , we will have a long term cooperate ralationship.

—— Reza

The quality of pipe fittings is very good

—— Pierre fokom

We not only use pipe fittings ourselves, but also share them with my friends.

—— Mos, nutchapong

I'm Online Chat Now

Din Pn16 Pn10 25 Threaded Pipe Flange 304 316l Raised Face Stainless Steel

Din Pn16 Pn10 25 Threaded Pipe Flange 304 316l Raised Face Stainless Steel
Din Pn16 Pn10 25 Threaded Pipe Flange 304 316l Raised Face Stainless Steel
Din Pn16 Pn10 25 Threaded Pipe Flange 304 316l Raised Face Stainless Steel Din Pn16 Pn10 25 Threaded Pipe Flange 304 316l Raised Face Stainless Steel

Large Image :  Din Pn16 Pn10 25 Threaded Pipe Flange 304 316l Raised Face Stainless Steel

Product Details:
Place of Origin: Hebei,China
Brand Name: ST
Certification: ISO
Model Number: Threaded Pipe Flange029
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 1-9 Pieces US $15.8/piece; >10 Pieces US $14.6/piece
Packaging Details: Plywood Cases, Pallets, Nylon Bags, Wooden Catron
Delivery Time: 7-14 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000000PCS/Year

Din Pn16 Pn10 25 Threaded Pipe Flange 304 316l Raised Face Stainless Steel

Description
Standard: DIN Connection: Welding
Application: Petroleum, Chemical Industry Manufacturing Way: Forging
Material: Stainless Steel Size: DN10-DN3600
Type: Threaded Pipe Flange Surface: Anti-rust Oil
High Light:

din threaded pipe flange

,

pn16 threaded pipe flange

,

stainless steel 304 thread flange

DIN PN16 PN10 25 304 316l Raised Face Stainless Steel Pipe Threaded Flange

What Is A Stainless Steel Flange?

  Stainless steel flange, that is, the flange plate or the end flange connection piece whose body is made of stainless steel. The flanges containing stainless steel are called stainless steel flanges. Common materials are stainless steel grades 304, 304L, 316, 316L, 321, etc.

Product Description


MaterialCarbon steelASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH,Q235
P250GH, P280GHM 16MN, 20MN ,20#
Stainless steelASTM A182, F304/304L, F316/316L
Alloy steelASTM A182 A182 F12,F11,F22,F5,F9,F91etc.
StandardANSIClass 150 Flanges-Class 2500 Flanges
DIN6Bar 10Bar 16Bar 25Bar 40Bar
JIS5K Flanges-20K Flanges
UNI6Bar 10Bar 16Bar 25Bar 40Bar
EN6Bar 10Bar 16Bar 25Bar 40Bar
GB6Bar10Bar16Bar25Bar40Bar
SABST1000/3 T1600/3 T2500/3 T4000/3
TYPE1.Welding neck Flange 2.Slip on Flange
3.Blind flange 4.Long welding neck flange
5.Lap joint flange 6.Socket welding flange
7.Threaded flange 8.Flat flange
SurfaceAnti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized
ConnectionWelding, Threaded
TechnicalForged, Casting
SizeDN10-DN3600
Package

1.>Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside).
2:As Customers' Requirements

Heat TreatmentNormalizing, Annealing, Quenching Tempering
ApplicationsWater works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc.


Product Display
Din Pn16 Pn10 25 Threaded Pipe Flange 304 316l Raised Face Stainless Steel 0
Din Pn16 Pn10 25 Threaded Pipe Flange 304 316l Raised Face Stainless Steel 1
Din Pn16 Pn10 25 Threaded Pipe Flange 304 316l Raised Face Stainless Steel 2

Types Of Stainless Steel Flange


Flange StandardFlange SizeFlange PressureFlange Type
ANSI B16.51/2'-24'Class150 Class300Blind Plate Slip onWelding Neck
ASME B16.5 Class600 Class900Socket weling Threaded RTJ(tring type joint )
ASA B16.5 Class1500 Class2500Facing: FF (flat face) RF (raised face)
ANSI B16.47 (A)1/2'-60'Class150,300Slip on Welding neck RTJ(ring type joint)
  Class400,600,900Facing: FF (flat face) RF (raised face)
ANSI B16.5 (B)26'-60'Class75,150,300Slip on Welding neck RTJ(ring type joint)
   Facing: FF (flat face) RF (raised face)
ANSI B16.361"-24"Class300,400,600Slip on Welding neck Threaded RTJ
  Class900,1500,2500Facing: FF (flat face) RF (raised face)
EN1092-1 Type01DN10-DN2000pn6 pn10 pn16 pn25 pn40Plate flange
EN1092-1 Type05DN10-DN3000pn6 pn10 pn16 pn25 pn40Blind flange
EN1092-1 Type11DN15-DN3000pn6 pn10 pn16 pn25 pn40Welding neck flange
EN1092-1 Type13DN10-DN150pn6 pn10 pn16 pn25 pn40Threaded flange
EN1092-1 Type02DN15-DN1000pn6 pn10 pn16Loose flange
GOST 12820-80DN15-DN2000pn0.6MPa 1.0MPa 1.6MPaPlate flange
  pn2.5MPa 4.0MPa 6.4MPaFF(flate face) RF(raised face)
GOST 12821-80DN15-DN2000pn0.6MPa 1.0MPa 1.6MPaWelding neck flange
  pn2.5MPa 4.0MPa 6.4MPaFF(flate face) RF(raised face)
GOST 12836DN15-DN2000pn0.6MPa 1.0MPa 1.6MPaBlind flange
  pn2.5MPa 4.0MPaFF(flate face) RF(raised face)



Company Info.

Din Pn16 Pn10 25 Threaded Pipe Flange 304 316l Raised Face Stainless Steel 3


  Established in 1989, Hebei Shengtian Pipe-Fitting Group Co., Ltd. located in Mengcun County Hebei Province China, covering a land area of 100,000 square meters, with a workshop of 25,000 square meters and registered capital of 110 million RMB. Our company has a strong staff team. There are over 360 employees, including over 30 professionals and technicians.
  We are capable of manufacturing various pipe fittings. Our main products scope: steel elbow, tees, bends, reducers, caps, forged flanges and sockets. We have been in this line for over 20 years. Our products are exported to many countries and regions, such as Southeast Asia, the Middle East, Europe and America etc. Our pipes and pipe fittings enjoy a good reputation in domestic and foreign markets. Every year, hundreds of foreign visitors and innumerable domestic visitors come to our company for business cooperation.
  We have first-class inspection devices, perfect detecting means and well-trained specialists. And we stick to ISO9000:2000 quality system and efficiently control procedure in production. We have confidence that we can supply the best quality products. We would like to take responsibility for any quality uncertainty. Even so, our price is competitive. Besides, we can provide the best service to you.
  In order to avoid the policy of the anti-dumping duties imposed on pipe & fittings from the Europe, United States and other countries, We can re-export through other countries like Malaysia, etc, to circumvent the anti-dumping duties, which could make you to win more competitive price.
  Our products are in compliance with many international standards
  Pipe Standard: ASTM A53,A106,API 5L,ASME B36.10M---1996.
  Pipe-Fittings Standard: ANSI B16.9/16.28,DIN 2605 / 2616,JIS P2311 / 2312,GOST.
  Flange Standard: ANSI B16.5,DIN Series,JIS Series,GOST Series.

RFQ

  1. Can I get free samples?
  A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

  2. Can I request to change the form of packaging and transportation?
  A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs
  incurred during this period and the spreads.

  3. Can I have my own Logo on the product?
  A: Yes, you can send us your drawing and we can make your logo.

  4. Can you produce the products according to my own drawings?
  A: Yes, we can produce the products according to your drawings that will be most satisfy you.

  5. What's your terms of payment?
  A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.

  6.Do you accept custom design on size?
  A: Yes.

  7.Transportation
  Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea.
