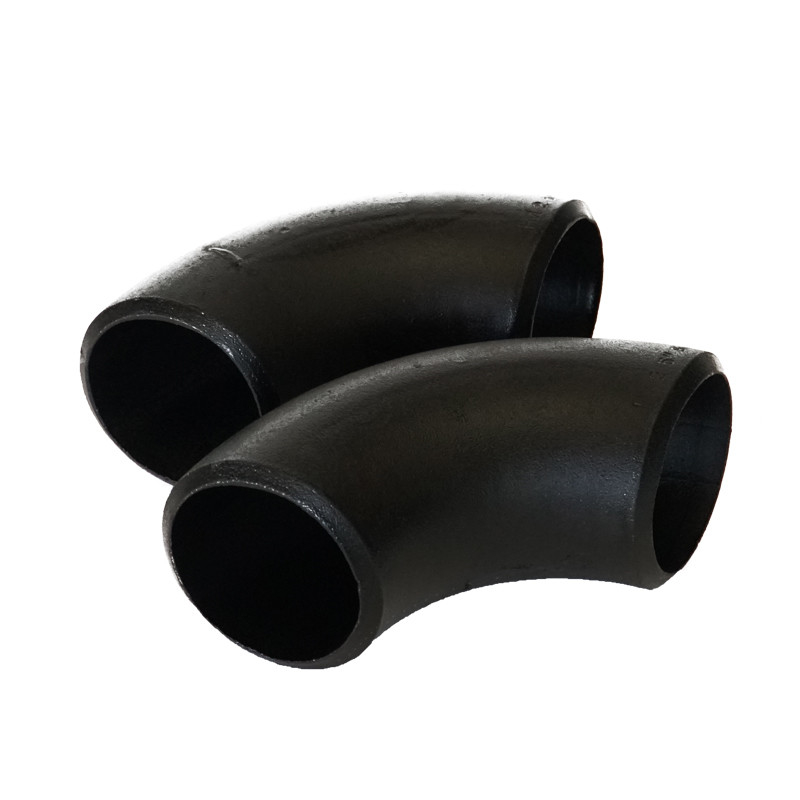

Asme B16.9 Steel Butt Welding Elbow Low Temperature Service A420 Wpl6

Asme B16.9 Steel Butt Welding Elbow Low Temperature Service A420 Wpl6
Asme B16.9 Steel Butt Welding Elbow Low Temperature Service A420 Wpl6
Asme B16.9 Steel Butt Welding Elbow Low Temperature Service A420 Wpl6 Asme B16.9 Steel Butt Welding Elbow Low Temperature Service A420 Wpl6

Large Image :  Asme B16.9 Steel Butt Welding Elbow Low Temperature Service A420 Wpl6

Product Details:
Place of Origin: China
Brand Name: ST
Certification: SGS/ISO9000/EN10204 3.1B/TUV
Model Number: pipe fitting 034
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: 1-100 pieces US $0.53/ Piece;>100 pieces US $0.41/ Piece
Packaging Details: in Wooden Cases or Customers Requirements
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000 pieces/month

Asme B16.9 Steel Butt Welding Elbow Low Temperature Service A420 Wpl6

Description
Connection: Welding Size: 1/2" -24" Seamless
Shape: Round Color: Plain
Angle: 90 Degree Origin: China
Technics: Equal
High Light:

asme b16.9 steel butt welding elbow

,

a420 steel butt welding elbow

,

low temperature service pipe weld elbows

ASME B16.9 Butt Weld Low Temperature Service Carbon Steel A420 Wpl6 Elbow Pipe Fitting



Product Description



Size: 1/2" - 56"

Schedule: SCH5 - SCH160/XXS

Standard: ANSI B16.9,MSS SP 75

Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel



Size 1/2"-36" seamless, 26"-110" welded
Standard ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, MSS SP 75, etc.
Wall thickness STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
Elbow 30° 45° 60° 90° 180°,etc
Radius LR/long radius/R=1.5D,SR/Shrot radius/R=1D
End Bevel end/BE/buttweld
Surface nature color, varnished, black painting, anti-rust oil etc.
Material Carbon steel: A234WPB, A420 WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,P235GH, P265GH, P280GH, P295GH, P355GH etc.
Pipeline steel: ASTM 1860 WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc.
Cr-Mo alloy steel: A234 WP11,WP22,WP5,WP9,WP91, 10CrMo9-10, 16Mo3 etc.
Application Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust; power plant;ship building; water treatment, etc.
Advantages ready stock,faster delivery time;available in all sizes,austomized;high quality





NPS O.D.
D
90°
Long Rad
Center to End
A
45°
Long Rad
Center to End
B
90°
3D
Center to End
A
45°
3D
Center to End
B
1/2 21.3 38 16
3/4 26.7 38 19 57 24
1 33.4 38 22 76 31
1.1/4 42.2 48 25 95 39
1.1/2 48.3 57 29 114 47
2 60.3 76 35 152 63
2.1/2 73 95 44 190 79
3 88.9 114 51 229 95
3.1/2 101.6 133 57 267 111
4 114.3 152 64 305 127
5 141.3 190 79 381 157
6 168.3 229 95 457 189
8 219.1 305 127 610 252
10 273 381 159 762 316
12 323.8 457 190 914 378
14 355.6 533 222 1067 441
16 406.4 610 254 1219 505



Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)
+ 1.6
- 0.8
1.6 1.6 + 2.4
- 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Center to End LR (A/B) 2 2 2 2
Center to End 3D (A/B) 3 3 3 3
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)
+ 4
- 3.2
+ 6.4
- 4.8
+ 6.4
- 4.8
+ 6.4
- 4.8
Inside Diameter at End 3.2 4.8 + 6.4
- 4.8
+ 6.4
- 4.8
Center to End LR (A/B) 2 2 3 5
Center to End 3D (A/B) 3 3 6 6
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness



Company introduction



 Established in 1989, Hebei Shengtian Pipe-Fitting Group Co., Ltd. located in Mengcun County Hebei Province China, covering a land area of 100,000 square meters, with a workshop of 25,000 square meters and registered capital of 110 million RMB. Our company has a strong staff team. There are over 360 employees, including over 30 professionals and technicians.

  We are capable of manufacturing various pipe fittings. Our main products scope: steel elbow, tees, bends, reducers, caps, forged flanges and sockets. We have been in this line for over 20 years. Our products are exported to many countries and regions, such as Southeast Asia, the Middle East, Europe and America etc. Our pipes and pipe fittings enjoy a good reputation in domestic and foreign markets. Every year, hundreds of foreign visitors and innumerable domestic visitors come to our company for business cooperation.

  We have first-class inspection devices, perfect detecting means and well-trained specialists. And we stick to ISO9000:2000 quality system and efficiently control procedure in production. We have confidence that we can supply the best quality products. We would like to take responsibility for any quality uncertainty. Even so, our price is competitive. Besides, we can provide the best service to you.

  In order to avoid the policy of the anti-dumping duties imposed on pipe & fittings from the Europe, United States and other countries, We can re-export through other countries like Malaysia, etc, to circumvent the anti-dumping duties, which could make you to win more competitive price.



Product Details





Asme B16.9 Steel Butt Welding Elbow Low Temperature Service A420 Wpl6 0





FAQ


Q: Are you trading company or manufacturer ?
A: We are directly pipe fitting factory founded in 2001, which has much longer history than other fellow suppliers. Our factory certified by ISO, EN
API, capable of producing various kind of steel pipe fittings.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: I haven't done business with you guys before,how can I trust your company?

A: Our company established in 2006, we do pipe&fitting exporting work more than 15 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, API, Alibaba onsite check certificate.
Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or
you just need one piece, we would be very likely to make the MOQ as 1 piece for you.
