Product Details:
|
| Material: | Stainless Steel 304L | Specification: | 1/2" - 24" |
|---|---|---|---|
| Pressure: | CL300 | Sealing Surface: | RF, FF |
| Standard: | ANSI, DIN, GB, JIS, ASME | Type: | Welding Flange |
| Product Name: | 6 Inch Forged CL300 Stainless Steel Pipe Flange Weld Neck Flange | Manufacturing Way: | Forging |
| High Light: | CL300 Stainless Steel Pipe Flange,CL300 6 Inch Weld Neck Flange,SS304L 6 Inch Weld Neck Flange |
||

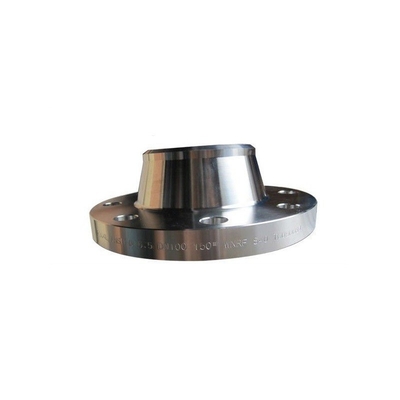

6 Inch Forged CL300 Stainless Steel Pipe Flange Weld Neck Flange
Weld neck flanges are used for a wide variety of applications which are easily identified by their long, tapered neck. The tapered neck of the weld neck flange offers strength reinforcement and support of the flange and pipe. Another feature of the weld neck flange is that the inside diameter of the flange matches that of your pipe. The weld neck flange's tapered neck makes it ideal for use in high-pressure situations and is, in fact, the most commonly used flange for high-pressure applications. weldneck flanges are also requested for use in extremely high or low temperature conditions. API Spec 6A Specified, 6 BX Weld Neck Flanges, have material and dimensions that conform to the requirements for full bore integral flanges. API Spec 6A does not specify overall length of 6BX Weld Neck Flanges, but instead provides dimensions of specific portions of the flange, with tolerance, that are added together, along with an undefined weld bevel, to achieve a length. Customers may specify weld neck length if required. No matter what size pipe you have, or material you need, we have the right weldneck flange for you.
Product Description
| Size | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Plate Fabricated Flanges |
| Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Welding Plate Flanges |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar Plate Blank Flanges |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar Square Plate Flange |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Types | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B |
| Raw Materials Certificate | |
| 100% Radiography Test Report | |
| Third Party Inspection Report, etc | |
| Plate Flange Technique | Forged, Heat treated and machined |
| Connect Type | FF,RF,RTJ |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Main Dimmensions:
| NPS | D | L | H | W |
| 1/2" | 10 | 60 | 95 | 40 |
| 3/4" | 10 | 60 | 95 | 40 |
| 1" | 14 | 70 | 102 | 50 |
| 11/4" | 20 | 80 | 124 | 60 |
| 11/2" | 24 | 85 | 144 | 60 |
| 2" | 32 | 100 | 144 | 70 |
| 21/2" | 38 | 125 | 168 | 90 |
| 3" | 50 | 150 | 192 | 90 |
| 4" | 65 | 195 | 220 | 130 |
Detailed Photos
Flange Production Process
