Product Details:
|
Standard: | EN10217-1 | Wall Thickness: | 22 Mm |
---|---|---|---|
Application: | Water System | Specification: | 2200 Mm |
Surface Treatment: | Black Paint, Fbe, 3lpe | Package: | Bulk |
High Light: | 2200mm SSAW Steel Pipe,3LPE Coating SSAW Steel Pipe,2200mm Spiral Welded Tube |

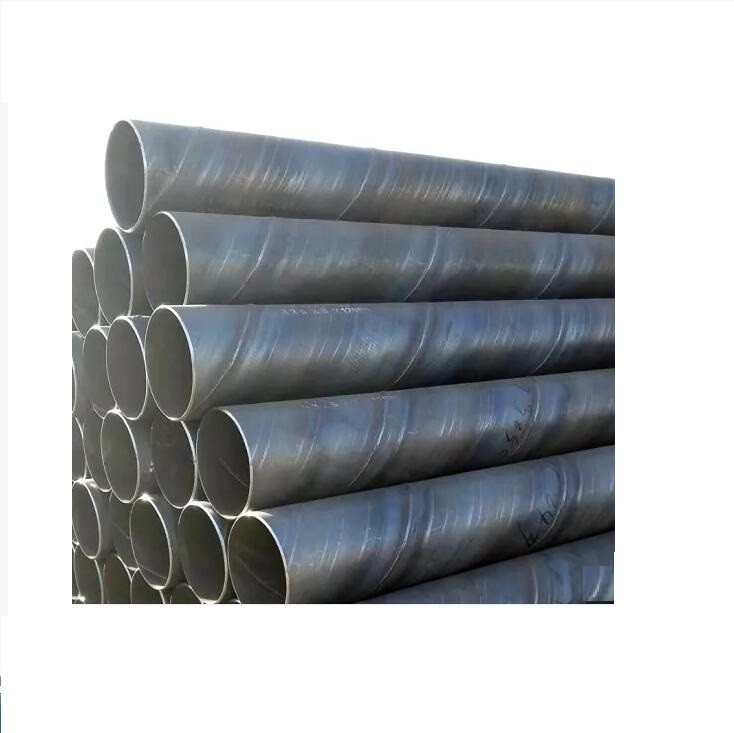

WELDED PIPE 12 METERS LENGTH EN 10217-1 , 3LPE DN 2200 MM SSAW Steel Pipe
DN 2200 MM, Thk 22 MM
3LPE external coating of 3.7 MM
FBE internal coating of 400um
SSAW Steel Pipe, we can do from 219 to 2235 mm, for water system, pollution issue. Equipped with elbow, reducer, tee, flanges and etc.
Chemical Composition Of SSAW steel pipe
Elements Material | Chemical Composition% | Mechanical Property | ||||||
C% | Mn% | S% | P% | Si% | Yield Point (Mpa) | Tensile Strength(Mpa) | Elongation (%) | |
Q195 | 0.06-0.12 | 0.25-0.50 | <0.050 | <0.045 | <0.30 | >195 | 315-430 | 32-33 |
Q215 | 0.09-0.15 | 0.25-0.55 | <0.05 | <0.045 | <0.30 | >215 | 335-450 | 26-31 |
Q235 | 0.12-0.20 | 0.30-0.70 | <0.045 | <0.045 | <0.30 | >235 | 375-500 | 24-26 |
Q345 | <0.20 | 1.0-1.6 | <0.040 | <0.040 | <0.55 | >345 | 470-630 | 21-22 |
