Pile Pipe API 18mm Spiral Submerged Arc Welded Pipe

Certification
China Hebei Shengtian Pipe Fittings Group Co., Ltd. certification
China Hebei Shengtian Pipe Fittings Group Co., Ltd. certification
Customer Reviews
A very pleasant purchase!

—— Chuthala

The elbow we bought there are no tolerance , thickness ok , ovality ok, Radius also no problem , we will have a long term cooperate ralationship.

—— Reza

The quality of pipe fittings is very good

—— Pierre fokom

We not only use pipe fittings ourselves, but also share them with my friends.

—— Mos, nutchapong

I'm Online Chat Now

Pile Pipe API 18mm Spiral Submerged Arc Welded Pipe

Pile Pipe API 18mm Spiral Submerged Arc Welded Pipe
Pile Pipe API 18mm Spiral Submerged Arc Welded Pipe Pile Pipe API 18mm Spiral Submerged Arc Welded Pipe

Large Image :  Pile Pipe API 18mm Spiral Submerged Arc Welded Pipe

Product Details:
Place of Origin: China
Brand Name: Shengtian
Certification: ISO, API, SGS, TUV, BV
Model Number: SSAW steel pipe001
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton
Price: 1-5 Tons US $702/ Ton;>5 Tons US $583/ Ton
Packaging Details: Suitable packing according to the size of the pipes
Delivery Time: 15-25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200000 Tons/year

Pile Pipe API 18mm Spiral Submerged Arc Welded Pipe

Description
Standard: API, ASTM, BS, JIS Wall Thickness: 5-18mm
Application: Pile Pipe, Water Pipe, Pollution Pipe Specification: 219-2020mm
Surface Treatment: According To Clients Requirement Package: Bundle;Bulk;Plastic Bags ,etc
High Light:

18mm Spiral Submerged Arc Welded Pipe

,

API 18mm Arc Welded Pipe

,

18mm Spiral Submerged Pipe

Pile Pipe carbon steel line pipe SSAW Steel Pipe



We are professional in supplying this kind of pipes, for use of water system, water pollution ,power plant, pipe pile etc.



Standard ASTM EN,JIS,DIN,GOST,API
Material Q235B,P235TR1,P265GH,S235JR
Size 210-2235
Thickness Sch10-Schxxs
Coating 3LPE, FBE
Application In oil and gas. Construction structure, water transport and sewage treatment, thermal industry, buildings etc.
Payment Term TT, DDP, LC, WEST UNION
Delivery time 20-30 days



Pile Pipe API 18mm Spiral Submerged Arc Welded Pipe 0

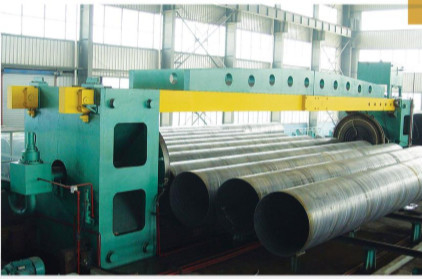

Our company has a total investment of 1.085 billion yuan, covering an area of 428 mu, to build the X100 high-steel grade submerged arc welded spiral steel pipe project. In this project, the Φ730 unit and the Φ2540 unit have been completed and put into operation. This will greatly increase our company's steel pipe production capacity



Pile Pipe API 18mm Spiral Submerged Arc Welded Pipe 1



Applications of SSAW steel pipe



  For oil and gas pipeline systems, but in petroleum design specification, the SSAW steel pipe / HSAW pipe could only be applied in oil and gas. Construction structure, water transport and sewage treatment, thermal industry, buildings etc.



Chemical Composition Of SSAW steel pipe



Standard Grade Chemical Composition(max)% Mechanical Properties(min)
C Si Mn P S Tensile Strength(Mpa) Yield Strength(Mpa)
API 5CT h40 - - - - 0.03 417 417
J55 - - - - 0.03 517 517
K55 - - - - 0.3 655 655
API 5L PSL1 A 0.22 - 0.9 0.03 0.03 335 335
B 0.26 - 1.2 0.03 0.03 415 415
X42 0.26 - 1.3 0.03 0.03 415 415
X46 0.26 - 1.4 0.03 0.03 435 435
X52 0.26 - 1.4 0.03 0.03 460 460
X56 0.26 - 1.4 0.03 0.03 490 490
X60 0.26 - 1.4 0.03 0.03 520 520
X65 0.26 - 1.45 0.03 0.03 535 535
X70 0.26 - 1.65 0.03 0.03 570 570
API 5L PSL2 B 0.22 0.45 1.2 0.025 0.015 415 415
X42 0.22 0.45 1.3 0.025 0.015 415 415
X46 0.22 0.45 1.4 0.025 0.015 435 435
X52 0.22 0.45 1.4 0.025 0.015 460 460
X56 0.22 0.45 1.4 0.025 0.015 490 490
X60 0.12 0.45 1.6 0.025 0.015 520 520
X65 0.12 0.45 1.6 0.025 0.015 535 535
X70 0.12 0.45 1.7 0.025 0.015 570 570
X80 0.12 0.45 1.85 0.025 0.015 625 625
ASTM A53 A 0.25 0.1 0.95 0.05 0.045 330 330
B 0.3 0.1 1.2 0.05 0.045 415 415
ASTM A252 1 - - - 0.05 - 345 345
2 - - - 0.05 - 414 414
3 - - - 0.05 - 455 455
EN10217-1 P195TR1 0.13 0.35 0.7 0.025 0.02 320 320
P195TR2 0.13 0.35 0.7 0.025 0.02 320 320
P235TR1 0.16 0.35 1.2 0.025 0.02 360 360
P235TR2 0.16 0.35 1.2 0.025 0.02 360 360
P265TR1 0.2 0.4 1.4 0.025 0.02 410 410
P265TR2 0.2 0.4 1.4 0.025 0.02 410 410
EN10217-2 P195GH 0.13 0.35 0.7 0.025 0.02 320 320
P235GH 0.16 0.35 1.2 0.025 0.02 360 360
P265GH 0.2 0.4 1.4 0.025 0.02 410 410
EN10217-5 P235GH 0.16 0.35 1.2 0.025 0.02 360 360
P265GH 0.2 0.4 1.4 0.025 0.02 410 410
EN10219-1 S235JRH 0.17 - 1.4 0.04 0.04 360 360
S275JOH 0.2 - 1.5 0.035 0.035 410 410
S275J2H 0.2 - 1.5 0.03 0.03 410 410
S355JOH 0.22 0.55 1.6 0.035 0.035 470 470
S355J2H 0.22 0.55 1.6 0.03 0.03 470 470
S355K2H 0.22 0.55 1.6 0.03 0.03 470 470




Pile Pipe API 18mm Spiral Submerged Arc Welded Pipe 2
