Product Details:
|
| Size: | 1/2" - 24" | Standard: | ANSI, ASME API5L, OCT, DIN And JIS, Etc. |
|---|---|---|---|
| Material: | Carbon Steel | Thickness: | SCH 20- SCH XXS |
| Shape: | Round | Technics: | Butt Welding |
| High Light: | WPB 50mm To 40mm Reducer,DN250 50mm To 40mm Reducer,Welding DN250 50mm To 40mm Reducer |
||

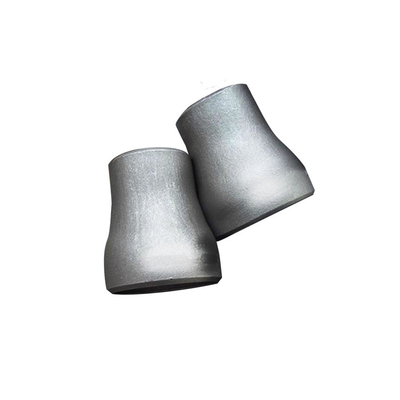

Reducer Concentric Class #1500, Material A234WPB, SCH160 Size DN250 x DN200 Carbon Steel Pipe Reducer
Hebei Shengtian professional production eccentric reducer and concentric reducer. We can also customize pipe fitting reducer according to the drawings provided by customers. You are welcome to send us your inquiry. We will send you the price as soon as possible.
| Carbon Steel Pipe Reducer Type | Seamless reducer; Welded reducer; Concentric reducer; Eccentric reducer; butt welding reducer; forged reducer; forging reducer; welding reducer; |
||
| Carbon Steel Pipe ReducerSize | OD. | 1/2'' ~ 48''(Seamless); 16'' ~96''(welded); DN15-DN2200 | |
| WTK. | Sch10SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH140,SCH160, XXS | ||
| Carbon Steel Pipe Reducer Standard | ASME B16.9-2007 ANSI/ASME B16.11 ASME B16.25-2007 ASME B16.5-2007 EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008 DIN2605-1-1992 DIN2605-2-1995 JIS B2311-2009 JIS B2312-2009 JIS B2313-2009 GB/T12459-2005 GB/T13401-2005 GB/T10752-2005 SH/T3408-1996 SH/T3409-1996 SY/T0609-2006 SY/T0518-2002 SY/T0510-1998 DL/T695-1999 GD2000 GD87-1101 HG/T21635-1987 HG/T21631-1990 , MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79; ISO 3419,ISO 5251,DIN 2616 |
||
| Pipe Reducer Material | Carbon steel | ASTM A234 WPB, ASTM A420 WPL6, WPL3; ASTM A105 WPB; ASTM A106; ASTM A350 LF2, DIN St37, St45.8, St52.4,St.35.8,St.35.8 ASTM A333 GR.6, ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42, API 5L GRB, X60, X65, X42,X52, |
|
| Stainless steel | ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L, A403 WP321 ASTM A182 F 304, 304L,316, 316L,904L |
||
| Alloy steel | ASTM A234 WP12, A234 WP11, A234 WP22, A234 WP5, A234 WP9 A420 WPL8, A420 WPL9 ASTM A335 P5, P9, P11, P12, P22, P91 ASTM A213 ASTM A182 F5,F11,F22,F91 |
||
| Carbon Steel Pipe Reducer Surface | Black painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE, etc. | ||
| Carbon Steel Pipe Reducer process | Push, Press, Forge, Cast, etc. | ||
| Carbon Steel Pipe Reducer Connection | welding | ||
| Carbon Steel Pipe Reducer Technical | Welded, forged | ||
| Carbon Steel Pipe Reducer MOQ | 10 pieces | ||
| Carbon Steel Pipe Reducer Packing | Wooden cases, pallets, nylon bags or according to the customers' requirements | ||
| Carbon Steel Pipe Reducer Delivery time | 7-35 days after your advance payment | ||
| Carbon Steel Pipe Reducer Payment terms | L/C, T/T, D/A, etc. | ||
| Carbon Steel Pipe Reducer Shipment | FOB Tianjin, CIF, CFR, etc | ||
| Carbon Steel Pipe Reducer Capacity | 1000000tons/year | ||
| Carbon Steel Pipe Reducer Advantages | 1. Reasonable price with excellent quality | ||
| 2. Abundant stock and prompt delivery | |||
| 3. Rich supply and export experience, sincere service | |||
| 4. Reliable forwarder, 2-hour away from port. | |||
| Main clients | Turkey, Italy, France, Spain, South Africa, Mexico, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on |
||
Concentric Carbon Steel Pipe Reducer:
Dimension (mm)
| Nominal Diameter | Outside Diameter | End to End | ||
| D1*D2 | ||||
| DN | NPS | Series A | Series B | H |
| 20×15 | 3/4×1/2 | 26.9×21.3 | 25×18 | 38 |
| 20×10 | 3/4×3/8 | 26.9×17.3 | 25×14 | 38 |
| 25×20 | 1×3/4 | 33.7×26.9 | 32×25 | 51 |
| 25×15 | 1×1/2 | 33.7×21.3 | 32×18 | 51 |
| 32×25 | 1.1/4×1 | 42.4×33.7 | 38×32 | 51 |
| 32×20 | 1.1/4×3/4 | 42.4×26.9 | 38×25 | 51 |
| 32×15 | 1.1/4×1/2 | 42.4×21.3 | 38×18 | 51 |
| 40×32 | 1.1/2×1.1/4 | 48.3×42.4 | 45×38 | 64 |
| 40×25 | 1.1/2×1 | 48.3×33.7 | 45×32 | 64 |
| 40×20 | 1.1/2×3/4 | 48.3×26.9 | 45×25 | 64 |
| 40×15 | 1.1/2×1/2 | 48.3×21.3 | 45×18 | 64 |
| 50×40 | 2×1.1/2 | 60.3×48.3 | 57×45 | 76 |
| 50×32 | 2×1.1/4 | 60.3×42.4 | 57×38 | 76 |
| 50×25 | 2×1 | 60.3×33.7 | 57×32 | 76 |
| 50×20 | 2×3/4 | 60.3×26.9 | 57×25 | 76 |
| 65×50 | 2.1/2×2 | 73.0×60.3 | 76×57 | 89 |
| 65×40 | 2.1/2×1.1/2 | 73.0×48.3 | 76×45 | 89 |
| 65×32 | 2.1/2×1.1/4 | 73.0×42.4 | 76×38 | 89 |
| 65×25 | 2.1/2×1 | 73.0×33.7 | 76×32 | 89 |
| 80×65 | 3×2.1/2 | 88.9×73.0 | 89×76 | 89 |
| 80×50 | 3×2 | 88.9×60.3 | 89×57 | 89 |
| 80×40 | 3×1.1/2 | 88.9×48.3 | 89×45 | 89 |
