Product Details:
|
| Technique: | Hot Rolled,cold Rolled,Casting,Forged,etc. | WT: | 4 -- 18mm |
|---|---|---|---|
| Length: | 1-8m | Ends: | Plain Or Beveled |
| Surface Treatment: | 2PE,3PE | ||
| High Light: | EN10217 Spiral Welded Stainless Steel Pipe,12 Inch Spiral Welded Stainless Steel Pipe,EN10217 SSAW Steel Pipe |
||

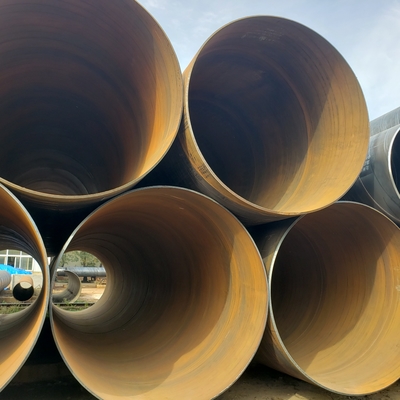

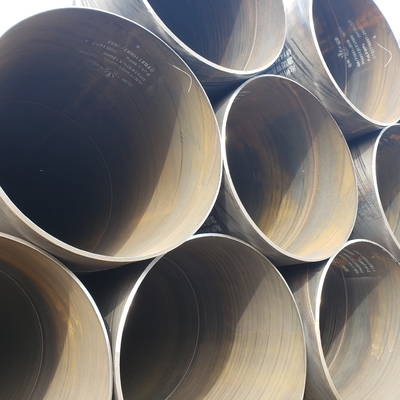

EN10217 12inch API 5L X42/X52/X60 Oil And Gas Spiral SSAW Steel Pipe
SSAW steel pipe production by submerged arc method is based on using tandem welding technique for joining inside and outside coil edges, which have been trimmed and beveled by carbide milling for high quality weld structure.
There are nine modernized product lines in our company with the yield capacity of 1000 thousands tons of B-X80 steel pipe of φ219-φ3200mm, WT5-30mm.
SSAW Steel Pipe Description
Size |
OD | 219---2220mm |
| WT | 4 -- 18mm | |
| Length | 5.8- 12m | |
| Steel material | 10#,20#,45#,A53A,A53B,A106Gr.A,A106Gr.B,A106A,A106B,ST52,ST358,16Mn, Q235, Q195, Q345, Q215, API 5L Gr.B,Gr.65,Gr.60,Gr.70, X42,X52,X60,X65,X70,X80,etc |
|
| Standard | BS EN 10296, BS EN 10025,BS EN 10297,BS6323, GB/T 13793-1992,GB/T 14291-2006, GB/T 3091-1993,API5L,SY/T5037,CJ/T3022,ASTM A252 | |
| Application | Used for structure,accessorize and constrction | |
| Ends | 1) Plain 2)Beveled 3) Thread | |
| Surface treatment | 1) Bared 2) Black Painted(varnish coating) 3) anti-rust oil 4) 3 PE, FBE | |
| Technique | spiral submerged arc welding (SSAW) | |
| Type | Welded | |
| Welded line pipe | Spiral | |
| Section shape | Round | |
| Applications | Used in conveying gas,water,and oil in both oil and gas industries. chemical fertilizer pipe/ natural gas/ petroleum transportation,etc. | |
| Package | 1) Bundle 2) In bulk 3)Bags 4)Clients' requirement | |
| Delivery | 1) Container 2) Bulk carrier | |
| Date of delivery | Within 7-25 days after received deposit | |
| Payment | T/T or L/C FOB (30% deposit the balance before shipment) CIF or CFR (30% deposit the balance against with the copy of B/L) |
|
| Others | 1) Special design available according to requirement 2) Anti corrosion and high temperture resistant with black paint 3) All the production |
|
Chemical Analysis and Mechanical Properties of SSAW Steel Pipe
| Standard | Grade | Chemical Composition(max)% | Mechanical Properties(min) | ||||
| C | Si | Mn | S | Tensile Strength(Mpa) | Yield Strength(Mpa) | ||
| API 5CT | h40 | - | - | - | 0.03 | 417 | 417 |
| J55 | - | - | - | 0.03 | 517 | 517 | |
| K55 | - | - | - | 0.3 | 655 | 655 | |
| API 5L PSL1 | A | 0.22 | - | 0.9 | 0.03 | 335 | 335 |
| B | 0.26 | - | 1.2 | 0.03 | 415 | 415 | |
| X42 | 0.26 | - | 1.3 | 0.03 | 415 | 415 | |
| X46 | 0.26 | - | 1.4 | 0.03 | 435 | 435 | |
| X52 | 0.26 | - | 1.4 | 0.03 | 460 | 460 | |
| X56 | 0.26 | - | 1.4 | 0.03 | 490 | 490 | |
| X60 | 0.26 | - | 1.4 | 0.03 | 520 | 520 | |
| X65 | 0.26 | - | 1.45 | 0.03 | 535 | 535 | |
| X70 | 0.26 | - | 1.65 | 0.03 | 570 | 570 | |
| API 5L PSL2 | B | 0.22 | 0.45 | 1.2 | 0.015 | 415 | 415 |
| X42 | 0.22 | 0.45 | 1.3 | 0.015 | 415 | 415 | |
| X46 | 0.22 | 0.45 | 1.4 | 0.015 | 435 | 435 | |
| X52 | 0.22 | 0.45 | 1.4 | 0.015 | 460 | 460 | |
| X56 | 0.22 | 0.45 | 1.4 | 0.015 | 490 | 490 | |
| X60 | 0.12 | 0.45 | 1.6 | 0.015 | 520 | 520 | |
| X65 | 0.12 | 0.45 | 1.6 | 0.015 | 535 | 535 | |
| X70 | 0.12 | 0.45 | 1.7 | 0.015 | 570 | 570 | |
| X80 | 0.12 | 0.45 | 1.85 | 0.015 | 625 | 625 | |
| ASTM A53 | A | 0.25 | 0.1 | 0.95 | 0.045 | 330 | 330 |
| B | 0.3 | 0.1 | 1.2 | 0.045 | 415 | 415 | |
| ASTM A252 | 1 | - | - | - | - | 345 | 345 |
| 2 | - | - | - | - | 414 | 414 | |
| 3 | - | - | - | - | 455 | 455 | |
| EN10217-1 | P195TR1 | 0.13 | 0.35 | 0.7 | 0.02 | 320 | 320 |
| P195TR2 | 0.13 | 0.35 | 0.7 | 0.02 | 320 | 320 | |
| P235TR1 | 0.16 | 0.35 | 1.2 | 0.02 | 360 | 360 | |
| P235TR2 | 0.16 | 0.35 | 1.2 | 0.02 | 360 | 360 | |
| P265TR1 | 0.2 | 0.4 | 1.4 | 0.02 | 410 | 410 | |
| P265TR2 | 0.2 | 0.4 | 1.4 | 0.02 | 410 | 410 | |
| EN10217-2 | P195GH | 0.13 | 0.35 | 0.7 | 0.02 | 320 | 320 |
| P235GH | 0.16 | 0.35 | 1.2 | 0.02 | 360 | 360 | |
| P265GH | 0.2 | 0.4 | 1.4 | 0.02 | 410 | 410 | |
| EN10217-5 | P235GH | 0.16 | 0.35 | 1.2 | 0.02 | 360 | 360 |
| P265GH | 0.2 | 0.4 | 1.4 | 0.02 | 410 | 410 | |
| EN10219-1 | S235JRH | 0.17 | - | 1.4 | 0.04 | 360 | 360 |
| S275JOH | 0.2 | - | 1.5 | 0.035 | 410 | 410 | |
| S275J2H | 0.2 | - | 1.5 | 0.03 | 410 | 410 | |
| S355JOH | 0.22 | 0.55 | 1.6 | 0.035 | 470 | 470 | |
| S355J2H | 0.22 | 0.55 | 1.6 | 0.03 | 470 | 470 | |
| S355K2H | 0.22 | 0.55 | 1.6 | 0.03 | 470 | 470 | |
