Product Details:
|
| Standard: | DIN | Product Name: | DIN Pn16 ANSI Sch40 Cast FF Carbon Steel Weld Neck Flange |
|---|---|---|---|
| Material: | Carbon Steel | Surface: | FF |
| Structure: | Round | Pressure Rating: | 150# |
| Schedule: | Sch 40 | Painting Color: | Transparent Paint |
| High Light: | pn16 well neck flange,sch40 well neck flange,ff flange welding neck ansi 150 |
||

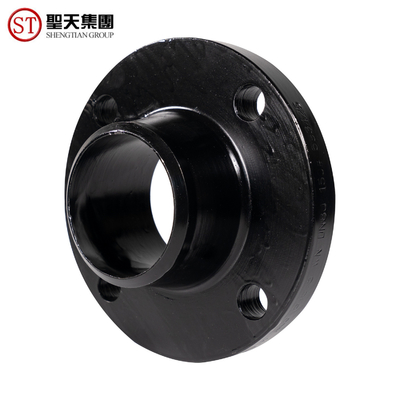

DIN Pn16 ANSI Sch40 Cast FF Carbon Steel Weld Neck Flange
Flange technical parameters:
| Type | weld neck flange, slip on flange, blind flange, tube sheet, threaded flange, socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange. |
| OD | 15mm-6000mm. 1/2"to 80".DN10-DN3600 |
| Pressure | 150#-3000#,PN0.6-PN400,5K-40K,API 2000-15000 |
| Standard | ANSI B16.5,ANSI B16.47 A/B, EN1092-1, SABA1123, JIS B2220, ALL DIN, ALL GOST, ALL UNI, AS2129, API 6A , BS4504, etc |
| Wall thickness | SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Stainless steel | A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321, A182F310S, A182F347H, 347L, 317L, A182F316Ti, A182 F317, 904L, 1.4301, 1.4307, 1.4401, 1.4571, 1.4541 etc. |
| Carbon steel | A105, A350 LF1,A350LF2,A350LF3, Q345, E24, A42CP,A48CP, A515 GR55, A515GR60, A515GR70, A516 GR60, A516 GR70, ST37.2,ST45.8, Q235, STEEL20, P235GH,P245GH, P250GH, P265GH, P280GH, P295GP etc. |
| Duplex steel | UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410, 1.4501, A182F51, A182F53 and etc. |
| Pipeline steel | A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc |
| Nickel alloy | inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H ,C22, C-276, Monel400, Alloy20 etc. |
| Cr-Mo alloy | A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc. |
| Application | Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform |
| Attention | ready stock,faster delivery time;available in all sizes,customized;high quality |
Product Display
We produce Weld Neck Flange in many sizes and dimensions. Check weld neck flange weight and weld neck flange dimensions before you procure for your project. Also check weld neck flange prices .Our most selling product is 4 inch class 150 weld neck flange. We also manufacture 8 inch weld neck flange, 6 Inch and 3 Inch weld neck flange in Class 150, CL 300 and Class 600. Check pressure rating, Sizes, dimensions and weight chart of weld neck flange. Weld neck flange manufacturers in China which are commonly used in petrochemical, pipe engineering, public services and water works.
