Product Details:
|
| Product Name: | ASTM A182 F304 Forged Stainless Steel Weld Neck Pipe Flanges | Pressure: | CL600 |
|---|---|---|---|
| Material: | CS | Specification: | 1/2" - 24" |
| Sealing Surface: | RF, FF | Standard: | ANSI, DIN, GB, JIS, ASME |
| Type: | Weld Neck Flange | Manufacturing Way: | Forging |
| High Light: | F304 Stainless Steel Weld Neck Flange,ASTM A182 stainless steel welded flange,Stainless Steel Weld Neck Flange CL600 |
||

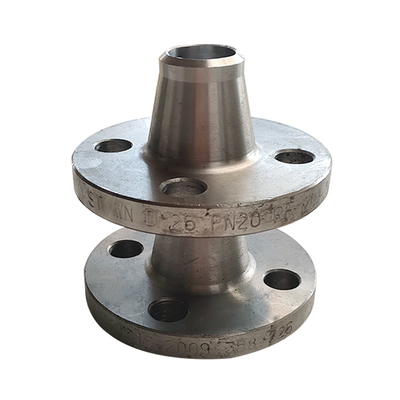

ASTM A182 F304 Forged Stainless Steel Weld Neck Pipe Flanges
The main products of our company include: Welding-neck flanges, slip-on flanges, blind flanges, threaded flanges, socket welding flanges,lap joint flanges and plate flanges etc., with specification from DN15-3000.
We can supply above mentioned standard flanges of DIN,ANSI, BS, JIS, UNI, NS and AS, GB, HB, JB etc. We can also manufacture special application flanges and forging parts that customers require.
Product Description
| Size | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Plate Fabricated Flanges |
| Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Welding Plate Flanges |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar Plate Blank Flanges |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar Square Plate Flange |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Types | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B |
| Raw Materials Certificate | |
| 100% Radiography Test Report | |
| Third Party Inspection Report, etc | |
| Plate Flange Technique | Forged, Heat treated and machined |
| Connect Type | FF,RF,RTJ |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Detailed Photos
Production Equipment
Product Process
Our Customers
